2009 Infiniti FX35, FX50 Service Manual

Comprehensive service and repair documentation for 2009 Infiniti FX35 and FX50 models. Covers all systems with detailed procedures and part numbers. PN 1000-FX35-09

4.7starstarstarstarstar_half(3)
Infiniti SUV manual preview - 2009 Infiniti FX35, FX50 Service Manual
$18.80 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Infiniti Models Covered & Key Technical Specifications

Models: Infiniti FX35, Infiniti FX50
Build Years: 2009
Technical Data:

  • Voltage at power seat switches (B459): Battery voltage
  • Tilt sensor signal value: Change between 1.2 V (top) and 3.4 V (bottom)
  • Telescopic sensor signal value: Change between 0.8 V (top) and 3.4 V (bottom)
  • Default seat slide amount for entry/exit assist: 40 mm
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
27729 / Patrick Boyd
File Size:
107.20 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
SUV
Last updated / verified
Sep 17, 2025

Infiniti Manual Features & Content Preview

Infiniti FX35 and FX50 2009 Automatic Drive Positioner Manual

  • Covers 2009 Infiniti FX35 and FX50 vehicles equipped with the Automatic Drive Positioner system, including seat, mirror, and steering column adjustment variants
  • Original OEM publication, Revision 2009 March
  • Contains 12 wiring schematics and 14 diagnostic flow charts for the driver seat control unit and automatic drive positioner systems
  • Delivered as a direct download the moment payment clears
  • Full-text search finds any part number in seconds
  • Suitable for printing individual sections for shop-floor use
  • Stored against your account so you can retrieve it after a hard-drive loss
  • OCR text layer lets you jump to a torque spec by keyword
  • This 2009 edition is the primary factory service documentation for the FX35 and FX50 Automatic Drive Positioner system, including initialization and memory storage procedures for the seat, steering, and mirror settings

Automatic Drive Positioner System Scope

The 2009 Infiniti FX35 and FX50 service manual documents the technical operation and diagnostic procedures for the Automatic Drive Positioner system. This publication provides detailed system diagrams, component location maps, and diagnostic workflows for the driver seat control unit, including UART communication logic, CAN bus status monitoring, and individual motor control for seat sliding, reclining, and lifting.

Specification and Diagnostic Data

Technical data within the 2009 Infiniti FX35 and FX50 manual includes voltage reference values for sensor signals, connector pinouts, and continuity test parameters. The sliding sensor pulse counts and voltage thresholds are documented for system initialization, with specific sensor operating values for the tilt and telescopic assemblies defined in the component diagnostic tables. The 2009 FX35/FX50 workshop documentation provides essential data for system calibration, such as the 40 mm default seat slide amount for entry/exit assist functions. Note: This page is a contents overview for the manual. It does not provide repair or diagnostic instructions. An official 2009 Infiniti OEM factory manual covering the FX35 and FX50, documenting automatic drive positioner electrical, diagnostic, and initialization specifications for the 2009 model year.

Manual FAQ, Purchase & Download Details

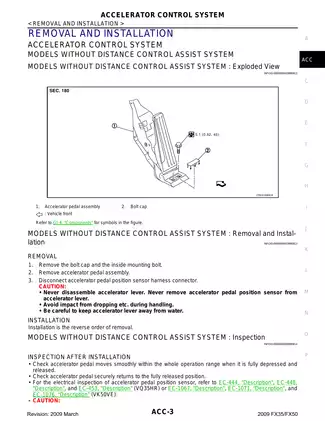

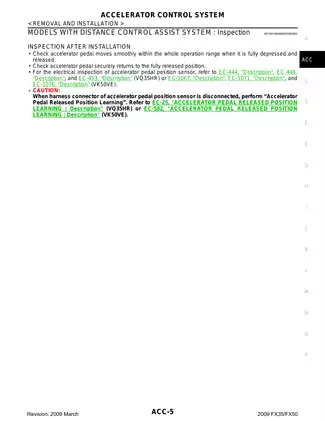

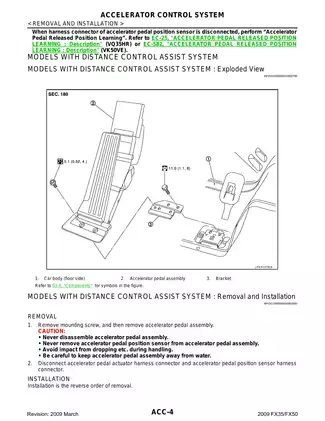

What content is included in the accelerator control system sections for the 2009 Infiniti FX35 and FX50 models? keyboard_arrow_down

Accelerator control system sections include exploded view diagrams, removal and installation procedures, and inspection guidelines for models both with and without distance control assist systems.

Is there information available regarding the automatic drive positioner system for this vehicle? keyboard_arrow_down

Manual includes detailed system descriptions, operation outlines, and component parts location diagrams for the automatic drive positioner system. It also covers diagnostic procedures and settings for related functions like seat synchronization and memory operation.

Are there specific service requirements or adjustment procedures referenced in the manual after battery disconnection? keyboard_arrow_down

Manual lists specific system initialization and memory storage procedures to perform after battery disconnection or control unit replacement. These sections outline methods for re-establishing functions for the driver seat, steering column, and door mirrors. Service data also includes tables detailing settings that reset when power is interrupted.
