Infiniti FX35/FX45 2005 Factory Service Manual (P/N SM5E-1S50U1)
4,793 Pages • ZIP Download: 43 Printable PDFs • 98.56 MB
Infiniti Models Covered & Key Technical Specifications
Models & Model Codes: FX35 (2WD: TLJALTN-EUA; AWD: TLJNLTN-EUA, TLJNLTN-ENA), FX45 (AWD: TPHNLTN-EUA, TPHNLTN-ENA)
Drivetrain Configurations: FX35 — VQ35DE engine, 2WD or AWD; FX45 — VK45DE engine, AWD; all listed variants — RE5R05A 5-speed automatic transmission. EUA = USA; ENA = Canada.
Model Year: 2005
VIN Variant Identification: 4th character: A = FX35/VQ35DE, B = FX45/VK45DE. 8th character: U = 2WD, W = AWD.
Diagnostic Serial Break: FX45/VK45DE P1148/P1168 confirmation procedures distinguish vehicles up to serial 400595 except serial 400590 from serial 400590 and vehicles from serial 400596 onward.
Key Technical Specifications:
-
Transmission Fluid Capacity: 10.3 liters (10-7/8 US qt. / 9-1/8 Imp qt.)
-
Drain Plug Torque: 34 N·m (3.5 kg-m, 25 ft-lb)
-
Level Gauge Bolt Torque: 5.1 N·m (0.52 kg-m, 45 in-lb)
-
Accelerator Pedal Mounting Nut Torque: 4.3–5.9 N·m (0.44–0.60 kg-m, 39–52 in-lb)
-
ICC Laser Sensor Detection Range: Approx. 390 ft. (120 m)
-
ICC Vehicle Speed Range: 25–90 MPH (40–144 km/h for Canadian models)
Infiniti Manual Features & Selected Content Preview
Infiniti factory service manual for the 2005 FX35/FX45, S50 Series, August 2004 edition, revised July 2005, P/N SM5E-1S50U1. Coverage includes U.S. FX35 2WD models, U.S./Canadian FX35 AWD models with the VQ35DE engine, and U.S./Canadian FX45 AWD models with the VK45DE engine.
PDF Search, Navigation and File Contents

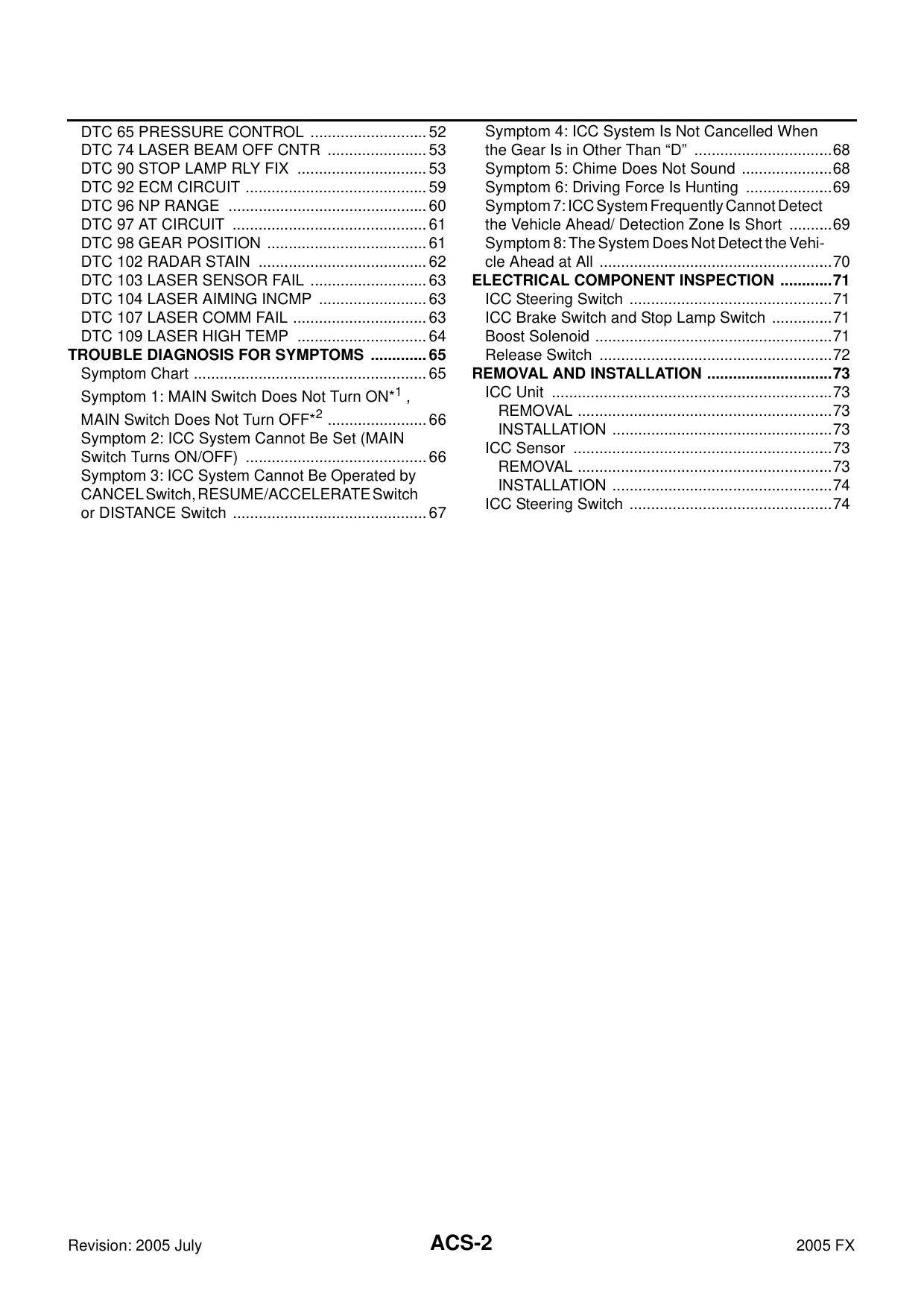

Text search and diagram detail: Service text is searchable throughout all 43 PDFs, although labels embedded in diagram images are outside text search. Embedded bookmarks are available in 34 files; ACS, BRC, RF, SC, SRS, TF, WT, WW and the foreword have none. Small connector numbers and wiring codes on dense schematics require zooming for comfortable reading.
The ZIP download contains 43 printable PDFs totaling 4,793 pages: 4,786 pages across 42 indexed section files, plus a seven-page foreword. The foreword includes a feedback form, a conversion-table page and three quick-reference pages labeled M35/M45, all included in that total. Those reference pages do not extend vehicle coverage; use the FX-specific chapters for service specifications.
Engine, Drivetrain and Vehicle-System Repair
These selected coverage highlights show the main repair areas rather than the complete contents; additional topics include exhaust-system service and wiper/washer fault diagnosis.
-
Engine repair: Step-by-step procedures for engine removal, timing-chain and camshaft work, cylinder-head and valve service, cylinder-block overhaul, inspection and assembly.
-
Engine management: OBD-II troubleshooting, CONSULT-II/GST diagnosis, fuel-pressure testing, ECM replacement registration, and accelerator-pedal, throttle-position and idle learning procedures.
-
Automatic transmission: RE5R05A fluid and cooler service, TCM/solenoid diagnosis, shift and lock-up checks, removal, specified internal repairs, reassembly and adjustment.
-
AWD and final drives: ETX13B transfer diagnosis and overhaul, F160A/R200 differential setup, propeller-shaft service, wheel hubs and drive-shaft repair.
-
Chassis and brakes: Steering and suspension repair, wheel alignment, brake hydraulics, caliper service, parking-brake adjustment, TPMS registration and VDC/TCS/ABS/EBD diagnosis.
-
Electrical and body systems: Equipment-specific CAN troubleshooting, BCM/IPDM diagnosis, Intelligent Key/NATS, lighting, restraints, climate control, body equipment, audio, navigation and rear entertainment.
-
Driver-assistance calibration: ICC running tests and laser-sensor aiming, LDW camera aiming, rear-view guideline correction, wiring diagrams, connector views and terminal-reference data.
This manual is suited to experienced technicians equipped for CONSULT-II diagnosis, precision measurements and the specialist tooling required by its overhaul and calibration procedures.
Engine Overhaul, Cooling and Lubrication
Engine instructions distinguish VQ35DE and VK45DE work, including separate VQ35DE removal arrangements for 2WD and AWD vehicles. Cylinder-head coverage reaches valve-guide replacement, valve-seat work and clearance adjustment; cylinder-block sections provide measurement methods and piston/bearing selection.
The timing-chain cautions explain how moving the crankshaft and camshafts separately after chain removal can cause valve-to-piston contact.
Maintenance schedules sit alongside cooling-system leak checks, overheating diagnosis, radiator and fan service, water-pump replacement and thermostat inspection. Lubrication chapters add oil-pressure testing, oil-cooler service and oil-pump disassembly.
Engine-control documentation supplies DTC workflows, ECM circuit diagrams, connector-terminal layouts, reference voltages and sensor graphs. EVAP/ORVR and PCV diagnosis supplement the fuel-system checks. VK45DE closed-loop-control testing follows the serial-specific P1148/P1168 procedures.
RE5R05A Repair Depth and Limits
Diagnosis includes line-pressure tests, road tests, TCM input/output checks and procedures with or without CONSULT-II. On-vehicle service covers removal and installation of the control-valve assembly with TCM and the associated fluid-temperature sensor.
Internal repair sections address the oil pump, input clutch, direct clutch, high/low reverse clutch and specified planetary components. Torque-converter inspection, end-play measurement and clearance adjustment support reassembly. The overhaul instructions expressly exclude disassembly of parts behind the drum support.
The 2WD/AWD cross-sections, clutch-and-band application chart, gear-by-gear power-flow diagrams, oil-channel drawings and shim/bearing/washer/snap-ring location views explain the transmission layout. Fluid specifications identify Matic J ATF, while cleanliness precautions address fibers that can interfere with transmission operation.
AWD Transfer and Differential Setup
ETX13B coverage combines CAN-linked AWD control, fail-safe diagnosis and transfer removal with internal inspection and assembly. Its power-transfer diagram connects the control description to the mechanical layout.
F160A front and R200 rear final-drive chapters cover tooth contact, backlash, preload, pinion height, runout, shim selection and seals. The rear-drive cautions explain how mishandling its collapsible pinion spacer can leave bearing preload incorrect.
Steering, Suspension and Brake Diagnosis
Chassis sections address steering gear and pump repair, suspension members, struts, shocks, links, stabilizers and alignment. Brake instructions extend through piping, master-cylinder and booster service, bleeding, rotor inspection and caliper overhaul.
The VDC/TCS/ABS hydraulic circuit supports brake-control diagnosis, steering-angle neutral adjustment and AWD deceleration-G-sensor calibration. TPMS procedures distinguish transmitter ID registration with and without activation tool J-45295.
CAN Networks, Electrical Equipment and Body Repair
Ten CAN system types are selected by engine, drivetrain and equipment, including navigation, ICC, Intelligent Key, LDW and automatic drive positioner. CONSULT-II support-monitor procedures, check sheets and CAN schematics connect ECM, TCM, AWD, ICC, BCM, combination-meter, ABS, seat-control, display and IPDM E/R diagnosis.
These cross-references support repairs involving several systems, such as an ICC fault accompanied by CAN codes or an AWD complaint involving transmission, transfer and ABS/VDC controls.
Starting and charging chapters provide circuit tests and starter/alternator service. Other electrical sections address Intelligent Key registration, NVIS/IVIS (NATS), xenon headlamp aiming and SRS fault tracing.
Body chapters cover locks, glass, roof and seats, plus body-alignment measurements and high-strength-steel repair precautions. Climate-control material includes R-134a system testing; audio/video sections distinguish base and Bose equipment, navigation self-diagnosis and rear entertainment.
ICC, LDW and Rear-View Calibration

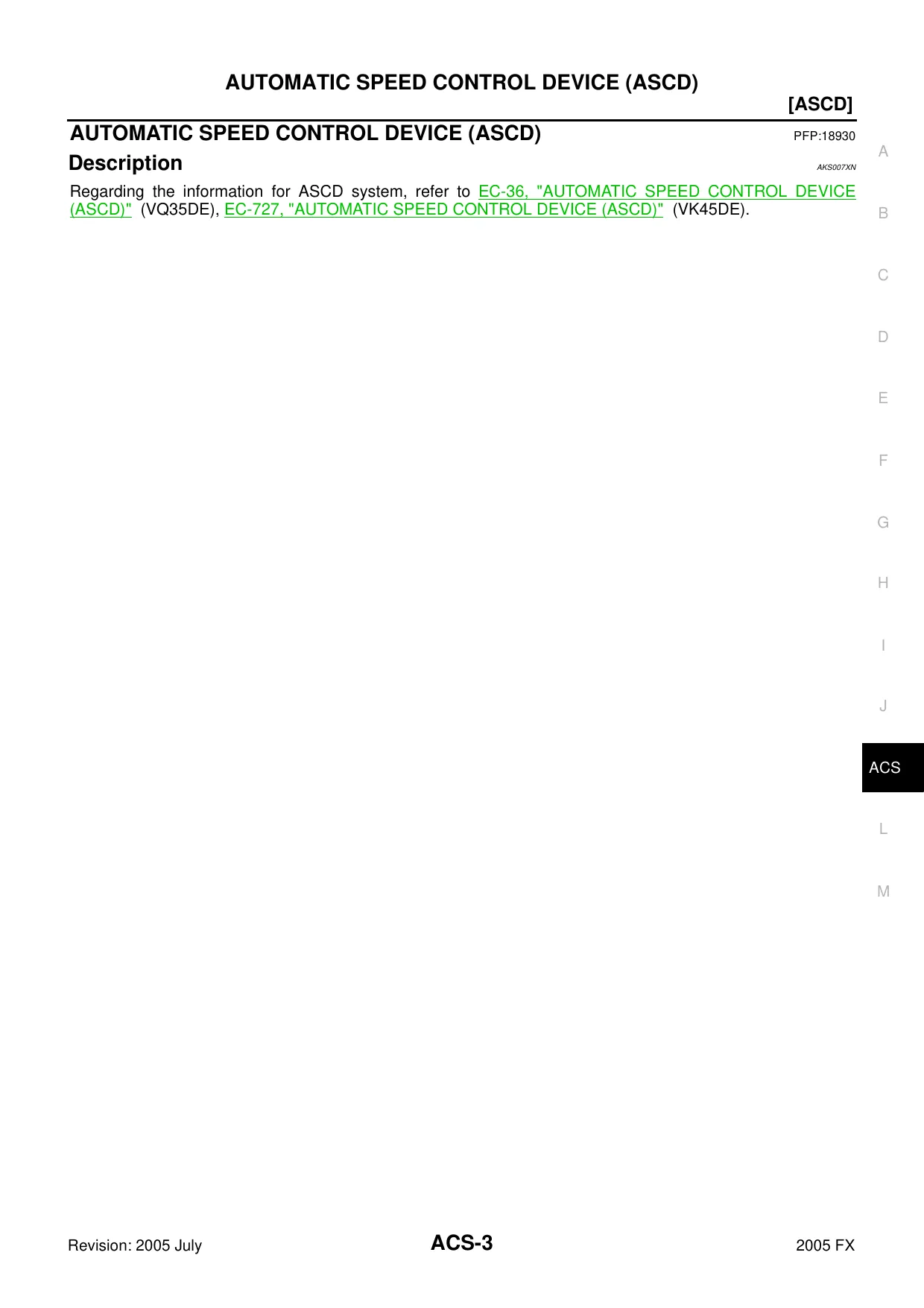

Cruise-control material distinguishes conventional ASCD from ICC distance-control and fixed-speed modes, including brake assist with preview. ICC documentation adds unit and laser-sensor terminal data, self-diagnosis, data-monitor and active-test functions, symptom workflows and component removal.

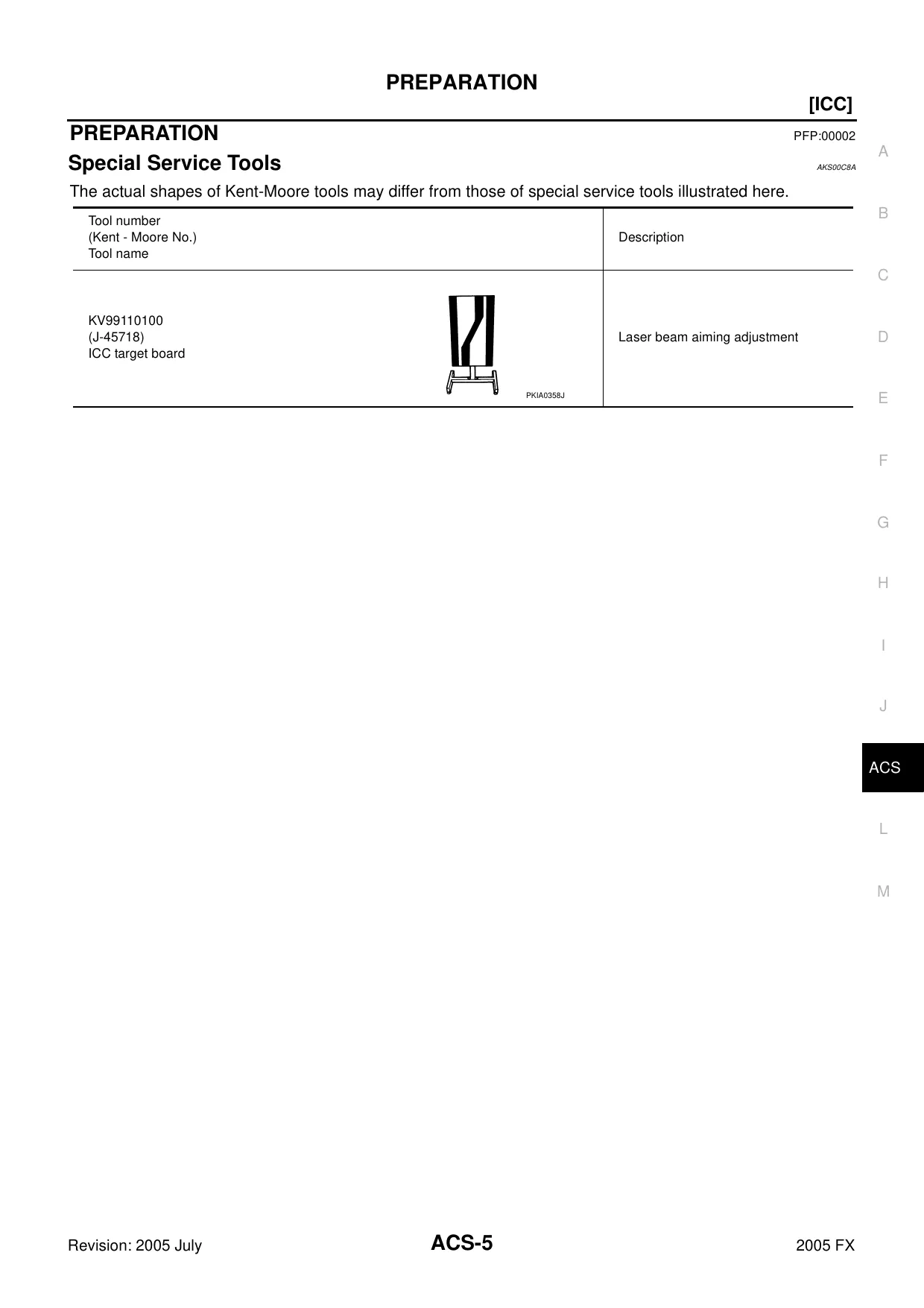

The target-board and laser-aiming layouts specify KV99110100 (J-45718). Separate Driver Information procedures cover LDW camera aiming and rear-view monitor guideline correction after relevant component work.

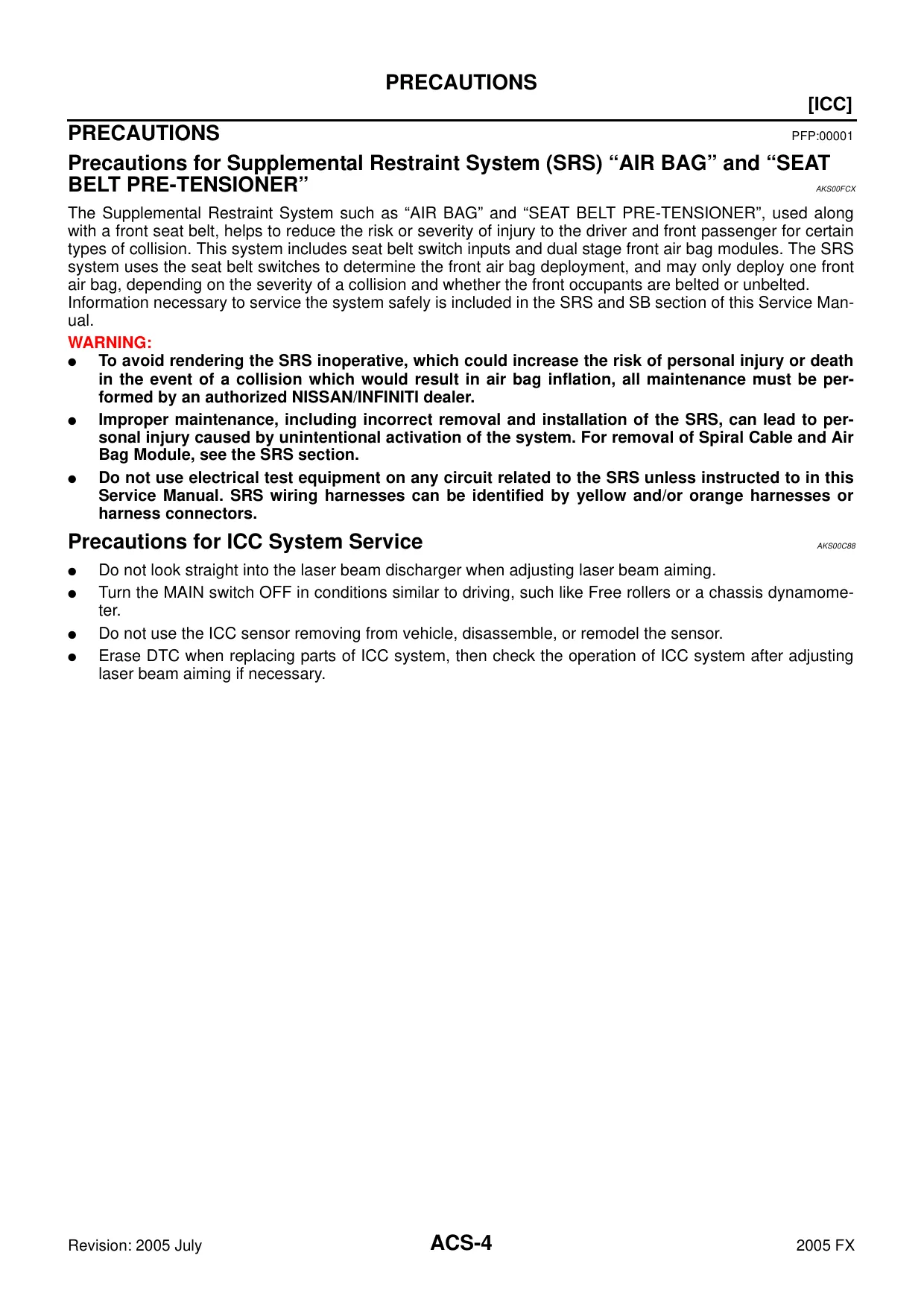

Safety note: SRS, brake-hydraulic, refrigerant and ICC/LDW work involves safety-critical systems and specialized equipment. The factory precautions assign SRS maintenance to an authorized Nissan/Infiniti dealer.
Selected Valve-Clearance and Differential Specifications
For both the VQ35DE and VK45DE, the valve-clearance tables specify cold intake clearance of 0.26–0.34 mm and cold exhaust clearance of 0.29–0.37 mm. Separate hot reference data accompany the inspection procedures.
For the F160A front final drive on AWD models with either engine, drive-gear-to-pinion backlash is specified at 0.10–0.15 mm. The associated setup tables distinguish backlash from bearing preload and provide selective washer and shim data.
