Yamaha TT600K (TT600) 1983–1984 Service Manual (P/N LIT-11616-03-55)
168 Pages • ZIP Download: Printable PDF • 10.30 MB
Yamaha Models Covered & Key Technical Specifications
Models & Model Codes: TT600K (34K), also called TT600
Model Year: 1983–1984
Serial Numbers: Frame and engine start at 34K-000101
-
Engine displacement: 595 cc
-
Engine oil capacity (total): 2.4 L (2.5 US qt)
-
Front fork oil capacity (per fork): 578 cm³ (19.5 US oz)
-
Front fork spring free length: 527 mm (20.7 in)
-
Valve clearance (intake, cold): 0.05–0.10 mm (0.002–0.004 in)
-
Valve clearance (exhaust, cold): 0.12–0.17 mm (0.005–0.007 in)
-
Spark plug tightening torque: 20 Nm (14 ft-lb)
-
Compression pressure (standard): 1,079 kPa (156 psi)
Yamaha Manual Features & Selected Content Preview

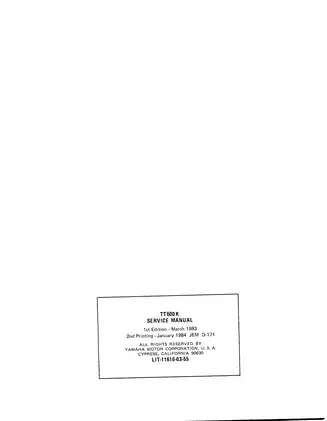

This Yamaha factory service manual covers the TT600K (34K), also referred to as TT600, with frame and engine serial numbers starting at 34K-000101. This is the January 1984 second printing of the March 1983 first edition (P/N LIT-11616-03-55). The cover also carries code 34K-28197-10.
PDF Layout and Wiring Diagram Readability

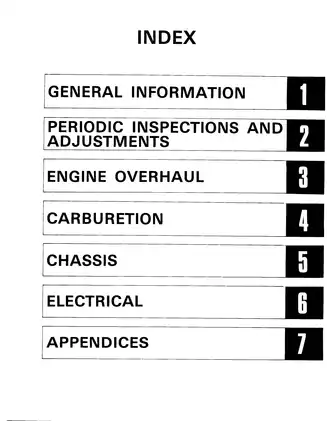

Search and diagram detail: Text search and embedded bookmarks are unavailable. The printed contents pages list sections by chapter, and the small wire labels and color codes are clear when zoomed in.
The ZIP contains one printable English-language PDF with 168 pages, including five unnumbered opening pages, nine chapter contents pages, and the 34-page appendix.
Engine Overhaul, YDIS Carburetion, and CDI Diagnosis
These are selected workshop topics from the manual. Other procedures cover air filter element service and control cable lubrication.
-
Periodic maintenance: Service intervals, cold valve clearance checks, dry-sump oil and filter service, compression testing, fuel cock inspection, and oil tank strainer cleaning.
-
Engine overhaul: Engine removal, teardown, inspection, repair, reassembly, and final adjustment, with in-frame access for clutch and AC magneto removal.
-
YDIS dual carburetors: Disassembly and inspection, fuel level checks, primary full-open stop adjustment, and secondary carburetor synchronization.
-
Wheels and chassis: Drum brake inspection, tire and tube service, chain and sprocket work, air-assisted fork overhaul, and steering-head and swingarm bearing service.
-
CDI ignition and AC lighting: Ignition timing checks, full-system spark testing, the TT600K wiring diagram, and separate ignition and lighting circuit diagrams.
-
Workshop specifications: Component torque tables, fluid capacities, inspection and wear limits, adjustment data, and unit conversion tables.

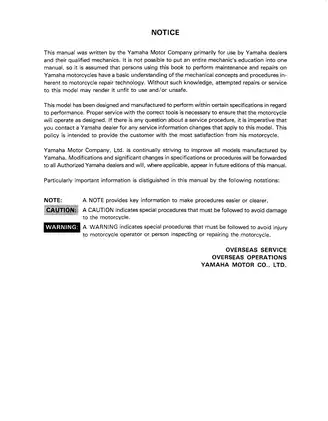

Yamaha wrote this manual primarily for its dealers and qualified mechanics. It assumes a working knowledge of motorcycle maintenance and repair.
Four-Valve Engine and Five-Speed Transmission
The air-cooled SOHC single uses dual intake and exhaust ports, a gear-driven balancer, and a separate dry-sump oil tank. Top-end inspection covers the cylinder head, valves, guides, seats, springs, rocker arms, camshaft, sprockets, cam chain, cylinder, piston, and rings.
Bottom-end work includes crankshaft and connecting rod inspection, the trochoid oil pump, primary drive, wet clutch, constant-mesh transmission, kick starter, bearings, and oil seals. Reassembly covers shift-fork placement, balancer gear indexing, clutch plate arrangement, cam timing, and chain tensioner installation. Final checks include kick-synchronous decompression cable adjustment, oil pressure, and leaks.
Yamaha cautions against forcing the crankcase halves apart or striking their gasket surfaces, which can damage the sealing faces.
Yamaha Duo Intake System
A sectional view shows how the cable-operated primary slide and vacuum-controlled secondary slide feed the two intake ports. The carburetion chapter explains how the coasting enricher limits afterburning on deceleration and covers piston, float valve, and diaphragm inspection.
Drum Brakes and Monocross Suspension
Wheel service includes front and rear wheel removal, brake shoe and drum measurements, and axle and bearing checks. The chassis chapter also covers relay arm inspection and lubrication. During fork overhaul, scoring the tube or reusing the oil seal can lead to leaks.
Rear shock service covers removal, inspection, spring preload, damping adjustment, and installation. Yamaha treats the nitrogen-charged cylinder and reservoir as sealed and specifies shock replacement if the rod is damaged or oil is leaking. The manual gives precautions for the pressurized shock, running-engine tests, and supporting the motorcycle during wheel and suspension work.
Ignition and Lighting Fault Finding
For misfires or weak spark, the full-system spark test helps determine whether to move on to individual component checks. Those include CDI tester tables, resistance checks for the ignition coil, pickup coil, charge coil, and plug cap, plus an engine-stop switch continuity test. The lighting section covers headlight and taillight fault checks, lighting-coil resistance, and AC output with and without voltage regulation.
Special Tools and Reference Drawings
Yamaha lists the YU-08030-1 oil pressure gauge adapter, YU-01135 crankcase separation tool, and YU-90050 crankshaft installing set. Other references include the YM-01312 fuel level gauge, YM-33962 fork cylinder holder, YU-03112 pocket tester, and YU-33260 electro tester.
The appendix includes the camshaft and chain exploded view, the Power Flow Chart, four lubrication charts, and three cable routing diagrams.
YDIS Fuel Level and Float Height Examples
The fuel level check specifies 7.0 ± 1 mm below the carburetor body edge, with the carburetor upright and the engine stopped after a short run.
The separate float height reference is 26.0 ± 2.5 mm from the float bowl gasket seat to the top of the float. That measurement is taken with the gasket removed and the float just resting against the spring-loaded inlet needle.
