Triumph TT600 & Speed Four 2002–2006 Service & Repair Manual

Triumph factory service manual for the TT600 and Speed Four, with scheduled maintenance, internal-engine repair, chassis service, and electrical diagnosis. This copy has missing procedure and wiring pages; the affected areas are identified below.

PDF Search Limits and Diagram Readability

Finding information: The technical pages do not support PDF text search, and there are no embedded bookmarks. Printed section contents and an alphabetical index provide navigation. Small wiring labels require enlargement; some pages carry editor/evaluation markings and dark edge shadows.

One printable PDF in English, 357 pages total, including one front-cover page and one duplicated rear-light illustration.

Engine, EFI, and Chassis Workshop Coverage

The following selected contents show the main workshop areas rather than a complete table of contents. Additional topics include fuel requirements and exhaust-system removal and installation.

• Engine repair: Camshaft and cylinder-head service, cam-chain timing, valve-clearance and shim adjustment, crankcase separation, crankshaft/rod/piston inspection, and cylinder-liner removal and installation.

• Clutch and gearbox: Cable setup, clutch-pack inspection, input/output shaft overhaul, selector shaft, fork and drum service, and sprag-clutch removal and inspection.

• EFI diagnostics: Stored DTCs, freeze-frame and live data, actuator tests, adaptive settings, tune updates, fuel-pressure testing, throttle-body balancing, and injector service.

• Cooling and lubrication: Coolant replacement, radiator/fan and water-pump work, thermostat testing, sump and oil-pump service, and heat-exchanger repair.

• Suspension and brakes: Swingarm and drag-link service, chain inspection/adjustment, fork disassembly/assembly, headstock-bearing adjustment, brake bleeding, caliper overhaul, and master-cylinder procedures.

• Electrical reference: Model-specific engine-management, starting/charging and lighting diagrams, connector-pin layouts, fault-isolation charts, torque tables, service limits, and special-tool references.

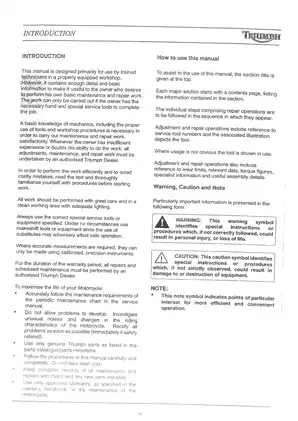

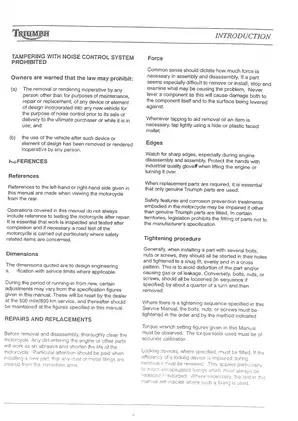

Written primarily for trained technicians in a properly equipped workshop, the manual also supports owners doing basic maintenance and repair with mechanical knowledge and the specified hand and service tools.

Engine, Clutch, and Gearbox Repair

Timing and bearings: TT600 valve timing is separated at VIN 115673/115674, while Speed Four data is listed independently. Main-bearing charts distinguish engines through 104342, 104343–181049, and 181050 onward, helping match the bearing-selection data to the engine before internal repair.

Cylinder Head and Valves and Camshaft and Camshaft Drive exploded views accompany the head procedures. Lower-engine checks include piston and ring measurement, crankshaft-journal inspection, and bearing selection with standard dimensions and wear limits.

Engine coverage limits: Engine removal is documented, but the installation procedure starts partway through because printed page 5.7 is missing. Valve and stem-seal service is covered; the cylinder-head description states that valve seats and guides cannot be replaced.

Assembly cautions: Numbered camshaft caps are noninterchangeable; incorrect release or timing can crack caps or cause valve contact. The crankcase chapter warns against levering the halves apart and explains its fastener sequences.

Clutch assembly details identify the unique outer friction disc, inner-drum/inner-plate alignment marks, and outer-drum drive engagement. Gearbox instructions distinguish selector-fork orientation and the arrangement of gears, bearings, and shaft components.

Fuel Injection and Diagnostic Access

Fault tracing: Pinpoint tables cover crankshaft-position, throttle-position, intake-air and coolant-temperature sensors, injectors, and ignition coils. Separate charts address idle-air control, purge valve, fuel pump, cooling fan, instruments, and the low-fuel circuit, with ECM connector-pin numbering for wiring checks.

The non-electrical fault table connects symptoms such as idle cutout and poor throttle response with fuel pressure, intake leaks, and throttle balance. This supports checking mechanical causes alongside stored electrical faults.

Fuel-system procedures extend to the tank, pump, filter, level sender, fuel rail, pressure regulator, throttle cable, airbox, and air filter. Idle-CO guidance distinguishes market equipment and German engine-number changes; California evaporative controls and secondary-air reed-valve service are also included.

Diagnostic access: The Triumph tool requires a valid dealer number, and tune downloads require manufacturer instructions and a password. Idle-CO adjustment uses an exhaust-gas analyzer; throttle balancing calls for vacuum-test equipment.

Electrical Circuits and Missing Wiring Pages

Battery removal/refitting, fuses, relays, model-specific headlights, rear/indicator lights, alternator, starter motor, instruments, and road-speed-sensor testing are covered. The battery-charging page, printed 15.8, is absent; a duplicate of the rear-light illustration on 15.6 appears instead.

Wiring limits: Starting/charging diagrams separate TT600 machines through VIN 161332 from TT600/Speed Four machines from VIN 161333. Engine-management and lighting drawings are present for both models, but the Speed Four engine-management legend on printed page 8.16 is missing.

The complete-system TT600 and Speed Four schematics on printed pages 15.29 and 15.31 are absent. Their component and wire-color legends remain, so this copy does not provide the complete-system wiring drawings.

Cooling, Suspension, Brakes, and Tools

Separate model-specific Cooling System exploded views accompany pressure-cap, radiator/fan, water-pump, and thermostat work. Lubrication pages add the oil-pump drive, pressure-warning switch, and Oil Circuit flow diagram.

Rear-hub, suspension-unit, drag-link, and final-drive material includes bearing and seal inspection. Fork oil-level charts distinguish model-specific fork positioning; the front-end section also covers headstock-bearing checks.

Brake coverage: Fluid renewal, pads, discs, and front/rear caliper disassembly are included. Rear master-cylinder disassembly and assembly are present; the front master-cylinder overhaul page, printed 12.14, is missing, although removal and installation remain.

Frame inspection, fairings, cockpit parts, seat panels, and footrest mountings have their own bodywork coverage.

Tool references include the T3880048 fuel-pressure gauge, T3880315/T3880316 liner extractor and adapter, T3880360 clutch holder, T3880365 alternator-rotor puller, and T3880380 engine-mounting wrench.

Work involving pressurized fuel, hot coolant, brake hydraulics, high-current circuits, or supported engine and chassis assemblies carries real risk. Follow the manual's cautions and use qualified help for advanced internal-engine, fuel, brake, and electrical repair.

Examples of Valve-Clearance and Sensor-Test Data

Valve inspection: Cold-engine clearances for both models are 0.15–0.25 mm inlet and 0.20–0.30 mm exhaust, alongside shim-selection guidance.

Coolant-sensor diagnosis: The pinpoint table gives 2.35–2.65 kΩ for a cold engine at 20°C ambient, linking temperature-dependent resistance data with its circuit checks.
