Yamaha Riva 200 XC200T/XC200ZT 1987–1991 Service & Repair Manual (P/N LIT-11616-05-27)

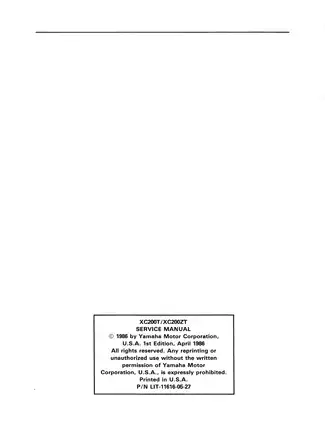

Yamaha’s factory service manual covers the Riva 200 XC200T (1XX) and XC200ZT (1YG). This is the April 1986 first edition, P/N LIT-11616-05-27, also carrying 1XX-28197-10 on the original cover.

PDF Search, Bookmarks, and Wiring Detail

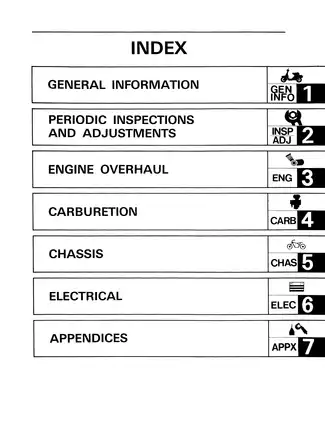

Finding text and circuit details: Text search works across the main chapters, but many diagram labels are not searchable. Chapter and subsection bookmarks are included; the external main-index link points to a file outside this download. Small wiring labels require zooming, and shaded areas of the system-specific circuit diagrams have lower contrast.

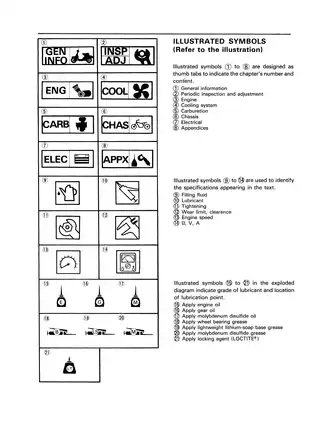

The ZIP download contains one printable, 250-page English PDF, including the original cover, four introductory pages, eight blank or memo pages, and the final wide-format wiring diagram.

Engine Overhaul, Automatic Drive, and Electrical Fault Tracing

The following selected coverage highlights outline the main workshop sections. Other documented topics include fuel-cock cleaning and headlight-beam adjustment.

• Engine overhaul: Step-by-step removal, disassembly, inspection, repair, reassembly, and remounting procedures for the cylinder head, valve train, piston, crankshaft, connecting rod, and balancer.

• Automatic-drive repair: Primary and secondary sheaves, dry centrifugal clutch, V-belt, starter clutch, camshaft, and final-drive transmission, with bearing, seal, and assembly checks.

• Carburetor and cold-start service: Carburetor removal and disassembly, float and fuel-level adjustment, automatic-choke operation and testing, fuel-flow diagrams, and emissions-canister inspection.

• Chassis work: Front and rear wheels and drum brakes, wheel bearings and seals, speedometer drive, bottom-link front fork, steering head, and rear-shock service.

• Electrical diagnosis: Full wiring diagram and system-specific troubleshooting for electric starting, charging, TCI ignition, lighting, signals, accessories, fuel/oil indicators, and the automatic choke.

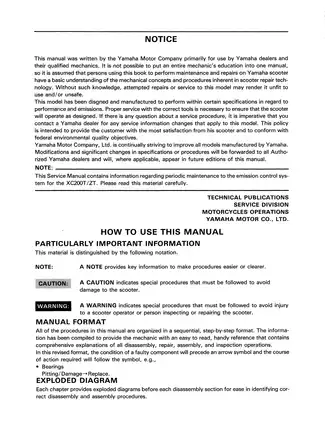

Yamaha wrote this publication primarily for dealers and qualified mechanics. It assumes an understanding of mechanical concepts and scooter-repair procedures, together with the proper shop tools.

Model Identification and Variant Details

Starting VINs are XC200T JYA1XX00*HA000101 and XC200ZT JYA1YG00*HA000101. Starting engine numbers are 1XX-000101 and 1YG-000101, respectively.

XC200ZT-only material addresses footrest-mat removal and the clock circuit. Cable-routing plates distinguish the California 1XX evaporative-canister installation from the non-California hose layout.

Engine Repair and Lubrication

The mechanical coverage is for the air-cooled, four-stroke OHV single with wet-sump pressure lubrication and electric start. Periodic service sections document engine and transmission oil work, oil-pressure inspection, compression testing, V-belt inspection, ignition-timing checks, and emissions-related maintenance.

Cylinder-head repair includes rocker arms and shafts, pushrods, valve-guide replacement and reaming, valve-seat cutting and lapping, spring inspection, and sealing checks. Cylinder and piston inspection covers bore, taper, ring clearance, and piston-pin condition.

Lower-end procedures address the trochoid oil pump, balancer, crankshaft runout, plain main-bearing selection, connecting-rod bearing clearance checks with Plastigage, and color-coded bearing selection. Exploded assembly views accompany the overhaul sections, which carry through final engine mounting and cable/brake adjustment.

The in-frame service list identifies components that can be removed without taking out the engine, helping plan the extent of disassembly for drive, starter, oil-pump, and transmission work.

Sheaves, Clutch, and Carburetor Service

Drive-system service covers spring compression, torque-cam and guide-pin inspection, clutch-shoe and housing wear checks, V-belt condition, and reassembly.

Carburetor coverage identifies the vacuum piston, coasting enricher, starter plungers, jets, float, and needle valve. Section views, slow/main metering fuel-flow diagrams, and automatic-choke operating diagrams explain how these circuits relate. Throttle-valve and throttle-shaft disassembly are excluded from the carburetor procedures.

Wheels, Brakes, and Suspension

Wheel procedures include drum-brake disassembly, front wheel-bearing and oil-seal replacement, speedometer-gear service, runout and balancing checks, and installation.

The bottom-link fork section adds handlebar removal, steering-bearing inspection, shock inspection, compression and tension arm inspection, steering-head adjustment, and reassembly. Rear-shock coverage addresses removal, inspection, assembly replacement, and spring-preload adjustment.

Electrical Tests and Circuit Diagrams

Electrical flowcharts address the starter and cut-off relays, stator and regulator/rectifier, pickup and ignition coils, headlight and taillight circuits, turn signals, brake lights, horn, fuel sender, oil-level switch, and XC200ZT clock.

The circuit diagrams and component tests support tracing faults from the wiring and switches to the affected relay, sender, or ignition component, rather than treating every symptom as a failed assembly.

Diagram support includes the XC200T/XC200ZT Wiring Diagram and dedicated starting, charging, ignition, lighting, signal, accessory, and auto-choke circuits. The appendices add an engine-lubrication diagram and detailed cable-routing plates.

Factory References, Tools, and Service Cautions

The appendices collect component-specific torque tables, fluid types and capacities, adjustment data, clearances, wear limits, electrical test values, ignition specifications, brake and suspension data, unit definitions, and conversion tables.

The special-tool section identifies the Inductive Timing Light YU-33277, Fuel Level Gauge YM-01312-A, and Flywheel Magneto Puller YM-01080. Sheave-service equipment includes YS-28891/YM-33285-1; chassis and electrical references include steering ring-nut wrenches YU-01268/YU-33975 and Electro Tester YU-33260.

Manual-specific cautions flag an unfilled hydraulic valve lifter as a source of excessive noise and possible lifter damage. Incorrect battery-breather routing can expose the frame to electrolyte and cause structural or cosmetic damage.

Fuel handling, battery charging, supported-wheel work, and live electrical tests require the stated shop precautions, ventilation, and factory procedures.

A Preview of Carburetor Adjustment Data

The float-height specification is 26–28 mm, measured with the float arm resting on the needle valve without compressing it.

The fuel-level specification is 4.5–5.5 mm below the carburetor-body edge. The adjustment section distinguishes this running fuel-level check from the float-height measurement used during assembly.
