2001–2006 Suzuki GSX-R1000 Service Manual (P/N 99500-39211-01E)
1,428 Pages • 138.69 MB • Printable PDFs (ZIP Download)
Suzuki Models Covered & Key Technical Specifications
Models: GSX-R1000
Sub-models / Variants: GSX-R1000K3, GSX-R1000UF
Model Years: 2001–2006 (2001, 2002, 2003, 2004, 2005, 2006)
Technical Data:
-
Engine: Four-stroke, liquid-cooled, DOHC, 4-cylinder
-
Displacement: 988 cm3
-
Bore x Stroke: 73.0 mm x 59.0 mm
-
Compression Ratio: 12.0:1
-
Transmission: 6-speed constant mesh
-
Final Reduction Ratio: 2.470
-
Idle Speed: 1150 ± 100 r/min
-
Engine Oil Capacity (with filter change): 3300 ml
-
Front Fork Oil Capacity: 509 ml (each leg)
-
Spark Plug: NGK CR9E or DENSO U27ESR-N
-
Main Fuse: 30 A
-
Coolant Capacity: 2400 ml

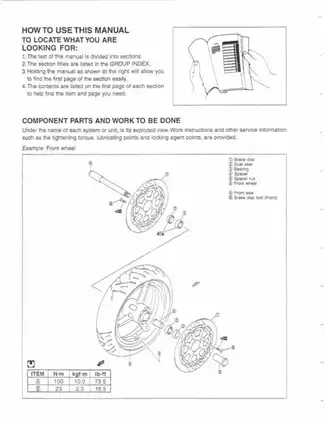

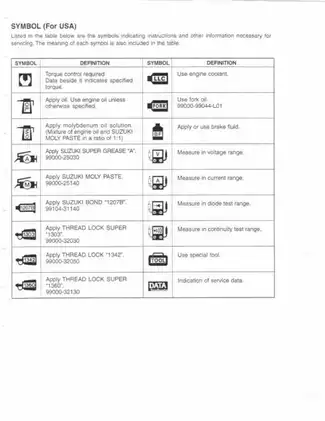

Suzuki Manual Features & Content Preview
- Internal model identification: The manuals explicitly identify the Suzuki GSX-R1000K1, K2, K3, and K5 factory model editions. The K1 material lists E-19 GSX-R1000UD and GSX-R1000UF versions; K3 and K5 list the E-19 GSX-R1000UF. No separately labeled K4 or K6 update chapter is present.
- 1,428 English-language PDF pages across 29 files: 444 pages for the K1/K2 volume, 460 pages for the K3 section set, and 524 pages for the K5 volume. Factory document identification includes 99500-39211-01E on the K1/K2 cover and K5 Part No. 99500-39270-01E.
- Engine and drivetrain repair: Documents engine removal and installation, full disassembly and reassembly, cylinder-head and valve service, cam timing, clutch and transmission work, piston and cylinder inspection, lubrication-system service, and crankshaft, connecting-rod, balancer-shaft, and bearing-selection procedures.
- Fuel-injection and exhaust diagnosis: Covers dealer-mode self-diagnosis, K5 Suzuki Diagnosis System (SDS) testing and DTC resets, sensor and injector circuit fault isolation, fuel-pump pressure testing, throttle-body service, synchronization, TPS/fast-idle adjustment, and EXCV/EXCVA inspection and cable adjustment.
- Chassis and electrical procedures: Includes fork overhaul, steering-stem and steering-damper service, rear-suspension work, wheel and drive-chain repair, brake caliper and master-cylinder service, plus charging, starting, ignition-interlock, meter, lighting, relay, battery, and applicable K5 immobilizer diagnosis.
- Wiring and visual references: Provides FI system wiring, ECM terminal views, cooling and engine-lubrication charts, PAIR diagrams and hose routing, exploded assembly views, wire/cable/hose routing drawings, and full market-specific wiring schematics.
- Factory data and tools: Supplies maintenance schedules, torque tables, fluid specifications, service limits, shim-selection charts, troubleshooting tables, electrical test values, and numbered Suzuki special-tool listings.

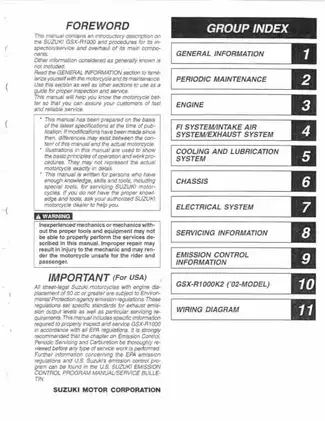

Internal Documentation Structure
This is a three-volume workshop set, not one uniform six-year book. The K1 volume supplies the base procedures. Its K2 chapter records only the 2002 specifications and service operations that changed—clutch details, cam-chain tension-adjuster cap fastening, the fuel-pump/fuel-level unit, fast idle, front axle, torque link, and revised service data—then refers the technician to K1 Chapters 1 through 9 for work that did not change.
The K3 and K5 volumes carry full system-by-system repair sections. Their specifications also show a meaningful build break: K1/K2/K3 use the 988 cm³ engine configuration, while K5 moves to 999 cm³ and adds secondary fuel injectors, SDS-supported diagnosis, and market-dependent immobilizer coverage. For European K5 machines, the country-code table separates standard E-19 frames beginning JS1B6111100100001 from GSX-R1000UF frames beginning JS1B6211100100001, helping confirm the correct variant before parts or electrical procedures are selected.
Repair, Diagnostic, and Factory Reference Coverage
Engine coverage runs from removal through internal inspection and final reassembly. Dedicated sections address the cylinder head, valves, camshafts, cam chain, pistons and rings, crankcase, crankshaft and connecting rods, balancer shaft, starter clutch, generator, water pump, oil pump and regulator, gearshift system, transmission, and clutch. Valve-clearance inspection, intake and exhaust tappet-shim charts, compression and oil-pressure testing, journal and thrust-bearing selection, wear limits, lubrication points, and assembly torque tables support accurate repair work without reducing the manual to generic tune-up information.
The fuel-injection chapters identify component locations, ECM terminals, wiring paths, fail-safe behavior, malfunction codes, and circuit checks for the major engine-management sensors, injectors, fuel-pump relay, ignition system, secondary-throttle system, EXCV actuator, PAIR control, and cooling-fan relay. K5 adds SDS “show data,” stored-DTC review, and reset procedures; K1 and K3 use dealer mode through their specified mode-selection switches. Fuel delivery, throttle-body disassembly, injector service, throttle synchronization, TPS setting, fast-idle adjustment, and exhaust-control work are treated as distinct factory procedures.
The manuals also flag real assembly traps. A dropped cam chain can become caught between the crankcase and cam-drive sprocket, and unevenly drawing down the camshaft journal holders can damage the head or holder thrust surfaces. In the exhaust-control section, turning the EXCVA pulley with a wrench can damage the actuator’s internal gears.
Chassis repair coverage includes bodywork removal, wheels, fork disassembly and oil-level setup, steering-head inspection and adjustment, rear shock and linkage service, suspension settings, brake-fluid replacement, caliper and master-cylinder disassembly, disc inspection, tire fitting, wheel balancing, and drive-chain cutting and joining. Electrical sections add charging-output checks, starter-motor overhaul, relay and switch testing, ignition and side-stand interlock diagnosis, combination-meter and lighting inspection, and battery service.
The special-tool indexes identify factory tools by number, including the 09913-13121 vacuum balancer gauge, 09940-40211/09940-40220 fuel-pressure adapters, K1 09930-82710 and K3/K5 09930-82720 mode-selection switches, and the K5 09904-41010 SDS set.
For major engine, fuel, brake, or chassis work, secure the motorcycle on a stable stand or lift, isolate battery power where specified, and keep ignition sources away from open fuel-system work.
