Ski-Doo 2001 Snowmobile Shop Manual Set, Volumes 1–3 (P/N 484 200 022)

950 Pages • 1 Printable PDF (English) • Download

4.7starstarstarstarstar_half(3)
$17.59 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Ski-Doo Models Covered & Key Technical Specifications

Models & Model Codes:

Skandic LT — 1816 (Canada), 1817 (U.S.)

Skandic WT — 1814 (Canada), 1815 (U.S.)

Skandic SWT — 1812 (Canada), 1813 (U.S.)

Skandic WT LC — 1810 (Canada), 1811 (U.S.)

Touring Fan 380 — 1807 (Canada), 1808 (U.S.)

Touring Fan 500 — 1804 (Canada), 1805 (U.S.)

Touring Cargo 380 — 1854 (Canada), 1809 (Europe)

Touring Cargo 500 — 1852 (Canada), 1806 (Europe)

Formula Deluxe Fan 380 — 1784 (Canada), 1785 (U.S.)

Formula Deluxe Fan 500 — 1782 (Canada), 1783 (U.S.)

MX Z Fan 380 — 1721 (Canada), 1722 (U.S.), 1835 (Europe)

MX Z Fan 440 — 1821 (Canada), 1822 (U.S.)

MX Z Fan 500 — 1719 (Canada), 1720 (U.S.)

Summit Fan 500 — 1762 (Canada), 1763 (U.S.)

Grand Touring SE — Black: 1786 (Canada/U.S.), 1787 (Europe). Blue: 1788 (Canada/U.S.)

Mach Z STD — Black: 1656 (Canada), 1657 (U.S.). Yellow: 1658 (Canada), 1659 (U.S.), 1660 (Europe).

Mach Z Tech Plus — Yellow: 1661 (Canada), 1662 (U.S.). Black: 1819 (Canada), 1820 (U.S.).

Grand Touring STD 500 — Black: 1799 (Canada), 1800 (U.S.), 1801 (Europe). Cloud: 1802 (Canada), 1803 (U.S.).

Grand Touring STD 600 — Black: 1794 (Canada), 1795 (U.S.), 1796 (Europe). Cloud: 1797 (Canada), 1798 (U.S.).

Grand Touring GS 700 — Black: 1789 (Canada), 1790 (U.S.), 1791 (Europe). Cloud: 1792 (Canada), 1793 (U.S.).

Formula Deluxe STD 500 — Red: 1778 (Canada), 1779 (U.S.). Cloud: 1780 (Canada), 1781 (U.S.).

Formula Deluxe STD 600 — Red: 1773 (Canada), 1774 (U.S.). Cloud: 1775 (Canada), 1776 (U.S.), 1777 (Europe).

Formula Deluxe GS 700 — Red: 1768 (Canada), 1769 (U.S.). Cloud: 1770 (Canada), 1771 (U.S.), 1772 (Europe).

Formula Deluxe GSE 600 — Red: 1831 (Canada), 1832 (U.S.). Cloud: 1833 (Canada), 1834 (U.S.).

Formula Deluxe GSE 700 — Red: 1764 (Canada), 1765 (U.S.). Cloud: 1766 (Canada), 1767 (U.S.).

MX Z STD 500 — Yellow: 1710 (Canada), 1711 (U.S.), 1712 (Europe). Black: 1713 (Canada), 1714 (U.S.).

MX Z STD 600 — Yellow: 1701 (Canada), 1702 (U.S.). Black: 1704 (Canada), 1705 (U.S.).

MX Z STD 700 — Yellow: 1686 (Canada), 1687 (U.S.). Black: 1688 (Canada), 1690 (Europe).

MX Z STD 800 — Yellow: 1870 (Canada), 1871 (U.S.). Black: 1872 (Canada), 1873 (U.S.).

MX Z Trail 500 — Yellow: 1706 (Canada), 1707 (U.S.). Black: 1708 (Canada), 1709 (U.S.).

MX Z Trail 600 — Yellow: 1691 (Canada), 1692 (U.S.). Black: 1693 (Canada), 1694 (U.S.).

MX Z Trail 700 — Yellow: 1676 (Canada), 1677 (U.S.). Black: 1678 (Canada), 1679 (U.S.).

MX Z Adrenaline 600 — Yellow: 1695 (Canada), 1696 (U.S.). Black: 1697 (Canada), 1698 (U.S.). Red: 1700 (U.S.).

MX Z Adrenaline 700 — Yellow: 1680 (Canada), 1681 (U.S.). Black: 1682 (Canada), 1683 (U.S.). Red: 1684 (Canada), 1685 (U.S.).

MX Z Adrenaline 800 — Yellow: 1856 (Canada), 1857 (U.S.). Black: 1858 (Canada), 1859 (U.S.). Red: 1860 (Canada), 1861 (U.S.).

MX Z X 600 — Yellow: 1825 (Canada), 1826 (U.S.). Black: 1827 (Canada), 1828 (U.S.). Red: 1829 (Canada), 1830 (U.S.).

MX Z X 700 — Yellow: 1670 (Canada), 1671 (U.S.). Black: 1672 (Canada), 1673 (U.S.). Red: 1674 (Canada), 1675 (U.S.).

MX Z X 800 — Yellow: 1663 (Canada), 1664 (U.S.). Black: 1665 (Canada), 1666 (U.S.), 1667 (Europe). Red: 1668 (Canada), 1669 (U.S.).

Summit STD 600 — Yellow: 1758 (Canada), 1759 (U.S.). Black: 1760 (Canada), 1761 (U.S.).

Summit STD 700 — Yellow: 1753 (Canada), 1754 (U.S.), 1757 (Europe). Black: 1755 (Canada), 1756 (U.S.).

Summit X 700 — Yellow: 1747 (Canada), 1748 (U.S.). Black: 1749 (Canada), 1750 (U.S.). Red: 1751 (Canada), 1752 (U.S.).

Summit X 800 — Yellow: 1740 (Canada), 1741 (U.S.), 1746 (Europe). Black: 1742 (Canada), 1743 (U.S.). Red: 1744 (Canada), 1745 (U.S.).

Summit H.M. 700 — Yellow: 1735 (Canada), 1736 (U.S.). Black: 1737 (Canada), 1738 (U.S.).

Summit H.M. 800 — Yellow: 1862 (Canada), 1863 (U.S.). Black: 1864 (Canada), 1865 (U.S.).

Summit H.M. X 800 — Yellow: 1723 (Canada), 1724 (U.S.). Black: 1725 (Canada), 1726 (U.S.). Red: 1727 (Canada), 1728 (U.S.), 1824 (Europe).

Sub-models / Variants: LT, WT, SWT, WT LC, Fan, Cargo, Deluxe

VIN model identification: Characters 5–8 contain the four-digit model code. Match them to the model, market, and color entries above.

Model Year: 2001

  • Engine types: 377 (368.3 cc) — Touring Fan 380, Touring Cargo 380, Formula Deluxe Fan 380, MX Z Fan 380. 443 (436.6 cc) — MX Z Fan 440, Skandic LT. 503 (496.7 cc) — Touring Fan 500, Touring Cargo 500, Formula Deluxe Fan 500, MX Z Fan 500, Summit Fan 500, Skandic WT/SWT. 493 (499.25 cc) — Grand Touring STD 500, Formula Deluxe STD 500, MX Z STD/Trail 500. 593 (597.0 cc) — Skandic WT LC, Grand Touring STD 600, Formula Deluxe STD/GSE 600, MX Z STD/Trail/Adrenaline/X 600, Summit STD 600. 693 (697.64 cc) — Grand Touring GS 700, Formula Deluxe GS/GSE 700, MX Z STD/Trail/Adrenaline/X 700, Summit STD/X/H.M. 700. 793 (799.50 cc) — MX Z STD/Adrenaline/X 800, Summit X/H.M./H.M. X 800. 809 (796.3 cc) — Grand Touring SE, Mach Z STD/Tech Plus.

  • Transmission variants: Chaincase — Volume 1 S-series and Skandic LT. 3-speed gearbox — Skandic WT/SWT/WT LC. Mechanical reverse gearbox service — Volume 3 Grand Touring 500/600/700 and Formula Deluxe 500/600/700, with separate component layouts for type 493 and other covered engines.

  • Fastener Torque (M4): 18 Lbf•in nominal for grade 8.8 fasteners when no application-specific torque is given.

  • Fastener Torque (M6): 89 Lbf•in nominal for grade 8.8 fasteners when no application-specific torque is given.

  • Fuel tank capacity (503 engine): 38 L (10 U.S. gal) — Touring Fan 500, Touring Cargo 500, Formula Deluxe Fan 500, MX Z Fan 500, Summit Fan 500. 42 L (11.1 U.S. gal) — Skandic WT/SWT.

  • Fuel tank capacity (377 engine): 38 L (10 U.S. gal) — Touring Fan 380, Touring Cargo 380, Formula Deluxe Fan 380, MX Z Fan 380.

File & Download Details
keyboard_arrow_down
Listing ID:
28174
Seller:
Douglas Williams
File Size:
75.62 MB
File Type:
PDF
Language:
English
Pages:
950
Printable:
Yes
Delivery:
Download link on the confirmation page and by email after payment.
Download link validity:
3 days after purchase. Your saved PDF does not expire.

Ski-Doo Manual Features & Selected Content Preview

Publication Pages

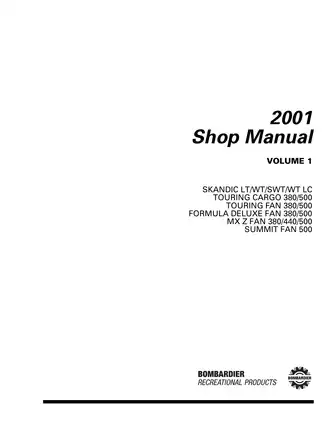

2001 Ski-Doo Shop Manual, Volume 1 (P/N 484 200 022) — Skandic LT/WT/SWT/WT LC, Touring Fan and Cargo 380/500, Formula Deluxe Fan 380/500, MX Z Fan 380/440/500, and Summit Fan 500 347
2001 Ski-Doo Shop Manual, Volume 2 (P/N 484 200 024) — CK3 Grand Touring SE and Mach Z STD/Tech Plus 280
2001 Ski-Doo Shop Manual, Volume 3 (P/N 484 200 026) — ZX Grand Touring STD/GS, Formula Deluxe STD/GS/GSE, MX Z STD/Trail/Adrenaline/X, and Summit STD/X/H.M./H.M. X 323

Choose the volume by model and chassis family to find the applicable service procedures, specifications, and wiring diagrams. The separate volumes keep the CK3 and ZX procedures distinct from those for the S-series and Skandic models.

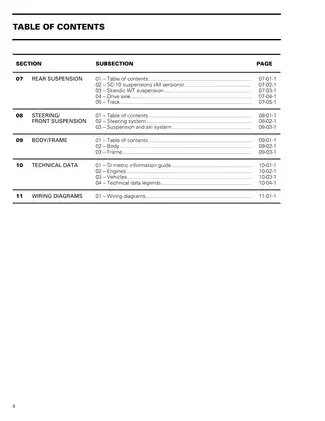

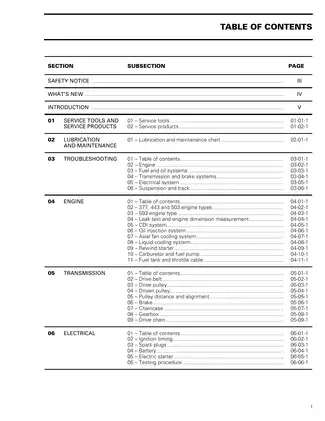

PDF Search, Bookmarks, and Wiring Pages

Find procedures by chapter or keyword: Embedded bookmarks open the main chapters in all three volumes. Workshop text is searchable. Some wiring sheets are image-based, and small connector numbers and wire-color codes are easiest to read when zoomed in.

The download is one printable English PDF with 950 pages. The total includes the three original covers and 65 pages of wiring annexes.

Engine, Drivetrain, and Electrical Service

This selection of workshop topics includes repair and diagnostic procedures. The manuals also cover rewind starters and body and frame service.

  • Service tools and maintenance: Special-tool lists, service products, and periodic maintenance charts identify the equipment and checks called for by the factory procedures.
  • Engine overhaul: Exploded views and procedures cover crankcase and cylinder assemblies, engine leak testing, and piston and cylinder measurements.
  • Fuel, oil, and cooling: Carburetor and fuel pump service, oil injection pump identification and adjustment, and procedures for the applicable fan or liquid cooling systems.
  • Clutches and driveline: Drive belt inspection, drive and driven pulley service, pulley alignment, brake service, and chaincase or gearbox procedures.
  • Electrical diagnosis: Ignition timing, electric starter service, circuit tests, and model-specific wiring diagrams with connector layouts and wire-color codes.
  • Chassis and track: Steering and ski service, SC-10 and Skandic rear suspension procedures, drive axle service, and track tension and alignment.

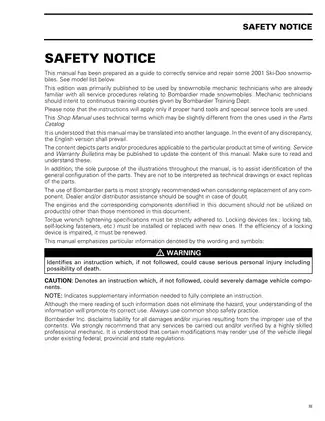

Bombardier prepared these shop manuals for snowmobile technicians familiar with its service procedures and equipped with the specified hand tools and special service tools.

Engine Sealing and Fuel-System Diagnosis

The troubleshooting charts help narrow down faults before disassembly. In the engine leak-test chapter, separate checks for the test equipment and engine sealing points help distinguish a leaking test connection from a crankshaft seal or another engine leak. The oil injection chapter in Volume 1 distinguishes pump adjustments by pump identification, so the setting can be matched to the installed pump.

Clutch Alignment and Wiring Checks

The pulley chapters cover clutch disassembly and inspection as well as drive-to-driven pulley alignment. Component-specific torque callouts appear in the exploded views and service text. The wiring annexes let technicians follow a circuit from the schematic to a connector and match its wire colors and pin positions during electrical checks.

Leak-Test and Piston Ring Specifications Preview

The engine leak-test procedure in each volume specifies a test pressure of 34 kPa (5 psi) held for 3 minutes. For the type 493 engine in Volume 3’s Grand Touring STD 500, Formula Deluxe STD 500, and MX Z STD/Trail 500, the engine data table lists a piston ring end-gap wear limit of 1.0 mm (0.039 in).
