Ski-Doo 2002 Tundra R, Skandic, Mach Z & ZX Shop Manual Set (P/N 484 200 032)
1,075 Pages • 1 Printable PDF (English) • Download
Ski-Doo Models Covered & Key Technical Specifications
Models: Tundra R, Skandic LT, Skandic WT, Skandic SWT, Skandic WT LC
Models & Model Codes:
Tundra R — 3278 (Canada and U.S.); engine type 277
Skandic LT — 2101 (Canada), 2102 (U.S.); engine type 443
Skandic WT — 2099 (Canada), 2100 (U.S.); engine type 503
Skandic SWT — 2097 (Canada), 2098 (U.S.); engine type 503
Skandic WT LC — 2095 (Canada), 2096 (U.S.); engine type 593
Model Year: 2002
-
Engine displacement: Tundra R: 268.7 cc; Skandic LT: 436.6 cc; Skandic WT/SWT: 496.7 cc; Skandic WT LC: 597.0 cc
-
Engine cooling: Tundra R: radial fan; Skandic LT/WT/SWT: axial fan; Skandic WT LC: liquid cooled
-
Carburetor type: Tundra R: 1 x VM 34; Skandic LT: 1 x VM 32-19121; Skandic WT/SWT: 2 x VM 34-19084; Skandic WT LC: 2 x VM 38-19111
-
Ignition system: Tundra R and Skandic LT: RER dual-trigger-coil CDI; Skandic WT/SWT: Ducati trigger-coil CDI; Skandic WT LC: Nippondenso trigger-coil CDI
-
Piston ring end-gap wear limit: 1.0 mm (0.039 in)
-
Drive belt width: Tundra R: 33.33 mm (1.312 in); Skandic LT/WT/SWT/WT LC: 34.60 mm (1.362 in), new
-
Drive belt wear limit: Tundra R: 30.00 mm (1.181 in); Skandic LT/WT/SWT/WT LC: 32.00 mm (1.260 in)
-
Transmission: Belt-and-pulley drive; Tundra R and Skandic LT: RER electronic reverse; Skandic WT/SWT/WT LC: 3-speed gearbox
Ski-Doo Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

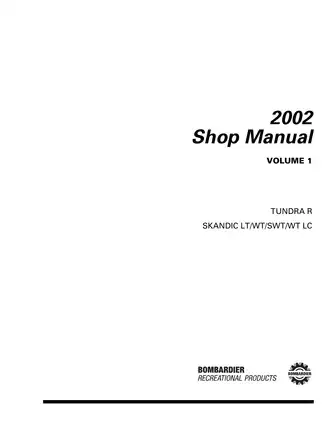

| 2002 Shop Manual, Volume 1 — P/N 484 200 032: Tundra R and Skandic LT, WT, SWT, and WT LC | 366 |
| 2002 Shop Manual, Volume 2 — P/N 484 200 034: Mach Z Sport, models 1878/1879, and Mach Z Tech Plus, models 1876/1877 | 264 |
| 2002 Shop Manual, Volume 3 — P/N 484 200 036: Listed Grand Touring, Legend, MX Z, and Summit ZX-series models | 445 |
Each volume provides model-specific repair procedures, troubleshooting, and technical data. The model lists and configuration tables help match the instructions to the correct engine, drivetrain, and electrical system before work begins.
PDF Search, Bookmarks, and Wiring Detail
Search and diagram access: Service text is searchable across the three volumes, but cover pages, some illustration labels, and several wiring-diagram pages do not support text search. Embedded bookmarks link to the volumes and major sections. Small wiring-diagram labels require zooming.
One printable English PDF contains 1,075 pages, including the three original color covers and 47 wiring-annex pages with their divider pages.
Engine, Drivetrain, and Electrical Service

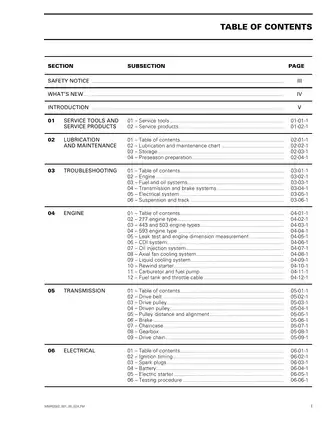

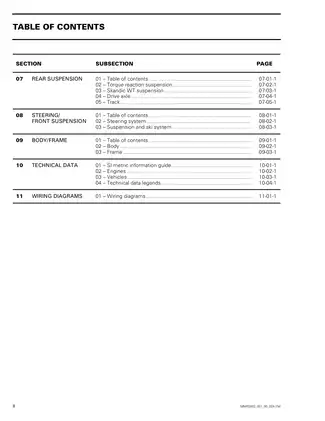

The following selected service topics outline the repair coverage. Other included subjects range from storage and preseason preparation to rewind-starter rope replacement.
-
Engine repair: Step-by-step removal, disassembly, inspection, and reassembly procedures for 277, 377, 443, 493, 503, 593, 693, 793, and 809 engine types.
-
Fuel and lubrication: Carburetor service and synchronization, fuel-pump testing, DPM manifold diagnosis, oil-system leak testing, and oil-injection pump adjustment.
-
Cooling systems: Axial-fan service, fan-belt adjustment, liquid-cooling inspection, leak testing, and coolant draining and refilling procedures.
-
Clutches and transmission: Drive- and driven-pulley service, belt setup, pulley alignment, chaincase repair, drive-chain adjustment, and Skandic gearbox disassembly and assembly.
-
Brake service: Mechanical and hydraulic brake diagnosis, component inspection, brake-pad replacement, and hydraulic-system bleeding.
-
Suspension and chassis: Rear-suspension removal and assembly, shock inspection, drive-axle and track service, track alignment, steering, skis, and front suspension.
-
Electrical diagnosis: CDI/RER ignition timing, MPEM testing, battery and electric-starter service, charging and lighting checks, connector information, and model-specific wiring diagrams.

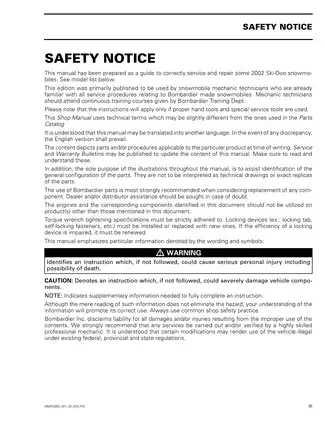

Bombardier published these manuals primarily for snowmobile technicians already familiar with its service procedures, using the specified hand tools, specialty tools, and test equipment.
Model Configurations and Engine Measurements
Volume 2 separates the Mach Z Sport and Tech Plus configurations, with dedicated 809 engine, DPM, hydraulic-brake, CK3 chassis, and SC-10 II suspension coverage.
Volume 3 includes 380 F and 500 F fan models; Sport, Trail, GS, and SE configurations; and Adrenaline, Renegade, X, R/RER, Summit Sport, Summit X, and H.M. variants. Its introduction lists individual model numbers for Canadian, U.S., European, color, and special-edition configurations.
Beyond engine teardown, the measurement sections address cylinder taper and out-of-round, piston clearance, combustion-chamber volume, crankshaft deflection, end-play, and alignment. Torque tables, wear limits, fluid capacities, and adjustment specifications accompany the applicable assemblies.
The engine chapters warn that incorrect cylinder-base gasket thickness can cause detonation and severe engine damage.
Carburetors, DPM, and Oil-Pump Adjustment
Carburetor chapters distinguish the applicable configurations rather than treating every fuel system alike. DPM coverage includes compensation-solenoid removal and installation, manifold inspection, and leak-testing procedures.
Oil-pump identification determines which adjustment procedure applies. The 593 engine’s low-mounted pump creates a parallax trap: a misleading view of its alignment marks can delay pump opening and damage the engine.
Pulley Variants and Suspension Service
The transmission sections distinguish Bombardier Lite, Comet 102C, and TRA drive pulleys, plus LPV27, Formula, and HPV27 driven pulleys. Their assembly views, inspection criteria, and alignment specifications support the different configurations.
Rear-suspension coverage includes Torque Reaction, Skandic WT, SC-10, SC-10 II, and SC-10 III systems. The SC-10 III chapter includes HPG T/A shock servicing; BOSS shock service is limited to actuator replacement.
Diagnostic References and Specialty Tools
Named diagnostic references include the Engine Leak Verification Flow Chart, Ignition System Testing Sequence, Lighting System Testing Sequence, and MPEM connector views. Dedicated Skandic WT LC and Mach Z Tech Plus wiring diagrams accompany the Grand Touring, Legend, MX Z, Summit, and fan-model diagrams, including layouts spread across multiple pages.
The service-tool chapters identify the engine leak tester kit P/N 861 749 100, fuel and oil system leak tester P/N 529 033 100, and pulley spring compressor P/N 529 035 524.
Other listed equipment includes the MPEM programmer P/N 529 035 718 and Skandic LT countershaft bearing installer P/N 529 035 815.
Several ignition, clutch, and track checks involve a running engine or loaded spring components. Use the stands, guards, specialty tools, battery-isolation practices, and personal protection specified in the manual. Illustrations show component identification and general configuration rather than dimensionally exact engineering drawings.
Sample WT LC Cooling and Ignition Data
For the Skandic WT LC’s 593 engine, the technical data lists thermostat opening at 42°C (108°F) and radiator-cap opening pressure at 100 kPa (14.5 PSI).
Its ignition specifications give a trigger-coil resistance of 190–300 Ω. Resistance measurements apply with components at room temperature, approximately 20°C (68°F).
