Husqvarna Viking Designer Topaz 20/30 Service & Parts Manual Set (2010) (P/N 104 72 95-26)
94 Pages • ZIP Download: 2 Printable PDFs (English)
Husqvarna Models Covered & Key Technical Specifications
Models: Viking Designer Topaz 20, Viking Designer Topaz 30
Model Year: 2010
-
Thread tension (bobbin case) resistance: 12–20 g
-
Feed dog height above the needle plate (teeth at highest position): 0.9–1.1 mm
-
Needle-to-hook gap: Max 0.15 mm
-
Needle bar height (upper end of needle to hook ring surface): 28.95 mm (+0.2 mm)
-
Needle threader stop distance: 1.5 mm (+0.5 mm)
-
Pivot height (presser foot R to needle plate): 1.35 mm (+/-0.20 mm)
Husqvarna Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Husqvarna Viking Designer Topaz 20/30 Service Manual — P/N 104 72 95-26, January 21, 2010 | 73 |

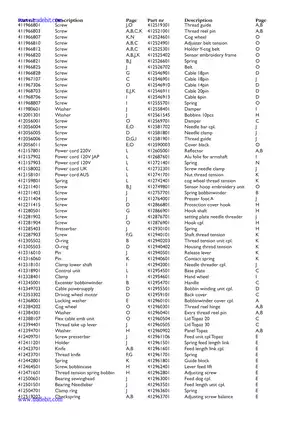

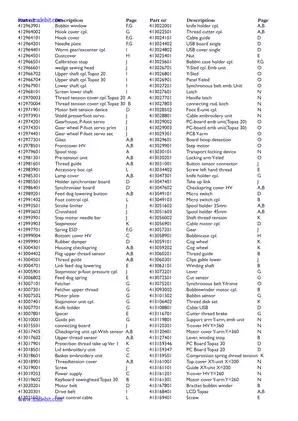

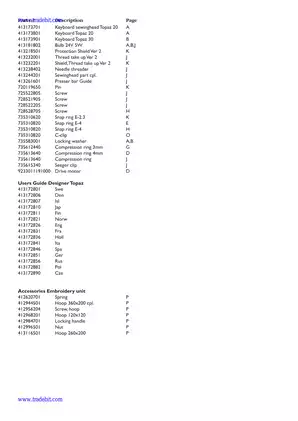

| Husqvarna Viking Designer Topaz 20/30 Parts List — P/N 104 23 16-96, March 30, 2010 | 21 |
The service instructions explain checks, adjustments, and component replacement; the parts list supplies the detailed assembly views referenced by those instructions. Together, they support repair work and identification of model-specific replacement parts.
This is workshop service material, not an operator or stitch-use guide.
Searchable PDFs and Illustrated References
Text search and diagram detail: Both PDFs support text search and have no embedded PDF bookmarks. The service manual’s circuit-board connector numbers and legend are clearly readable. Dense exploded-view plates benefit from zooming to read small part numbers.

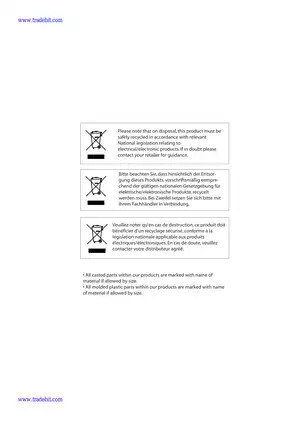

The ZIP download contains two printable English-language PDFs totaling 94 pages. This total includes both cover pages and the parts list’s recycling-information page.
Machine Adjustments, Service Tests, and Parts Identification
The following selected content highlights outline the service and parts coverage. Additional topics include thread take-up spring adjustment and bobbin-winding stop adjustment.
-
Mechanical settings: Drive- and motor-belt tension, hook-gear play, feed timing, needle-to-hook relationship, hook and feed-dog height, needle centering, threading-device alignment, and stitch balance.
-
Built-in service diagnostics: Five service menus cover step motors, display and sensor checks, stitch test patterns, buttonhole balance, keyboard and LED tests, setting resets, and usage information.
-
Internal repair procedures: Step-by-step removal, installation, and rebuilding instructions cover the sewing head, tension unit, needle and presser-bar mechanisms, shafts, hook, feed system, and electrical assemblies.
-
Topaz 20 and Topaz 30 distinctions: Separate hook-cover and bobbin-winder procedures, Topaz 30 thread-cutter service, and model-specific references for boards, upper shafts, keypads, covers, and embroidery components.
-
Embroidery-unit service: Cover removal, X- and Y-axis belt checks and adjustment, step-motor replacement, hoop-holder disassembly, hoop-sensor identification, and access to the embroidery service menu.
-
Illustrated parts support: Sixteen exploded-view plates, A through P, identify OEM parts for the machine body, drive and feed systems, sewing head, hook, cutter, electrical hardware, and embroidery assemblies.
Written for service-workshop personnel and sales staff who carry out servicing, the instructions assume thorough knowledge of precision appliances and access to service tools.
Calibration Depth and Post-Repair Checks
The manual ties component replacement to the adjustments that must follow. Sewing-head rebuilding leads into checks for needle position, needle-bar and presser-foot geometry, threading-device alignment, pivot height, and the needle-to-hook relationship.
Hook, feed-unit, arm-shaft, and lower-shaft repair sections identify their required follow-up checks for hook-gear play, after-feed position, feed-dog alignment, hook timing, and stitch balance. These cross-references are particularly useful after a machine has been partly dismantled or arrives with several settings already disturbed.
Setting tools: The factory tool list identifies the hook-timing spacer 63-102600-18/000, timing feeler gauge 61-111600-02/000, and needle clamp 413 10 22-01.
Other specified equipment includes ESD wrist strap 412 23 02-01, feed-dog lift gauge 413 12 73-01, needle-height gauge 412 35 29-02, and distance gauge 412 38 85-01.
Service Program and Electrical Scope
Sensor coverage includes the synchronizer, bobbin thread, upper thread, bobbin winder, presser-foot servo, buttonhole sensor, foot control, and the Topaz 30 cutter sequence. Test patterns support straight, zigzag, overlock, buttonhole, darning, and stitch-balance checks.
Main-board replacement: The manual documents USB software updating and the settings that must be restored after replacement, including pivot height and the four-point upper-thread tension setup. Machine information includes total powered-on, sewing, and embroidery time, plus software and build-version details.
Electrical coverage centers on power-supply output checks, the labeled Designer Topaz circuit-board connector layout, cable identification, and service-menu functional tests. It is not a board-level electronics repair manual or a full wiring-schematic set.
Model-Specific Exploded Views and Service Cautions
Illustrated references include front-panel plates A/B, drive-motor, control-board, and cable plate D, feed-unit plate E, sewing-head plate J, and embroidery-carriage and PCB plate O.
The parts pages distinguish Topaz 20 and 30 main boards, upper shafts, keyboards, embroidery PCBs, axis belts, covers, and hoop sizes before replacement components are selected.
Handling cautions: Loose circuit boards require controlled ESD handling with the specified wrist strap and mat; careless handling can damage the electronics. The feeding step-motor mounting screw has a left-hand thread, so treating it like a conventional fastener risks damaging the screw or mounting point.
Disconnect the machine from power before opening the base or removing the power supply, circuit board, or shaft assemblies.
Examples of Hook-Timing and Power-Supply Specifications
For the hook-timing check with a new size 90 universal needle and straight-stitch setting, the hook tip passes behind the needle centerline after the needle rises 2.5 mm from its lowest position.
The power-supply test section specifies 6.5–7.5 V DC at contact 3 and approximately 24 V DC at contacts 7–8 for the lamp and computer supply.
