Husqvarna VIKING Designer Topaz Series Sewing and Embroidery Machine User's Guide 2011
Product Gallery

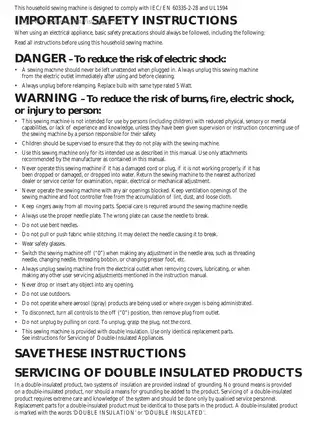

Sample pages from the Husqvarna VIKING Designer Topaz Series Sewing and Embroidery Machine User's Guide 2011 manual
Purchase Information
Technical Specifications
- Document Number / Seller:
- 25778 / Sharon Allen
- File Size:
- 5.18 MB
- File Type:
- Language:
- English
- Pages:
- 80
- Printable:
- Yes
- Estimated Download Time:
- 0.11 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Sewing Machine
- Brand:
- Husqvarna
- Reviewed and Approved:
- Jan 2, 2006
Husqvarna Models and Parts Covered in this Sewing Machine Manual
-
Husqvarna Designer Topaz (30/20) — Series: 57928
-
Full Coverage: Model 30 — Model 20
-
Husqvarna Power & Utility Specs: 24V DC Input — 5W Lamp Rating — 1.0 GB USB Capacity — 130/705H Needle System
-
Topaz 30 Performance Limits: 5 Speed Levels — 20 Memory Slots — 360x200mm Hoop Max — 40 Program Stitches
-
Topaz 20 Operational Baselines: 3 Speed Levels — 15 Memory Slots — 260x200mm Hoop Max — 40 Program Stitches
-
Designer Series Technical Settings: 0-8.5 Pressure Range — 15 Pivot Steps — 29 Needle Positions — 7mm Max Width
-
VSM Group Chassis Hardware: BE18/BE19 Unit Type — Type FR5 Foot Control — Dual Insulation Class — 70-120 Threader Range
Complete Manual Information
Husqvarna VIKING Designer Topaz Series User's Guide - 2011
Operational efficiency is maximized through the integration of the Exclusive SEWING ADVISOR and the EXCLUSIVE SENSOR SYSTEM, which automatically synchronize stitch parameters with fabric thickness. Precise maintenance and uptime are preserved by utilizing the specific light bulb remover for the 24V, 5W lamps, preventing socket damage and ensuring consistent illumination for detailed embroidery work. This manual provides the official factory guidelines for optimizing the life cycle and output quality of high-performance sewing and embroidery systems.
Machine Architecture & Model Compatibility: System Configurations
The following units are categorized by their specific technical capabilities and provided accessories as defined in the factory documentation.
Technical Series: Designer Topaz 30 (Type BE18)
- Husqvarna VIKING Designer Topaz 30 (2011)
- Model features include 5-level speed control, 20 memory slots, and the Selective Thread Cutter system.
Technical Series: Designer Topaz 20 (Type BE19)
- Husqvarna VIKING Designer Topaz 20 (2011)
- Model features include 3-level speed control, 15 memory slots, and manual thread trimming requirements.
Operational Advantages: ROI & System Integrity
- Automated Parameter Synchronization: The SEWING ADVISOR eliminates manual configuration errors by instantly setting optimal tension, length, and width for various fabric types.
- Hardware Protection Protocols: Integrated "Stitch Width Safety" prevents needle breakage when utilizing straight stitch plates or specialized presser feet.
- Extended Maintenance Cycles: Non-lubricated internal components reduce routine service requirements, focusing user maintenance on debris removal in the bobbin area.
Document Metadata: Technical Profile
Technical Depth & Factory Benchmarks: System Calibration
Precision embroidery output is maintained through specific software-hardware handshakes and mechanical zero-point alignments.
- Embroidery Unit Calibration: Automatic arm positioning occurs upon system startup with the unit attached to ensure X/Y axis accuracy.
- GraphicDisplay Diagnostics: Inverted numerical values on the interface indicate manual overrides of factory-default stitch settings.
- Sensor Foot Pressure: Adjustable from 0 to 8.5 in increments of 0.5 to accommodate variable material densities.
Visual Navigation Aids: Component Mapping
- System Overview: Front and rear side component identification including USB port location and embroidery arm attachment.
- Function Button Interface: Detailed mapping of the FIX, STOP, and Selective Thread Cutter controls.
- GraphicDisplay Icons: Visual guide for Sewing Mode and Embroidery Stitch-out views.

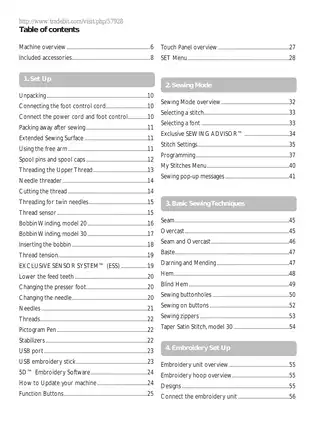

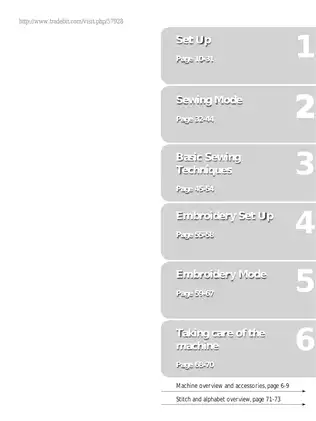

Table of Contents: Primary Sections
- 1. Set Up: Power connection, threading, and bobbin winding protocols.
- 2. Sewing Mode: Stitch selection, font loading, and SEWING ADVISOR utilization.
- 3. Basic Sewing Techniques: Seaming, overcasting, buttonholes, and zipper installation.
- 4. Embroidery Set Up: Hoop preparation, unit connection, and design management.
- 5. Embroidery Mode: Edit and Stitch-out views, design adjustment, and corner checks.
- 6. Taking Care of the Machine: Cleaning the bobbin area and light bulb replacement.
Operational Limits & Specifications: Hardware Parameters
Technical adherence to these specifications is required for optimal system performance.
- Needle System: 130/705H (Standardized for woven and stretch applications).
- Needle Sizes: Optimized for size 70 to 120; size 60 and smaller requires manual threading.
- Embroidery Format: Support for .vp3 (designs) and .vf3 (font) file types.
- Power Specifications: 24V for internal lighting; voltage/frequency data located on the machine base plate.
- Software Threshold: Programming limit of 40 stitches or letters per saved program.
Download Instructions for Husqvarna Sewing Machine Manual
Frequently Asked Questions - Husqvarna Sewing Machine Manual
Is this manual suitable for beginners?
Yes, this Husqvarna manual is designed for both professional technicians and DIY enthusiasts. It includes step-by-step procedures with clear illustrations and safety guidelines for Sewing Machine maintenance and repair.
What file format will I receive?
You will receive this manual as a PDF file (5.18 MB), which is compatible with all devices. The manual is fully searchable and printable for your convenience.
How quickly can I access the manual after purchase?
You'll receive instant access to your Husqvarna Sewing Machine manual immediately after payment completion. The download link is valid for 3 days, with lifetime re-download guarantee.
Can I print specific sections of the manual?
Absolutely! This digital manual allows you to print any section you need, from individual pages to complete chapters, making it perfect for workshop use.
