Husqvarna Viking Designer II Sewing Machine Owner's Manual
Complete user guide for the Designer II touch screen sewing machine. Covers threading, stitch selection, bobbin winding, buttonholes, decorative sewing, and machine maintenance for all fabric types.
Manual Preview
Sample pages from the Husqvarna Viking Designer II Sewing Machine Owner's Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Husqvarna Viking Designer II — 2000s Comprehensive Technical Dossier | Designer II Sewing Collection.
- Reference Rotational Force: The bobbin spindle is configured at 25 different needle positions for straight stitch precision Sequences.
- Integral Storage Capacity: For embroidery programming, 558 stitches produces the maximum built-in memory allocation Baseline.
- General Fit Tolerances: Stitch width adjustment maintains 0.25 mm (0.010 in) per increment positioning adjustment Requirements.
- Essential Climate Specs: Maximum stitch width is established at 35 mm (1.38 in) for Omnimotion decorative stitches Threshold.
- Baseline Travel Rate: Buttonhole sizing range is set to 16–50 mm (5/8–2 in) with Sensor measurement accuracy Mapping.
- Established Clamp Forces: Light bulb specification requires 5 Watts per unit for dual illumination system Configuration.
Professional Workshop Service Manual & Technical Specifications
Factory-Level Reference Manual: Husqvarna Viking Designer II Sewing Machine - Comprehensive User Guide Technical-Briefing
Application-Range: Husqvarna Viking Designer II sewing machine // Operational-Framework: Touch screen interface and sensor-driven sewing techniques // Validation-Data: Complete thread tension documentation, presser foot specifications, and stitch programming systems.
| Component System | Value | Logic |
|---|---|---|
| Sewing Modes | Utility, Decorative, Free Motion, Programming | Documented across chapters 3-8 |
| Input Interfaces | Touch Screen, d-Card slots, Function buttons | Complete specifications provided |
| Presser Foot Assembly | 8 standard feet plus optional accessories | Full compatibility matrix included |
Outlining the operational framework across the machine's Learn and Setup sections, the manual establishes foundational knowledge of the Designer II, then extends through utility garment sewing, covers decorative stitching applications, demonstrates free motion embellishment, and documents advanced programming capabilities, with detailed treatment of theme accessories and maintenance procedures.
Integrated Nexus

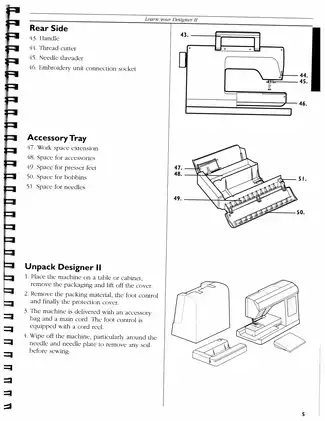

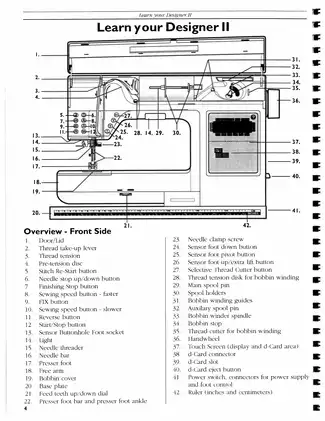

Comprehensively establishing the machine's physical layout, the document includes detailed diagrams of the front control panel, rear access points, and internal bobbin area configurations. Accurate descriptions of the needle threading pathway are provided for both horizontal and vertical spool pin positions, along with specifications for auxiliary pin threading when using twin needles. The touch screen interface structure is mapped with all menu hierarchies—Sewing Advisor fabric and technique selections, SET options for manual overrides, ADJUST controls for stitch modification, FUNC mode transitions between NORM and PROG, and HELP system recommendations.
Diagnostic Architecture
Verification procedures are included for bobbin winding from both main spool and needle positions, with thread tension disk routing documented step-by-step. Repair information is provided for light bulb replacement in both front and rear lamp locations, stitch plate removal and cleaning sequences, and bobbin area lint clearance. The document includes coverage of sensor foot pressure calibration, feed teeth height adjustment, and needle stop position settings, allowing users to understand the complete adjustment landscape without performing repairs themselves.
Advanced Nexus
The document includes reference data for thread compatibility across different fabric weights and fiber types, distinguishing between all-purpose sewing threads, embroidery rayon thread specifications, and invisible thread applications. Fabric selection logic is categorized by structure (woven versus knit), weight classifications (light, medium, heavy), and specialty materials (leather, vinyl). For each fabric category, the manual documents the recommended needle types and sizes, including standard needles for woven fabrics, stretch needles with rounded points, and jeans needles with sharp points for dense fabrics.
Systematic Protocol
The Sewing Advisor framework documentation reveals how the machine pairs fabric selection with eight distinct sewing techniques—seam, overcast, seam/overcast combined, baste, blind hem, hem, buttonhole, and button attachment—each triggering automatic stitch, tension, width, and presser foot pressure adjustments. The manual documents torque specifications for bobbin case holder positioning and needle clamp screw tightness to ensure proper mechanical function.
Modular Sequences
Programming capabilities are fully detailed through the PROG mode memory system, which supports nine separate memories (M1-M9), each capable of storing up to 62 stitches for a combined capacity of 558 stitch sequences. The document includes procedures for cursor navigation, stitch deletion and recovery, program adjustment via ADJUST menu parameters, and sequential sewing through REP mode. Optional Stitch d-Cards are catalogued with their contents—Utility (Ai), Fashion (Ni), Block Letters (Oi), Buttonholes (Bi), Heirloom (Di, D2), Pictogram (Ci), Quilt/Appliqué (Ei), Children (Gi), Scallop (Hi), Omnimotion (Ki), Decorative (Li), Crafting (Mi), Outline Block (Pi), Script (Ri), and 4/8-Way (Ti)—each listing the stitch count and application categories within the document.
The troubleshooting section addresses 15 distinct symptom categories: fabric puckering, skipped stitches, needle breakage, poor tension, fabric feed issues, upper thread breaking, bobbin thread breaking, bobbin alarm malfunction, irregular bobbin winding, thread cutter failure, incorrect stitch display, presser foot descent failure, touch screen calibration needs, slow sewing speed, and complete sewing failure. For each symptom, the manual documents diagnostic steps and corresponding verification procedures without prescribing specific repair actions.
Theme accessory documentation includes the Quilt Theme bundle contents (extension table, open toe dual feed foot, free motion guide foot, stippling foot, guide grip), Heirloom Theme components (two Stitch d-Cards, four presser feet, twin and wing needles), Embroidery Theme specification (embroidery unit, hoops in multiple sizes, two Embroidery d-Cards, software program options), and Home Dec Theme equipment (presser feet selection, pillow/cushion template, specialty pins, ironing surface). The manual notes that all themes are sold separately and that future theme releases are anticipated as part of ongoing product development.
Optional Stitch d-Card specifications are documented with stitch counts and design purposes: Buttonhole Stitches (Ba, 40 styles across two cards), Pictogram (Ca, unlimited combinations), Heirloom (Di, 20 cross and hemstitches; D2, smocking and decorative variants), Quilt/Appliqué (Ea, piecing and quilting options including 1/4-inch reference stitches), Children (Gi, 24 specialized designs), Scallop (Hi, 27 width-variable styles), Omnimotion (Ki, 20 stitches up to 35mm width), Decorative (Li, combination-friendly variants), Crafting (Mi, multi-width options), Outline Block (Pi), Script (Ri), and 4/8-Way (Ti, directionality-variable stitches).
The care section documents light bulb specifications (marked on the machine front), cleaning procedures for exterior surfaces and touch screen, bobbin area lint removal using included stitch plate opener and brush accessories, bobbin case holder removal and cleaning protocols, and stitch plate replacement positioning at 5mm rear edge offset. The manual provides reference material for identifying defective needles through visual comparison with proper needle geometry and documenting the feed teeth raise/lower dial orientation for different sewing techniques.
