Husqvarna Viking Quilt Designer II Sewing & Embroidery Machine user´s guide
Product Gallery

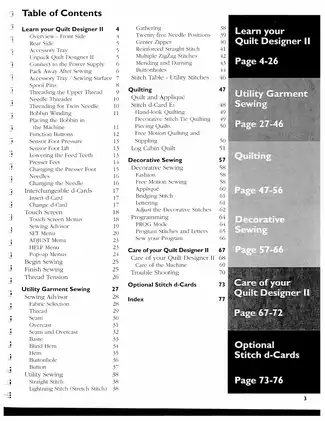

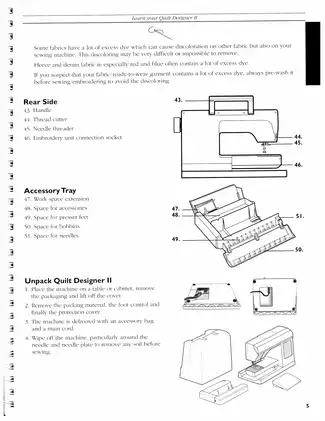

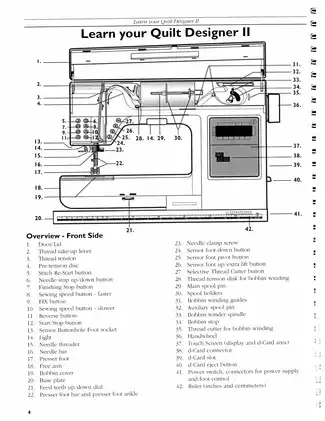

Sample pages from the Husqvarna Viking Quilt Designer II Sewing & Embroidery Machine user´s guide manual
Purchase Information
Technical Specifications
- Document Number / Seller:
- 25337 / Barbara Gomez
- File Size:
- 5.11 MB
- File Type:
- ZIP
- Language:
- English (Note: Some of our manuals may be available in multiple languages.)
- Pages:
- 39
- Printable:
- Yes
- Estimated Download Time:
- 0.1 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Sewing Machine
- Brand:
- Husqvarna
- Reviewed and Approved:
- Jan 2, 2026
Husqvarna Models and Parts Covered in this Sewing Machine Manual
- Husqvarna VIKING Quilt Designer II (2005)
- Husqvarna VIKING Quilt Designer (2005)
Complete Manual Information
Husqvarna VIKING Quilt Designer II User's Guide - 2005 Edition
This official operator instruction set provides the foundational framework for managing the Husqvarna VIKING Quilt Designer series' advanced sewing and embroidery ecosystems. Effective maintenance of the rotary hook assembly and the use of a 5 Watt rated replacement bulb are critical for ensuring sustained stitch precision and preventing thermal damage to the internal housing.
Equipment Applicability & Configuration Groups
Quilt Designer Series - Version 1.0/2.0 Architecture
- Husqvarna VIKING Quilt Designer II (Primary focus of documentation)
- Husqvarna VIKING Quilt Designer (Legacy compatibility for core utility functions)
Operational Advantages & Risk Mitigation
- Precise Needle Calibration: Step-by-step instructions for 25 needle positions ensure exact alignment for complex quilting and topstitching tasks.
- Sensor System Integration: Detailed operational parameters for the Sensor Foot and Sensor Buttonhole Foot prevent fabric slippage and ensure consistent stitch density across varying material thicknesses.
- Component Protection: Safety protocols regarding the IEC/EN 60335-2-28 compliance standards mitigate electrical risks during routine cleaning and bulb replacement.
Documentation Metadata
- Document Type: User's Guide / Operator Manual
- Page Count: 71+ Pages
- Compliance: IEC/EN 60335-2-28; UL1594
Calibration Data & System Benchmarks
The Quilt Designer II utilizes a precision-step needle positioning system where each adjustment on the stitch width control (plus or minus) corresponds to a 0.25 mm lateral movement. The machine is engineered to support twin needle applications with specific safety settings to prevent needle-to-plate impact during decorative stitch execution.
Interface & Hardware Navigation
Documentation provides detailed mapping of the Touch Screen interface and the Sewing Advisor™ system. Visual guides include the placement of the d-Card reader, the feed teeth lowering dial for free-motion applications, and the multi-bar presser foot ankle for offset zipper installation.
Table of Contents
- Important Safety Instructions
- Unpacking and Setup
- Machine Overview & Component Identification
- Sewing Advisor™ Functionality
- Utility Sewing Techniques (Seams, Basting, Zippers)
- Specialty Stitches & Quilting
- Sensor Foot System Operations
- Maintenance (Cleaning the Stitch Plate, Troubleshooting)
- Index
Operational Limits & Technical Specifications
- Needle System: Size 70-100 recommended (Size 80 for medium woven fabrics)
- Lighting Requirements: 5 Watt maximum bulb rating
- Stitch Width Adjustment: 0.25 mm increments (up to 24 steps for 6.0 mm width)
- Electrical Standards: IEC/EN 60335-2-28 and UL1594 compliant
- Fabric Compatibility: Woven, Stretch, Leather, and Vinyl (Specific Sewing Advisor™ presets)
Download Instructions for Husqvarna Sewing Machine Manual
Frequently Asked Questions - Husqvarna Sewing Machine Manual
Is this manual suitable for beginners?
Yes, this Husqvarna manual is designed for both professional technicians and DIY enthusiasts. It includes step-by-step procedures with clear illustrations and safety guidelines for Sewing Machine maintenance and repair.
What file format will I receive?
You will receive this manual as a ZIP file (5.11 MB), which is compatible with all devices. The manual is fully searchable and printable for your convenience.
How quickly can I access the manual after purchase?
You'll receive instant access to your Husqvarna Sewing Machine manual immediately after payment completion. The download link is valid for 3 days, with lifetime re-download guarantee.
Can I print specific sections of the manual?
Absolutely! This digital manual allows you to print any section you need, from individual pages to complete chapters, making it perfect for workshop use.
