1990 John Deere 6076 Diesel Engine Component Technical Manual (P/N CTM6)

John Deere Component Technical Manual CTM6, dated October 3, 1991, covers repair and diagnostics for the 1990 6076T, 6076A and 6076H diesel engines through serial number 499999. Engines above this serial-number range require the separate CTM42.

Text search and navigation: Body text and specification tables are searchable, with bookmarks for all 18 groups and individual procedures. Text within the Bolt Identification Chart and Turbocharger Failure Report is not searchable. Small labels in the fuel and lubrication schematics, and the failure-report form, benefit from zooming.

• Engine repair: Cylinder block, wet liners, pistons, connecting rods, crankshaft and main bearings, with flywheel, rear-seal and wear-sleeve service.

• Cylinder head and timing: Valve and guide reconditioning, valve-clearance adjustment, camshaft replacement, timing-gear checks and auxiliary-drive repair.

• Fuel system: Injection-pump removal, installation and timing; nozzle testing and rebuilding; supply-pump repair, fuel-system bleeding and drain-back diagnosis.

• Turbocharger and aftercooler: Seven-step turbocharger inspection, bearing-clearance tests, center-housing replacement and aftercooler leak testing.

• Lubrication and cooling: Oil-pump inspection, bypass-valve service, oil-cooler testing, water-pump rebuilding, thermostat testing and fan-drive repair.

• Engine testing: Compression, oil-pressure and turbo-boost tests, cooling-system pressure checks, dynamometer testing and engine break-in.

This manual is written for experienced technicians and identifies the special tools required for the covered work.

Engine Rebuilds and Serial-Number Differences

The teardown, inspection and assembly sections cover the six-cylinder, valve-in-head engine, with cylinder liner standout measurement, shimming, piston cooling-orifice inspection and crankshaft grinding specifications.

Valve train and pistons: Valve and camshaft lift data change at serial number 121170, with provisions for converted 644E loaders. Valve-spring specifications change at 129679. ZOLLNER piston measurements split at 170340, alongside separate MAHLE piston data.

Flanged-head cylinder head bolts and Grade 180/12.9 bolts with washers have different tightening procedures. Flywheel service distinguishes SAE 1, 2 and 3 housings; timing-gear work covers engines with and without auxiliary drives.

Repair notes explain how oil on the red cylinder-liner packing can cause swelling, liner distortion and piston scoring. The rear-seal section specifies the JDG476(85) installer and warns that separating the seal/wear-sleeve assembly can damage the seal during reassembly and cause leakage.

Fuel Injection and Diagnostic Limits

Robert Bosch and Nippondenso pump installations include A- and P-series configurations, with mechanical or electronic governors. KDEL nozzle procedures cover opening-pressure, leakage, chatter and spray-pattern tests, followed by cleaning, inspection and reassembly.

Hydraulic aneroid activator service and overflow-valve checks are included. Aneroid calibration and specified injection-pump adjustments require an authorized diesel repair station. Additional electronic-governor and engine-accessory diagnostics are covered by the separate CTM11.

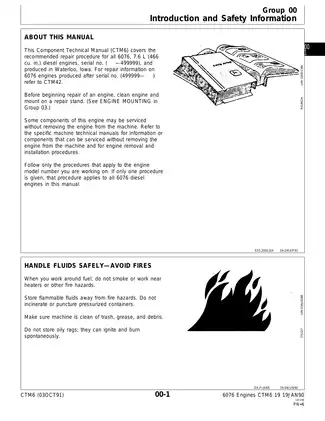

Follow the manual's safety precautions when hoisting heavy engine components or handling high-pressure fuel lines; escaping fluid can penetrate the skin and cause serious injury.

Turbocharger and Aftercooler Coverage

Repair coverage distinguishes AiResearch/Garrett and Schwitzer turbochargers, including center-housing and rotating-assembly replacement. Holset units are treated as replacement assemblies.

The seven-step inspection and Turbocharger Failure Report help distinguish actual turbocharger damage from lubrication, intake or engine problems before a replacement is selected.

Separate illustrations cover single-pass and two-pass coolant-cooled aftercoolers on 6076A engines. The 6076H configuration uses air-to-air aftercooling.

Lubrication, Cooling and Specification Data

Horizontal and vertical oil-filter housings, standard and deep-sump oil-pump arrangements, and 8-plate and 12-plate oil coolers receive separate coverage. Oil cooler bypass valve service, fluid recommendations and application-specific crankcase oil-fill tables are included.

Cooling-system repair extends to fixed, medium-duty and heavy-duty fan drives. The 6076A Engine Cooling System view shows the coolant path through the engine, aftercooler and oil cooler.

The Engine-Sectional View and Fuel System Operation schematic show component relationships. The Engine Application Chart maps industrial, agricultural and OEM/marine applications to engine models. The Unified Inch Bolt and Cap Screw Torque Values chart complements component torque tables, wear limits, exhaust valve guide-to-stem clearances and maximum valve-seat runout data.

Machine access and engine removal/installation require the appropriate machine technical manual. The dynamometer, boost-pressure and engine-speed tables identify specifications restricted to OEM applications.

English PDF and Included Pages

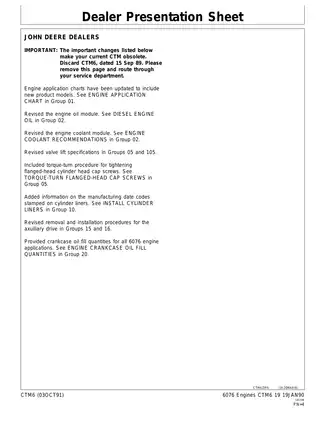

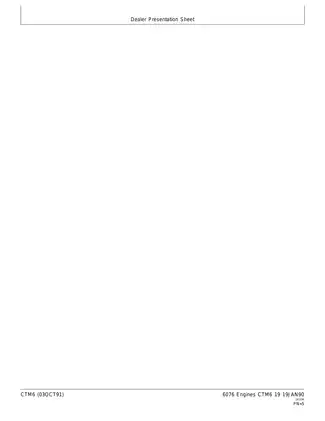

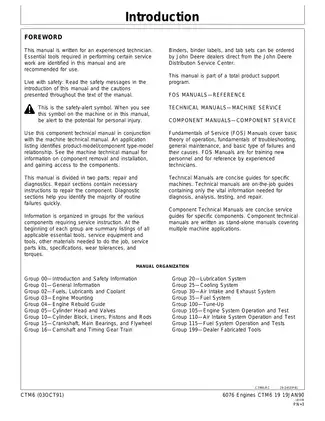

One printable, English-language 437-page PDF: 412 pages in the technical groups, 6 contents pages, 5 index pages, 2 cover pages, a foreword, a dealer update sheet and 10 pages with headers and footers only. All of these pages are already included in the total.
