John Deere 450E Dozer & 455E Loader: 1987 Operation & Tests Manual (P/N TM-1330)

John Deere’s Operation & Tests technical manual (P/N TM-1330), revised October 1987, covers the 450E Crawler Bulldozer and 455E Crawler Loader, including Long Track specifications. Its focus is diagnosis and adjustment; internal component overhaul requires the separate repair sections referenced in the text.

Bookmarks, Text Search and Foldout Detail

Search and diagram access: Embedded bookmarks lead to system sections and individual tests. Text search is unreliable across much of the manual because of recognition errors, and foldout diagrams have no searchable text. Small wiring labels require zooming; some hydraulic schematic labels overlap colored circuit lines.

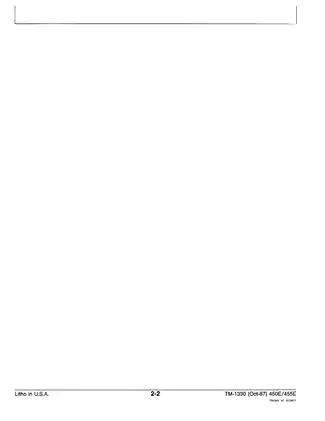

One printable English-language PDF contains 266 pages, including the front and back covers and 23 blank or header/footer-only pages.

Engine, H-L-R and Hydraulic Testing

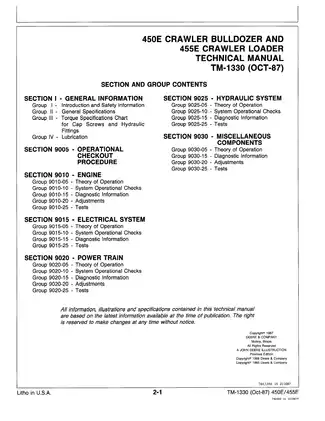

These selected coverage highlights show part of the manual’s contents. Further topics include fuel-storage practices and cold-weather lubricant selection.

• Engine diagnosis: Compression, valve lift, crankshaft end play, turbocharger clearance and boost tests, fuel-transfer pressure checks, and injection-pump static timing adjustment.

• Electrical troubleshooting: Battery load testing, starting and neutral-start circuit checks, alternator and regulator diagnosis, and gauge and sender tests.

• H-L-R transmission: Pump-flow and clutch-leakage tests, shift-linkage adjustments, cooler-restriction checks, and accumulator pressure-response illustrations.

• Steering and undercarriage: Separate lever-steer and pedal-steer adjustments, brake self-adjuster settings, and track, bushing, idler, and roller wear measurements.

• Hydraulic diagnosis: Pump-flow, system and circuit relief-valve tests, cycle-time checks, and loader, dozer, backhoe, and stabilizer cylinder drift tests.

• Winch and attachments: Winch pressure and pump tests, control-lever and brake-band adjustments, loader return-to-dig settings, lumber-fork tine adjustment, and ripper settings.

Written for experienced service technicians, this manual assumes familiarity with machine diagnosis and the pressure gauges, flow meters, and other test equipment specified for each procedure.

Engine Performance and Electrical Fault Tracing

The operational checks and malfunction charts provide a logical framework to isolate issues with engine performance, power train efficiency, and hydraulic pressure before major assemblies are opened.

Step-by-step injection-pump timing and valve-clearance procedures identify the required flywheel rotation tool and timing pin. Engine testing also covers oil pressure, cooling-system leakage, radiator airflow, and turbocharger bearing movement, with the applicable equipment and test conditions.

The Electrical Pictorial Diagram, Wire Routing Chart, and Connector and Ground Locations connect circuit diagnosis to the machine’s harness layout. Numbered electrical test points are paired with voltage tables to help distinguish wiring faults from component faults.

Transmission, Steering and Track Assessment

Transmission tests compare main and lubrication pressure with cooler flow to distinguish pump, relief-valve, and clutch-leakage problems. Accumulator illustrations explain rapid high-low shifts and modulated direction changes; power-flow drawings trace the drivetrain through the steering clutches and final drives.

Lever-steer and pedal-steer linkage settings are treated separately. The shift-adjustment section warns that sluggish engagement generates heat and can glaze clutch friction disks.

Undercarriage assessment includes track pitch, bushing diameter, grouser height, link height, and idler and roller wear. Sprocket tooth-tip wear alone is not treated as a service-life measure. Reverse track popping under heavy load is explained by recoil-spring movement that protects the powertrain and track components.

Dozer, Loader and Backhoe Hydraulics

The color-coded Loader Hydraulic System Schematic and Dozer Hydraulic System Schematic trace oil through control valves, lift checks, relief valves, and cylinders. Pump-flow and cycle-time tables distinguish loader, standard dozer, backhoe-equipped dozer, and Long Track configurations.

Backhoe coverage includes control-valve operation and separate 9300 and 9550 cylinder-drift data. The tests distinguish cylinder leakage from valve leakage rather than treating every drifting function as a failed cylinder.

The backhoe sections warn that missing return orifices can allow excessive function speed and damage components.

Winch and Return-to-Dig Checks

Winch oil-flow views explain wind, hold, and free-spool operation. Diagnostic charts and tests address brake slippage, clutch drag, pressure loss, and leakage at the brake piston or clutch pressure plate.

Loader return-to-dig coverage links switch and rod adjustment with electrical diagnosis of the holding solenoid.

Always ensure machine power is secured and hydraulic pressure is fully relieved before service. Running diagnostic tests require the specific precautions and machine setup given in the manual.

Capacity, Valve-Clearance and Torque Preview

Fluid capacities: The capacity table lists engine coolant at 15.0 L for the standard 450E and 455E, versus 16.9 L for the 450E Long Track. The 455E hydraulic reservoir is listed separately at 7 U.S. gal (26.5 L).

Valve adjustment: The intake-valve clearance specification is 0.36 mm (0.014 in.), accompanied by timing-position illustrations and an adjustment procedure.

Hardware torque: The metric standard-thread chart lists 206 N·m (152 lb-ft) for M16 class 8.8 hardware with SAE 30W oil on the threads; the chart applies unless a component-specific torque is given.
