John Deere 450E / 455E Crawler Technical Manual (P/N TM-1330)

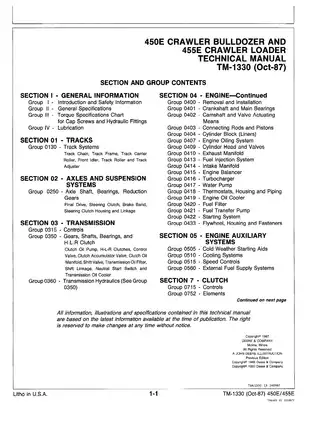

This 772-page PDF reproduces the complete October 1987 revision of John Deere Technical Manual TM-1330 for the 450E Crawler Bulldozer and 455E Crawler Loader. Deere states that the manual was written for experienced service technicians, so it assumes shop knowledge and appropriate lifting, pressing, measuring, and hydraulic service equipment rather than teaching basic service fundamentals.

• Undercarriage and steering repair covers track chains, frames, carrier and track rollers, front idlers, hydraulic tension adjusters, recoil springs, sprockets, alignment, final drives, steering clutches, brake bands, and steering/brake linkage.
• H-L-R transmission procedures include unit removal and installation, clutch oil pump and valve service, high-range and low/reverse clutch-pack overhaul, countershafts, output shaft, bearing preload and backlash checks, and neutral-start switch adjustment.
• Engine work runs from removal, installation, and break-in through crankshaft and main bearings, pistons and liners, cylinder head and valves, camshaft and timing gears, engine balancer, fuel injection, turbocharger, cooling components, and starting motor tests.
• Dozer coverage separates the 6405 blade and angling/C-frame arrangement, including 6405-1/6405-2 wide-track blades, from the 6410 and 6415 blade, boom, and lift-frame configurations, with dedicated hydraulic and linkage repair procedures.
• Loader and backhoe sections cover the 455E bucket, multi-purpose bucket, lumber/pulpwood forks, loader frames and hydraulics, plus separate removal, frame, linkage, control-valve, and cylinder repair chapters for the 9300 and 9550 backhoes.
• Winch and rear-equipment service includes winch drive/clutch overhaul and adjustment, hydraulic pump and control-valve repair, the 1000-rpm powershaft drive, log arch, and ripper frame, teeth, mounting bracket, and cylinder.
• Factory reference data includes component torque tables, capacities, wear limits, clearances, spring test specifications, bearing preload and backlash data, electrical test values, service-material callouts, Service-Gard tooling, and dealer-fabricated tool drawings.

Undercarriage, Drivetrain, and Engine Repair

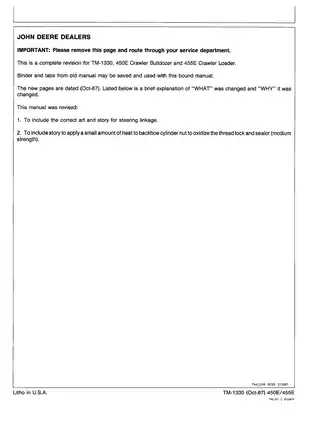

The track chapter goes well beyond routine adjustment. It documents chain removal, pressing, disassembly and assembly; shoe inspection; carrier roller, track roller, front idler, tension adjuster, and recoil-spring service; track-frame inspection; track sag and alignment; and undercarriage wear measurements. Final-drive instructions cover removal, teardown, assembly, installation, and pinion-shaft preload, while the steering chapter handles clutch and brake-band repair along with the corrected steering-linkage material added in this October 1987 revision.

The H-L-R section reaches the internal oil pump, front-cover valves, accumulator, oil manifold, shift valve, clutch packs, countershafts, ring gear, rear drive shaft, and output shaft. Engine repair covers the four-cylinder turbocharged diesel, including valve-clearance work, timing-gear installation with the JD-254 timing tool, liner and piston service, fuel-injection pump/nozzle work and bleeding, turbocharger overhaul, water-pump repair, and starting-motor diagnosis.

Implements, Hydraulics, and Variant Differences

The attachment sections distinguish the 6405-1 and 6405-2 blades used on wide-track machines, the 6405 angling frame and C-frame, the 6410/6415 boom and lift frame, and the 6415-specific tilt-cylinder hardware. Loader coverage includes bucket and boom cylinders, the multi-purpose bucket clam cylinder, lumber-fork clamp cylinder, return-to-dig components, control valve, and hydraulic pump. Both backhoe versions receive their own frame, bucket, linkage, valve, manifold, anti-cavitation, relief-valve, and cylinder procedures rather than being treated as interchangeable.

Winch repair also carries a useful serial break: clutch-cover sealing and bearing arrangements differ between units through serial 390307 and units from 390308 onward. The manual provides the matching disassembly and assembly coverage, plus drum-bearing adjustment, ring-and-pinion backlash, tooth-bearing pattern checks, seal testing, brake-band adjustment, and free-spool adjustment.

Drawings, Tools, and Shop Cautions

The illustration set is mechanical and hydraulic rather than a full-machine wiring-diagram package. Named examples include the track-chain link connection cross section, loader boom/lumber-fork clamp-cylinder cross section, dozer control-valve blade-angle/auxiliary and tilt sections, backhoe control-valve boom section, and 9550 swing-cylinder cross section. Electrical repair is limited to batteries and cables, alternator disassembly/testing and operational checks, the disconnect switch and hour meter, wiring harness service, and instrument-panel removal and installation.

Tool references include the JD-284 track-adjuster service set, JD-295 H-L-R clutch lifting/holding tool, JDG-440 neutral-start switch tool, and JD-254 timing tool. Section 99 adds fabrication drawings for tools such as the JT38014 final-drive lifting tool, JT38025 swing-cylinder bar, and JT38037 transmission lifting plate.

The manual flags repair traps that matter in the shop. On the 9300 crowd cylinder, cured thread locker can make the piston-rod nut tight enough to damage the rod if it is forced loose; excessive heat can damage the nut or nylon insert. During alternator teardown, prying too far between the housings can damage the stator windings. Because many procedures involve pressurized hydraulics, track recoil springs, raised loader or backhoe structures, and heavy drivetrain assemblies, follow the manual's blocking, pressure-release, and lifting precautions before beginning repair work.
