John Deere 450H / 550H / 650H Crawler Dozer Operation and Test Technical Manual (TM1743)

• Document identity, machine coverage, and scope: John Deere Technical Manual TM1743, revision 07JUN04, is a 1,102-page English PDF for 450H, 450H-LT, 450H-LGP, 550H, 550H-LGP, 650H, and 650H-LGP H-Series crawler dozers. It is the Operation and Test volume; full component repair or overhaul requires TM1744 and the referenced component manuals.
• Operational checkout paths cover cooling, air intake, lubrication, fuel delivery, engine performance, hydrostatic drive, electrical controls, implement hydraulics, undercarriage, accessories, and cab HVAC.
• PowerTech 4045D/4045T engine coverage includes system theory, visual inspection, symptom charts, engine-speed and linkage adjustments, injection-pump dynamic timing, fuel-system testing, and turbocharger boost testing for equipped engines.
• Electrical and transmission-control sections provide serial-specific System Functional Schematics, harness diagrams and component locations, circuit diagnosis, sensor and solenoid tests, stored-code access, display programming, and controller calibration for standard and Speed In Grip controls.
• Implement hydraulic procedures cover the pump, reservoir, filter, control valve, lift/angle/tilt circuits, linkage adjustment, flow and relief testing, cylinder drift/leakage checks, and oil cleanup with a portable filter caddy.
• Hydrostatic drive testing addresses charge pressure, PCP and PDCV control, park-brake and SLC adjustments, pump/motor startup and flushing, efficiency and relief-valve tests, tracking faults, low power, overheating, and no-travel conditions.
• Cab HVAC and shop-reference material covers R134a pressure diagnosis, component and electrical tests, refrigerant recovery, evacuation, charging, purging, and flushing, along with torque tables, fluid-capacity data, wear limits, approved-fluid specifications, and tool lists.

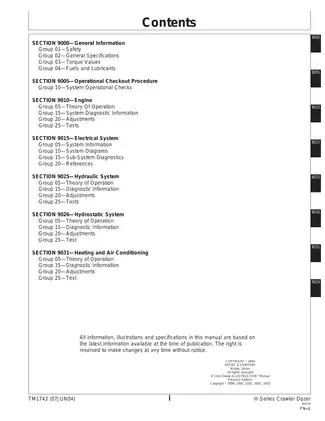

Operational and Diagnostic Coverage

The manual follows a practical shop sequence: operational checkout, system theory, symptom diagnosis, adjustment, and instrumented testing. The checkout pages let a technician evaluate machine operation before opening a circuit, then direct a failed check to the correct engine, electrical, hydraulic, or hydrostatic group. Cooling-system checks cover radiator condition, airflow, combustion-gas indications, hoses, water-pump leakage, fan installation, shroud clearance, and belt condition. The engine section follows with 4045 system descriptions and malfunction charts for starting, power, temperature, lubrication, smoke, noise, and turbocharger complaints. Its specification sections distinguish naturally aspirated 450H/450H-LT applications from turbocharged 450H-LGP and 550H/650H builds.

The hydrostatic material goes well beyond a general system overview. Flow charts isolate overheating, low charge pressure, mistracking or indexing, failure to reach full speed, low power, both tracks not moving, one-direction or one-track loss, and controller calibration failures. Factory procedures cover brake and park-lock linkage adjustment, motor and pump speed-sensor adjustment, PCP and PDCV setup, transmission efficiency, charge-pump flow, cooler-bypass operation, motor angle control, and towing preparation. Use this volume to locate the fault before repair and to confirm machine performance after repair.

Serial-Specific Diagrams, Tools, and Scope

Serial breaks are tied directly to the affected systems. Hydraulic schematics and blade-angle circuit coverage change at S.N. 902404/902405, while hydrostatic operating diagrams change at S.N. 908551/908552. Electrical System Functional Schematics split at S.N. 883588/883589, with later coverage changes at 910010/910011 for 450H/550H and 924717/924718 for 650H; a dedicated 650H 910011-924717 schematic set is included. Transmission-controller calibration is divided around S.N. 899547/899548 and 910010/910011, with separate standard and Speed In Grip procedures.

Diagram examples include serial-specific System Functional Schematics, Engine Harness (W6) and Transmission Harness (W7) wiring diagrams, Hydraulic System Schematics, Hydrostatic System diagrams for park-brake, reverse, and forward operation, the Air Conditioning (W8) Wiring Diagram, and the Heater Blower Circuit Schematic. The controller reference section identifies 62 diagnostic trouble codes and 44 calibration codes, then covers stored-code access, rate settings, machine identity plugs, default values, and display-monitor programming.

Representative service references include the JT07329 test harness kit, JT07349 transmission-controller test box, JT05800 digital thermometer, JT07158 TIME TRAC kit, D18018KD A/C gauge set, and JT02045 R134a recovery/recycling/charging station. The publication also calls out SERVICE ADVISOR connection T133991.

Two manual-specific cautions matter during repair work. After hydrostatic pump repair, pump null adjustment must precede controller calibration; the wrong sequence can trigger calibration or diagnostic codes. On hydraulic fittings, petroleum jelly is acceptable for a standard O-ring groove but can push the seal out of a half-dovetail captive groove before tightening.

This publication supplies theory, diagrams, diagnostics, test values, torque tables, capacities, wear limits, approved-fluid data, and selected adjustments. It does not replace TM1744 for crawler component repair, CTM104/CTM207/CTM331 for engine work, CTM77 for alternators and starters, CTM166 for the 4000S winch, or TM-H120A for 120 Series hydraulic cylinders. Those referenced publications are separate.

Hydraulic pressure testing, raised-machine track checks, towing procedures, and R134a service involve stored pressure, moving components, and heavy-machine hazards. Follow the manual’s blocking, pressure-relief, electrical-isolation, and refrigerant-recovery precautions, and perform the work only with appropriate training.
