1995- John Deere 750C & 850C Crawler Dozer Operation & Test Manual (P/N TM1588)
880 Pages • Printable PDF • 59.04 MB • Download
John Deere Models Covered & Key Technical Specifications
Models: 750C, 850C, 750C Series II, 850C Series II
Sub-models / Variants: WT (Wide Track), LGP (Low Ground Pressure), LT (Low Track), Semi-U Blade, Straight Blade, Angle Dozer, All-Hydraulic Dozer (PAT)
750C Steering Variants: Single Lever Steer with coupled transmission and engine decelerator (Machine ID 03, 556/600 program); Single Lever Steer with transmission-only decelerator (Machine ID 04, 556/600 program); Pedal Steer (Machine ID 06, 556/600 program, S.N. —883331); Single Lever Steer with coupled decelerator and Speed In Grip (SIG), 703 program, S.N. 883332— (Machine ID 05 with large rotary sensor; Machine ID 02 with small rotary sensor)
850C Steering Variants: Single Lever Steer with coupled transmission and engine decelerator (Machine ID 11, 556/600 program); Single Lever Steer with transmission-only decelerator (Machine ID 12, 556/600 program); Pedal Steer (Machine ID 14, 556/600 program, S.N. —883331); Single Lever Steer with coupled decelerator and Speed In Grip (SIG), 703 program, S.N. 883332— (Machine ID 13 with large rotary sensor; Machine ID 10 with small rotary sensor)
Additional Serial Breaks: 750C and 850C: S.N. —875378 / 875379— for engine-speed control and transmission-controller calibration; S.N. —895413 / 895414— for heater-blower fuse specification; S.N. —904934 / 904935— for hydraulic pump configuration. 850C: S.N. —847803 / 847804— for throttle-sensor attachment.
Model Years: 1995–
-
Engine: John Deere 6-Cylinder Turbocharged Diesel: 750C — 6068T (S.N. —831315), POWERTECH 6068T (S.N. 831316—); 850C — 6076T (S.N. —822867), POWERTECH 6081AT (S.N. 822868—)
-
Displacement: 6.785 L (750C), 7.6 L (850C with 6076T), 8.1 L (850C with 6081AT)
-
Electrical System: 24-volt with 45-amp alternator
-
Transmission: Dual-path hydrostatic with infinite speed control
-
Blade Capacity: 2.26 m3 to 8.10 m3 depending on model and blade type
-
Operational Weight: 14,105 kg to 20,823 kg range
-
ROPS Mounting Bolt Torque: 410 ± 82 N•m (300 ± 60 lb-ft)
John Deere Manual Features & Content Preview
John Deere Technical Manual TM1588, dated June 30, 2004, covers operation and testing for 1995–Present John Deere 750C and 850C crawler dozers, including 750C Series II and 850C Series II. Coverage includes WT, LGP, LT, and All-Hydraulic Dozer/PAT configurations, with procedures distinguished by engine, steering controls, and machine serial number.
- Operational checkout: Functional checks cover battery disconnect operation, monitor displays, engine controls, park brakes, steering response, and blade hydraulics before detailed diagnosis.
- Engine testing: Procedures address fuel-system bleeding, compression, intake leakage, turbocharger boost, fuel-transfer pressure, injection timing, and engine-speed adjustments for the applicable engine.
- Electrical diagnosis: Wiring diagrams, component locations, fault-code charts, and circuit tests support troubleshooting of the display monitor, engine controller, and transmission controller.
- Hydrostatic testing: Pump flushing, initial startup, pressure control pilot checks, relief-valve testing, charge-pump flow measurement, and transmission-efficiency tests address drive-system faults.
- Blade hydraulics: Control-valve cross sections and circuit explanations accompany relief-pressure tests, cylinder-drift checks, leakage isolation, pump-flow testing, and hydraulic oil cleanup.
- Undercarriage and climate systems: Track wear measurements, sag and idler adjustments, brake linkage checks, and R134a air-conditioning diagnostics cover chassis and cab systems.
Written for experienced technicians, this manual assumes familiarity with service practices and the test equipment specified for each procedure.
Operational Checkout and Diagnostic Structure
The initial operational checkout uses observations and functional checks without special tools or gauges. When a fault appears, the diagnostic charts direct the technician toward the relevant adjustments and tests. Detailed pressure, flow, and electrical testing requires the equipment listed for that procedure.
Engine sections distinguish the 6068, 6076, and 6081 engine families and include sectional views, malfunction charts, fuel bleeding, and speed-control adjustments. The manual also provides fluid specifications, transmission capacities, cooling-system information, and fastener torque tables.
TM1588 supplies operation, diagnosis, adjustments, and tests. Component removal, installation, and overhaul instructions are referenced to the separate TM1589 repair manual and applicable engine manuals, which are not included in this PDF.
Wiring, Fault Codes, and Controller Calibration
Cab Harness W6 and Engine/Pump Harness W8 wiring diagrams are paired with component-location drawings and circuit explanations. Diagnostic procedures address power supply, starting, charging, engine-speed control, monitor indications, transmission load sensing, and brake engagement.
Calibration instructions distinguish pedal steering, single-lever steering, and Speed In Grip controls. Machine identity plugs and controller program versions determine the applicable procedure. The electrical section also covers display programming and ServiceEXPERT computer connections.
Hydrostatic Fault Isolation and Component Protection
The hydrostatic sections explain pressure control pilots (PCPs), pump and motor displacement control valves, charge circuits, and multi-function relief valves. Schematics show neutral, forward, reverse, and park-brake conditions.
PCP manual-override testing helps separate an electrical control problem from a hydraulic response problem. The transmission-efficiency procedure compares controller current with system pressure and includes follow-up isolation of pump versus motor leakage. Specified equipment includes the JT07237-4 test harness.
Pump flushing and the initial startup procedure address servicing after major component work. Restarting after a pump or motor case has drained without following the prescribed startup procedure can damage internal components. During PCP adjustment, overtightening the slotted access screw can damage the threads in its plastic cover.
These procedures involve pressurized oil, rotating tracks, and a tilted cab or ROPS; follow the manual’s support, isolation, and test-setup requirements.
Blade Hydraulics, Undercarriage, and R134a Service
Hydraulic control-valve cross sections explain lift, tilt, angle, and auxiliary functions. Cylinder-drift and leakage tests distinguish valve leakage from cylinder sealing problems. Quick-drop valve coverage applies to the relevant blade configurations; the All-Hydraulic Dozer/PAT arrangement does not use that valve.
Undercarriage coverage includes roller, idler, bushing, link, and grouser wear measurements, together with track sag and front-idler adjustments. Final-drive and park-brake operating descriptions support the associated checks.
The R134a section covers compressor oil assessment, recovery, evacuation, charging, leak detection, expansion-valve operation, and pressure-switch testing. Component-location drawings and a pressure diagnostic chart accompany the electrical checks.
Selected Undercarriage Adjustment Specifications
For the covered crawlers, lubricated track-chain sag is specified as 51 ± 6 mm (2 ± 1/4 in.), measured at the lowest point between the carrier roller and front idler with a link pin centered on the carrier roller.
Front-idler vertical adjustment distinguishes a maximum guide-block-to-wear-strip gap of 3 mm (0.120 in.) from the adjusted gap of 0–1 mm (0–0.040 in.). The accompanying procedure explains shim placement and wear-strip inspection.

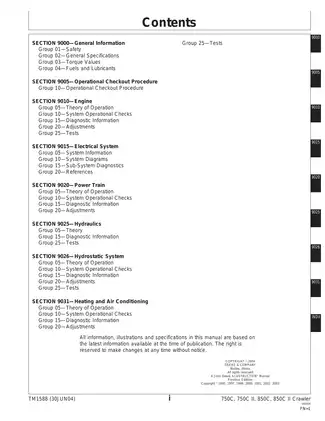

TM1588 PDF Navigation and Page Contents
Text search and diagram navigation: Manual text is searchable, but labels within some diagram images are not. Embedded bookmarks cover chapters and individual procedures; some later links open before their intended section. Small labels on dense wiring pages require zooming.
Supplied as one printable PDF containing 880 pages, including 18 additional diagram-detail pages and two inserted blank pages.
