1998 Fiatallis FD80 / FD80LGP Hydrostatic Crawler Dozer Operation, Maintenance & Service Manual Set (P/N 604.03.394.00)

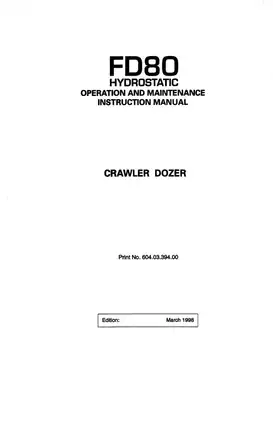

This Fiatallis manual set covers the FD80 hydrostatic crawler dozer and its FD80LGP configuration. It combines the March 1998 Operation and Maintenance Manual, Print No. 604.03.394.00, with the March 1998 Service Manual, 60406841, Issue 1. D80 and D80LGP references concern ROPS/FOPS certification; they do not establish full repair coverage for those models.

The operation manual supplies operating instructions and scheduled care. The service manual adds component repair and diagnosis, referring back to the operation manual for routine hydraulic-system maintenance.

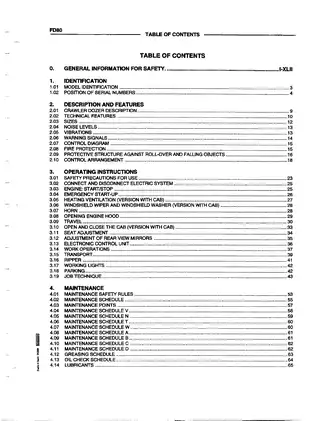

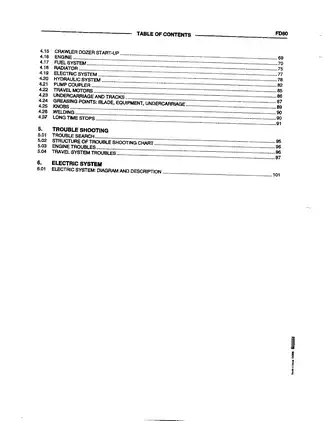

Operation, Repair and Diagnostic Coverage

• Operation and safety: Dashboard controls, starting and shutdown, emergency starting, blade and ripper use, machine transport, recovery, and ROPS/FOPS precautions.

• Routine maintenance: Inspection schedules, greasing points, fluid specifications, filter replacement, cooling-system care, track adjustment, and engine and travel troubleshooting charts.

• Hydrostatic transmission: Travel-pump and motor disassembly, inspection and reassembly, pressure testing, control adjustments, pump-coupler service, and hydraulic fault-isolation charts.

• Final drives and undercarriage: Planetary reduction gear overhaul, wet-disc brake checks, split-link track repair, recoil-spring handling, and roller and idler service.

• Equipment hydraulics: Gear-pump overhaul, distributor and servocontrol service, blade-cylinder repair, cutting-edge replacement, and diagrams for lift, angle, and tilt circuits.

• Electrical diagnosis: System wiring diagrams, MC7 controller connections, BB3 diagnostic-terminal functions, sensor checks, stored fault identification, and control-learning procedures.

This set supports trained operators performing routine care and experienced service technicians equipped for hydraulic testing and overhaul; MC7 calibration is assigned to service personnel.

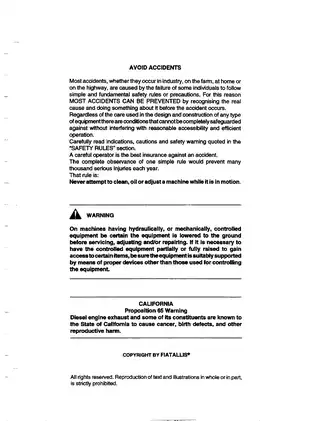

Operation and Scheduled Care

Operating instructions explain hydrostatic drive controls, electronic power management, six-way blade operation, manual blade-pitch adjustment, and the optional ripper. Safety decals, transport and recovery guidance, and vibration measurements accompany the operating sections.

Maintenance charts connect inspections with lubrication and oil checks. Fuel-filter and water-separator service, radiator cleaning, coolant capacities, and hydraulic-oil temperature guidance support routine care of the Cummins engine and hydraulic systems.

Engine repair scope: The service manual's engine chapter refers to the engine manufacturer's separate manual. Internal engine overhaul procedures are not included in this set.

Hydrostatic Drive Testing and Repair

Pressure-test connections and troubleshooting charts distinguish boost-pressure, pilot-control, pump, and travel-motor faults. This helps technicians investigate poor travel performance before choosing which component to dismantle.

A4VG pump sectional views and A6VE motor illustrations accompany seal replacement, rotary-group inspection, and reassembly. The manual identifies motor-removal tooling and covers mechanical-zero and pressure adjustments; some motor setting dimensions and bearing torques require separate service information.

Final Drives, Tracks and Blade Hydraulics

The gearbox exploded view supports planetary-stage and wet-disc brake work, including a seal-pressure test after assembly. The travel motors and reduction units have separate lubrication arrangements.

SALT split-link tracks, idlers, carrier rollers, and bottom rollers receive removal and overhaul coverage, supported by undercarriage wear-limit illustrations. The track-adjuster grease circuit and compressed recoil spring have distinct hazards; spring disassembly requires the specified press procedure.

Equipment-hydraulic diagrams connect the distributor, servocontrols, and blade cylinders. Repair sections address cylinder seals, pump inspection and flow testing, C-frame removal, and blade cutting edges.

MC7 Controls and Electrical Fault Finding

The electrical system diagram, connector information, and MC7 GS/11 diagnostic sections support tracing control faults. BB3 terminal instructions cover process values, current and stored errors, and throttle and inching learning functions.

Sensor coverage includes the Helag 720 angle sensor and engine-speed pickup. Emergency-start precautions address possible microprocessor damage from incorrect electrical connections; hydraulic service also requires pressure release before lines are opened.

Selected Track and Brake Specifications

The track data specifies a link pitch of 155.57 mm (6.12 in). The maintenance section gives a track-chain deflection of 3–4 cm between the support roller and idler, illustrating how the manual distinguishes component dimensions from an in-service adjustment check.

For the final-drive brake seal test after assembly, the service manual specifies 50 bar for three minutes. A pressure drop indicates seal leakage requiring further attention.

Bookmarks, Diagram Legibility and File Contents

Navigation, search and diagrams: Chapter bookmarks serve both manuals, but the two MAIN MENU links target a separate file. The PDF has no searchable text layer. Small wiring labels need enlargement, and some remain difficult to read in the reduced service-manual diagram; the operation manual contains a larger electrical diagram.

The set is supplied as one printable English PDF with 388 pages. This total includes both publication covers, one additional introductory page, and two repeated pages within the operation manual.
