Komatsu D80A-12 / D85A-12 Bulldozer Shop Manual, 1968-1976 (P/N D80,85A, 12-BE2)
378 Pages • 1 Printable PDF (English) • Download
Komatsu Models Covered & Key Technical Specifications
Models: D80A-12, D85A-12
Sub-models / Variants: Angledozer, Tilt Dozer
Model Years: 1968-1976 (1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976)
Serial Numbers: 10001 and up
Torque Converter Serial Ranges (D85A-12): 10001-11839; 11840 and up
Tilt Blade Serial Range: 15478 and up
Glow-Plug Wiring Detail: Serial numbers 10005, 10006, 10009, 10010
-
Engine: Cummins NH-220-CI diesel
-
Flywheel Horsepower: 180 HP
-
Piston Displacement: 12170 cc (743 cu. in.)
-
Transmission Type: Constant-mesh (D80A-12), Planetary gear/multiple disc clutch Torqflow (D85A-12), optional F3-R3 Torqflow transmission
-
Operating Weight: 20000 kg (44,092 lb) (D80A-12 Angledozer); 20600 kg (45,410 lb) (D85A-12 Angledozer)
-
Fuel Tank Capacity: 420 liters (111 U.S. Gal.)
-
Control Valve: Spool type, Raise/hold/lower positions; float position on the single-spool Angledozer valve
Komatsu Manual Features & Selected Content Preview

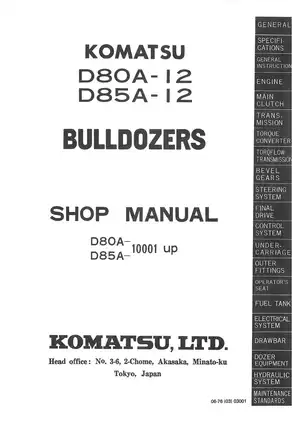

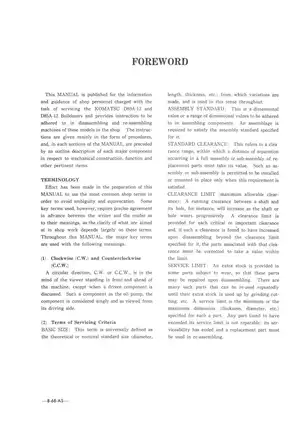

This Komatsu shop manual covers D80A-12 and D85A-12 bulldozers, serial 10001 and up, including angledozer and tilt-dozer equipment and the Cummins NH-220-CI engine installation. The cover identifies the manual as P/N D80,85A, 12-BE2.
PDF Search, Diagram Detail and Included Sections
Text access and diagram labels: Text search is limited to the added cover; the shop-manual pages are not searchable. There are no embedded PDF bookmarks. Small wiring and hydraulic labels require zooming, and several schematics are oriented sideways.
One printable PDF contains 378 pages of English shop-manual material, including an additional cover with a German safety notice and 38 blank pages. The total also includes the 22-page optional F3-R3 transmission section and six-page torque-converter maintenance-standards appendix, including their blank pages.
Driveline, Undercarriage and Implement Repair
The following selected topics show the manual's repair coverage rather than reproduce its full contents. Other included subjects include fuel-tank disassembly and operator-seat inspection.
-
D80A-12 driveline: Wet multi-disc over-center main clutch repair, hydraulic booster inspection, inertia-brake adjustment, constant-mesh transmission overhaul, shift interlock, gearshift lever and fork service, and lubrication-system descriptions.
-
D85A-12 driveline: Step-by-step torque-converter removal and assembly, scavenge-pump and pressure-relief-valve service, planetary Torqflow transmission teardown, clutch inspection, and control-valve repair.
-
Optional F3-R3 Torqflow: Drive-flow explanations, transmission disassembly and assembly, inspection criteria, control-valve checks, hydraulic circuit diagrams, and transmission pressure measurement and adjustment.
-
Steering and final drive: Bevel gear and shaft removal, tooth-contact adjustment, steering clutch and brake repair, steering control-valve inspection, and final-drive disassembly and assembly.
-
Undercarriage and dozer equipment: Track opening, track-frame removal, front-idler and roller service, recoil-spring work, equalizer-bar inspection, blade and push-arm repair, and cylinder-stay service.
-
Implement hydraulics: Control-valve and oil-filter service, lift- and tilt-cylinder rebuilding, PAL-160 pump construction, and component-specific assembly clearances, wear limits, spring criteria, torque specifications and fluid-capacity data.
Written for shop personnel, this manual is suited to experienced heavy-equipment technicians with the lifting gear, presses, dial gauges and service tools used in its procedures.
Serial-Specific Converter and Transmission Details
Separate torque-converter chapters cover S/N 10001-11839 and S/N 11840-up. The earlier converter uses two stators with freewheeling mechanisms; the later design uses a stationary stator. Matching the chapter to the machine's serial number helps identify the correct internal construction before overhaul work or parts selection.
The optional F3-R3 section describes a different clutch arrangement from the main Torqflow chapter. Its inspection tables distinguish clutch-disc and plate limits, valve clearances and spring criteria. The dozer-equipment section also identifies the S/N 15478-up tilt-blade arrangement.
Configuration-Specific Implement Hydraulics
The hydraulic section separates four control arrangements: the angledozer valve, the angledozer-and-ripper valve, the triple-spool valve for a tilt dozer with ripper, and the twin-spool tilt-dozer valve.
It explains the check, suction, safety and control valves and traces oil through the tank, pump, filter, blade-lift cylinders, tilt cylinder and ripper circuit where fitted. Cylinder procedures include inspection of rods, bores, piston rings and sealing components.
Powertrain layouts, the constant-mesh transmission lubrication diagram, torque-converter oil-circuit views, Torqflow hydraulic schematics and steering-control-valve flow diagrams support component identification and oil-path tracing. Exploded views show installed relationships within the drivetrain, undercarriage, blade and hydraulic cylinders.
Shop Tools and Repair Cautions
The manual identifies special tools where ordinary pullers or shop methods could damage parts: 09780-00000 for the bevel-gear hub, 09713-00000 and 09703-00000 for final-drive work, 09731-00000 for opening tracks, and 09730-00000 for recoil-spring compression.
The F3-R3 assembly notes flag ring-gear orientation and piston-ring damage, with a piston operation test before the transmission case is closed. The D80 clutch-booster section explains how blocked pump flow can rapidly damage the booster or pump and describes the protective relief valve.
Track tension, recoil-spring work, and engine or transmission removal involve stored pressure and suspended heavy assemblies. Pressure must be relieved and the specified press, lifting gear and supports used before repair work begins.
Engine and Electrical Scope Limits
The engine chapter covers radiator removal, engine and PTO removal, PTO disassembly and inspection, installation, and engine-to-transmission centering. It does not provide an internal Cummins engine overhaul.
Electrical coverage consists of the machine wiring diagram and basic system description, including a separate glow-plug detail for specified machine serial numbers. Complete electrical-component operation and maintenance are covered in the separate publication Electrical Equipment for KOMATSU-CUMMINS Diesel Engines, which is not included.
Examples of F3-R3 Pressure and Wear Specifications
For the optional F3-R3 transmission, the pressure-test specifications are 12.5 ± 1.25 kg/cm² in neutral and 20.0 ± 2.0 kg/cm² in a selected gear. The stated test conditions are oil at 50–60°C, engine speed of 1850 rpm and the brake pedal depressed.
Its inspection table gives a standard backlash of 0.14–0.37 mm between the No. 1, 3 and 4 sun gears and their planetary gears, with a clearance limit of 0.75 mm.
