Komatsu D68E-1, D68E-1A, D68P-1 & D68P-1A Bulldozer Shop Manual (P/N SEBMU1440102)
409 Pages • 1 Printable PDF (English) • Download
Komatsu Models Covered & Key Technical Specifications
Models: D68E-1, D68E-1A, D68P-1, D68P-1A
Sub-models / Variants: Brazilian (D68E-1A, D68P-1A); ripper attachment (DRP060)
Engine / Transmission: 6D125-1 engine; TORQFLOW planetary transmission with TCS38-1C torque converter
Serial Numbers: D68E-1 (1001 and up), D68E-1A (B1001 and up), D68P-1 (45590 and up), D68P-1A (B1001 and up)
-
Engine speed (max, no load): 2,050–2,150 rpm
-
Engine speed (min, no load): 600–630 rpm
-
Valve clearance (intake/exhaust): 0.33 mm / 0.71 mm (cold)
-
Compression pressure (standard minimum): 34 kg/cm²
-
Engine oil pan capacity (refill): 26 liters
-
Engine assembly weight: 1,250 kg (general weight table), 1,500 kg (engine removal procedure)
-
Radiator/torque converter cooler assembly weight: 180 kg
Komatsu Manual Features & Selected Content Preview

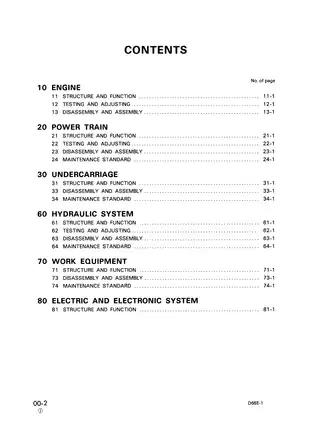

This Komatsu shop manual (P/N SEBMU1440102) covers the D68E-1, D68E-1A, D68P-1, and D68P-1A bulldozers, including the Brazilian configurations. It explains how the assemblies work and provides workshop procedures for testing, adjustment, and repair.
PDF Navigation and Diagram Detail
Text search and wiring labels: Text search is limited to the cover, and the PDF has no embedded bookmarks. Zoom in to read small connector numbers and wire codes in the electrical circuit diagram.

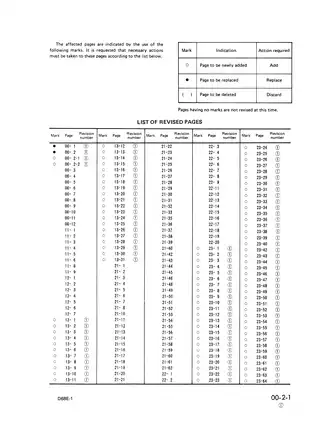

The download is one printable English-language PDF. Its 409 pages include the cover, two revision-list pages, and 35 blank pages.
Engine, TORQFLOW, and Blade Service
These selected topics show the range of workshop procedures. The manual also covers the reversible cooling fan and dashboard removal and installation.
- Engine and fuel system: Engine and cylinder-head removal and installation, valve-clearance checks, compression testing, injection-pump timing, and nozzle-holder replacement.
- Cooling system: Removal and installation of the water pump, radiator, torque-converter cooler, and radiator guard, plus service procedures for the engine and steering oil coolers.
- TORQFLOW power train: Torque-converter and planetary-transmission teardown and reassembly, transmission control-valve service, clutch-piston checks, and hydraulic pressure testing.
- Steering and final drive: Steering-clutch overhaul, brake and linkage adjustment, bevel-gear setup, final-drive teardown, and component inspection standards.
- Undercarriage: Track-frame and recoil-spring service, idler and roller replacement, and procedures for separating and reconnecting master-link tracks.
- Blade hydraulics: Pump and control-valve replacement, lift and tilt cylinder rebuilding, air bleeding, and troubleshooting for weak lift or excessive cylinder drift.
- Electrical references: Wiring and circuit diagrams, wire-size and color-code tables, and removal and installation procedures for the starter motor and alternator.
Komatsu wrote this manual for service technicians performing workshop repairs. Some procedures call for lifting equipment, a press, or Komatsu service tools.
Injection Timing and Engine Installation
The step-by-step injection-timing procedures use match-mark alignment when the original, unrepaired pump goes back onto the same engine. A replacement or repaired pump calls for the delivery-check method. The compression test identifies the gauge and adapter needed for the measurement.
Engine mounting drawings show where shims set the alignment with the transmission. General reference tables give component weights, fluid capacities, and standard tightening torques, with assembly-specific torque values in the relevant procedures. Complete internal overhaul of the 6D125-1 requires the separate engine shop manual.
Power-Train Diagnosis and Bevel Gear Setup
Use the symptom charts with the oil-pressure test point diagrams to narrow down causes of torque-converter overheating, weak drawbar pull, or delayed shifting before teardown. The manual also gives test and adjustment procedures for the main clutch and inertia brake.
The No. 3 clutch section explains how its ball check valve drains trapped oil so the clutch can release during a shift. Transmission reassembly notes cover seal-ring orientation. The bevel gear procedure shows how to check tooth contact after gear and pinion replacement.
Track Designs, Blade Hydraulics, and Rippers
Track specifications distinguish master-pin and master-link designs, with separate wear standards and master-link bolt tightening requirements. Recoil-spring disassembly calls for compressor 791-685-8002. The idler and roller sections give measurement methods and repair limits.
Hydraulic coverage includes the PAR112 pump and the two-spool blade control valve. Separate circuit diagrams show straight-tilt blade configurations with and without a rear ripper. The work-equipment section covers straight-tilt blade disassembly and installation, illustrates the fixed multi-shank ripper, and gives inspection standards for the DRP060 attachment. Cylinder assembly notes explain how wear rings keep the steel piston from contacting and scoring the cylinder.
Always fully depressurize hydraulic circuits, consult the full OEM procedures, and follow the specified precautions for heavy lifting and loaded recoil springs.
Wiring and System Diagrams
The electrical diagrams identify the starting safety circuit, charging system, lighting, gauges, and backup alarm. The separate Komatsu electrical-system shop manual covers detailed electrical component service. Other illustrations show the PTO gear train, power-train hydraulic circuits, and transmission lubrication paths.
TORQFLOW Pump Output and Bevel Gear Setup Examples
The FAL040 TORQFLOW pump specification lists a delivery rate of 73.7 L/min at 1,850 rpm. Bevel gear installation calls for 0.25–0.33 mm backlash and a bearing preload of 1.5–2.0 kgm measured as turning torque with the pinion engaged.
