Fiat-Allis FD175 Crawler Dozer Operation and Maintenance Manual (P/N 604.00.854; 604.06.572)

This PDF pairs the FD175 Operation and Maintenance Instruction Manual with the corresponding Service Manual for the FD175 crawler tractor/dozer equipped with the 8365.25.541 Fiat Iveco turbocharged engine and full powershift torque-converter transmission. The operating volume supports operators and routine maintenance personnel. The service volume expressly assigns its repair work to the manufacturer's maintenance network, making the deeper overhaul and test material best suited to trained heavy-equipment technicians with the required lifting, pressure-test, and special-tool equipment.

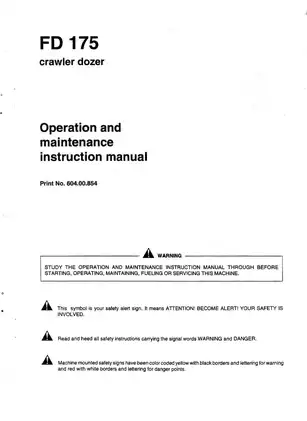

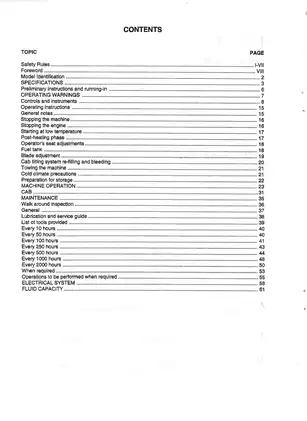

• Document set and identification: 602 PDF pages total - the Operation and Maintenance Instruction Manual, Print No. 604.00.854, spans 73 pages; the Service Manual, Form 604.06.572 English, spans 528 pages; one scan lead page completes the file.
• Engine-related service scope: Covers engine-and-converter removal, fuel-injection-pump removal and timing, radiator service, starter and alternator work, belt service, throttle linkage, and the engine-stop control. Full internal engine rebuilding, engine troubleshooting, and tests outside this chapter are referred to separate Service Manual 604.06.184, which is not included in this PDF.
• Full powershift drivetrain repair: Details converter and transmission removal, installation, disassembly, and assembly; high-range and reverse clutch rebuild work; control, regulating, modulating, and neutral-lock valves; converter stall testing; flow and pressure checks; and pump-output evaluation.
• Steering, brakes, and final drives: Provides steering-clutch and brake repair, bevel gear and pinion setup, valve and pump service, brake-pedal adjustment and pressure checks, final-drive teardown and assembly, floating-ring seal installation, and sprocket-bearing preload adjustment.
• Implement hydraulics and undercarriage: Covers flow-meter diagnosis, pump-delivery testing, hydraulic pump and control-valve work, control adjustment, cylinder repair, dozer installation and ripper-cylinder service, track-chain and track-release repair, rollers, idlers, sprocket ring gear, track frames, and the oscillating beam.
• Electrical system and cab/ROPS: Traces the Electronic Data Monitor, sensors, starting and charging circuits, fuse holders, starter and alternator testing, and component locations. Cab tilting and lowering, seat and instrument-panel service, wipers and washers, and cab/ROPS removal and installation are also covered.

Operating and Scheduled Maintenance

The operating manual addresses pre-start inspection, starting and shutdown, cold-weather starting, the Electronic Data Monitor, blade and seat adjustment, cab tilting, towing and transport, storage preparation, and field operation of the blade and optional ripper. Its maintenance program combines walk-around checks, break-in service, interval-based routines, and when-required work.

Lubricant selection, filter service, fuel-system bleeding, cooling-system care, track-sag checks, electrical fuse identification, and fluid-capacity tables are all included. The capacity chart distinguishes the BD hydraulic configuration at 72.5 liters from the AD hydraulic-tilt version at 71.5 liters, while the service volume separately covers single-cylinder and angle-dozer tilt arrangements.

Machine-Specific Coverage and Factory Tools

A modification note identifies a configuration break at chassis 60562. Later machines use the dust-protected, three-way engine-stop electromagnet P/N 79104502 in place of P/N 79093820 and require the related connector arrangement.

Tool references are tied to the factory procedures, including clutch-pack alignment tool P/N 75291532, hydraulic flow meter P/N 75298406, and track-release spring compressor cage P/N 75295567. The specification sections provide component torque tables, pressure and flow-test data, clutch and spring checks, fits and tolerances, wear limits, fluid requirements, and electrical test values.

Schematics and Repair Cautions

Diagnostic graphics include the transmission hydraulic schematic, transmission test chart, pressure-pump and charging-pump output graphs, steering/brake system schematic, implement hydraulic schematic, and electrical system wiring diagram with numbered component references.

The transmission chapter calls for verifying high-range clutch spline alignment before the shaft is installed because misalignment can damage the splines. During final-drive repair, the specified puller setup protects the intermediate housing, and the sprocket hub must be handled without damaging the seal assembly left in place.

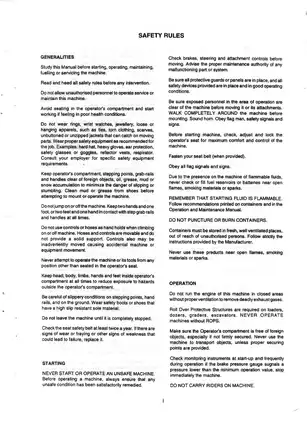

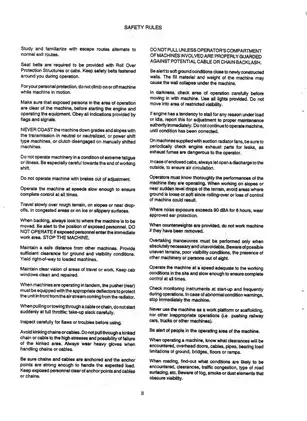

Before servicing the machine, follow the safety rules in these manuals: lower the blade or ripper, support any raised equipment independently of the hydraulic cylinders, release stored hydraulic pressure, and isolate the batteries before electrical repair.
