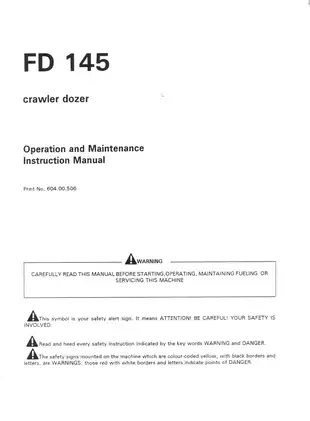

Fiatallis FD 145 Crawler Dozer 1987–1994 — Operation, Maintenance & Service Manual Set (P/N 604.06.580)

The operating handbook covers machine use and scheduled maintenance; the service manual adds component removal, overhaul, adjustment, and diagnostic testing.

Coverage limits: Internal engine overhaul and additional engine troubleshooting require separate manual 604.06.299. Detailed undercarriage troubleshooting refers to manual 604.06.196. Neither additional publication is included.

PDF Bookmarks, Text Search, and Diagram Detail

Navigation and wiring labels: PDF text search is unavailable. Bookmarks cover both publications, although some service-section links are offset and the Main Menu links point to an external file. Small wiring labels require zooming; some service-manual wire codes remain difficult to read when enlarged.

Supplied as one 545-page printable PDF in English, including both publications and one additional introductory page. The service manual’s page count includes three repeated procedure pages.

Dozer Operation, Drivetrain Repair, and Hydraulic Testing

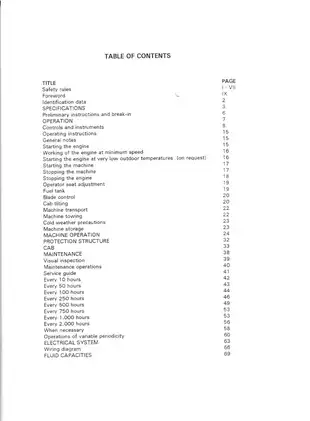

The following selected topics show the scope of the material, rather than a complete contents list. Further subjects include machine storage and cab heater troubleshooting.

• Operation and maintenance: Starting, stopping, transport, cold-weather operation, blade adjustment, lubrication schedules, filter service, fuel-system bleeding, and manual brake release.

• Engine-related components: Engine and converter removal, radiator replacement, injection-pump removal and timing, throttle-linkage adjustment, and fuel shutoff-solenoid setup.

• Powershift transmission: Converter stall testing, pressure and flow checks, transmission disassembly, clutch-pack assembly, and hydraulic control-valve service.

• Final drives and steering: Final-drive rebuilding, sprocket-bearing preload, steering-clutch inspection, brake testing, and central bevel-gear backlash adjustment.

• Implement hydraulics and undercarriage: Circuit flow testing, valve and cylinder repair, track adjustment, roller and idler rebuilding, and track-frame alignment.

• Electrical system and cab: Wiring diagrams, starter and alternator testing, Electronic Data Monitor connections, hydraulic cab tilting, and cab/ROPS removal.

The operating instructions address qualified operators; the service manual expressly assigns its maintenance and repair work to the manufacturer’s service network using the specified equipment.

Operating Procedures and Scheduled Service

Cab-control and instrument-panel views explain the machine’s controls and warning indicators. Maintenance schedules connect routine inspections with lubricant grades, filter servicing, and fluid-replacement requirements.

Step-by-step instructions cover fuel-system bleeding after air enters the supply circuit, track-tension adjustment, and hydraulic cab tilting. The manual also describes emergency brake release for moving a machine that cannot be started; the brakes are inoperative once manually released.

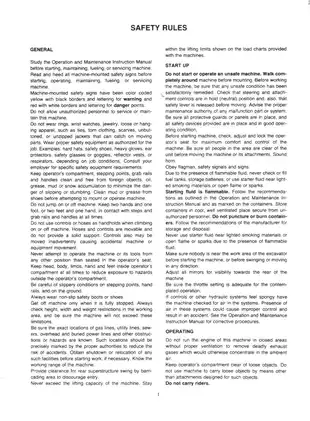

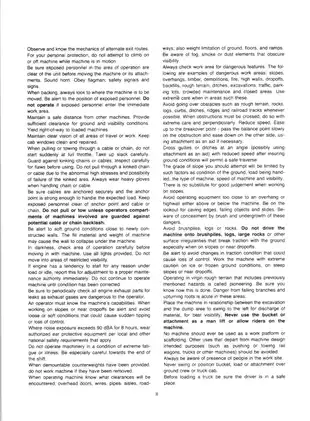

Always review the manufacturer safety protocols documented in these chapters before tilting the cab or servicing the high-pressure hydraulics.

Engine Access and Powershift Diagnosis

The engine-related section covers the FIAT 8065.25.099 installation and external components. Injection-pump timing drawings identify the flywheel’s INIEZ reference, alongside pump calibration data and removal instructions.

Transmission troubleshooting charts link symptoms to probable causes, required tools, tests, and corrective work. Together with the transmission hydraulic schematic and converter stall-test interpretation, these references help technicians distinguish engine-output problems from transmission or clutch faults before disassembly.

The overhaul material includes clutch-disc inspection and assembly details. Misaligned clutch-pack splines can be damaged during shaft installation; the manual identifies alignment tool 75291532 and provides a dimensioned converter-lifting-tool drawing.

Final Drives, Hydraulics, and Track Components

Final-drive procedures address floating-ring seals and bearing adjustment. Steering and brake sections add pressure-versus-control-travel charts, valve inspection, and bevel-gear setup specifications.

The implement hydraulic schematic, circuit flow tests, and pump-delivery graph support fault isolation when cylinders move slowly or hydraulic performance drops. Flow meter 75298406 is identified for these checks. The implement pump is serviced as a unit apart from its available seal repair kit.

Undercarriage coverage distinguishes split-link chains from optional sealed-and-lubricated chains. Track-chain disassembly requires a track press and tooling; the included repair sections also cover recoil components, rollers, idlers, sprocket segments, and the oscillating beam.

Electrical Tests and Monitor Connections

Starter inspection and troubleshooting are supplemented by alternator rotor, stator, and diode tests. Electrical wiring diagrams and Electronic Data Monitor connector tables identify wire numbers and circuit destinations for tracing faults.

The monitor section explains warning-light and fluid-level checks. Its electronic assembly is described as nonrepairable, so this coverage does not extend to internal circuit-board repair.

Examples of Valve Settings and Transmission Refill Data

For the FIAT 8065.25.099, the maintenance section specifies valve-to-rocker clearance with the engine cold: 0.25 mm intake and 0.35 mm exhaust.

The fluid-capacity table lists 34 L for converter/transmission oil replacement. This is a periodic service quantity; the service specifications distinguish it from the gearbox’s initial-fill quantity.
