Fiat-Hitachi / Fiat-Kobelco FD 255 Dozer Service & Operator Manual Set, 1997–2005 (P/N 604.02.214)

465 Pages • Printable PDF • 24.82 MB • Download

4.5starstarstarstarstar_half(4)
$33.25 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Fiat-Allis Models Covered & Key Technical Specifications

Model & Model Codes: FD 255 (technical type 623.920.00.3), Fiat-Kobelco FD 255

Sub-models / Variants: Angledozer (HA; mechanical or hydraulic tilt), Bulldozer (HSU), ROPS, Enclosed Cab, PD20 ripper (optional)

Model Years: 1997–2005 (1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005)


  • Engine power: 177 kW (approx. 237 HP) at 2100 rpm

  • Engine type: 8465.41.00.6 diesel, 4-stroke, direct injection

  • Engine displacement: 9500 cc

  • Max torque: 101 daNm at 1400 rpm

  • Electrical system: 24 V

  • Transmission type: Hydraulic torque converter with powershift

  • Track gauge: 2070 mm

  • Max allowable towing pull (front): 200 KN

  • Max allowable towing pull (rear): 350 KN

Fiat-Allis Manual Features & Selected Content Preview

Publication Pages

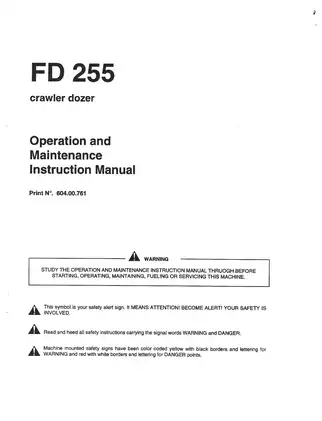

Fiat-Hitachi FD 255 Operation and Maintenance Instruction Manual — P/N 604.00.761 91
Fiat-Hitachi FD255 Crawler Dozer Service Manual — P/N 604.02.214 373

The operating manual covers machine use, scheduled servicing, and operator troubleshooting. The service manual adds component diagnosis, overhaul procedures, and adjustment data, allowing maintenance findings to be followed through to the relevant workshop checks.

PDF Bookmarks and Wiring Detail

Navigation and diagram readability: Embedded bookmarks cover both publications, although two legacy “MAIN MENU” entries do not provide usable navigation. PDF text search is unavailable. Small wiring codes require zooming, and the main wiring sheet has cropped content along its right edge.

One printable, English-language 465-page PDF contains both publications, including their covers and one additional opening page.


Dozer Operation and Component Repair

These selected content highlights outline the main operating and workshop sections. Further topics include fire protection and operator-seat adjustment.

  • Operation and maintenance: Control identification, machine handling, scheduled servicing, fuel-system bleeding, and variable services for track tension, idlers, and rollers.

  • Engine overhaul: Step-by-step removal, teardown, cylinder-sleeve replacement, crankshaft inspection, cylinder-head work, timing adjustment, and turbocharger overhaul procedures.

  • Transmission and converter: Unit removal, clutch-pack overhaul, distributor and control-valve service, plus on-machine pressure checks and converter stall tests.

  • Steering and brakes: Wet steering-clutch inspection, oil-bath band-brake adjustment, central bevel-gear setup, and hydraulic control-system diagnosis.

  • Final drives and undercarriage: Final-drive disassembly, sprocket inspection, track-chain repair, recoil-adjuster service, and idler, roller, and track-frame work.

  • Implement hydraulics: Pump overhaul and flow testing, distributor bench tests, relief-valve adjustment, and blade, tilt-cylinder, and ripper service.

  • Electrical diagnosis: Wiring diagrams, component-location views, fuse connections, sensor wiring, and Electronic Data Monitor connector assignments.

The operating manual guides machine operators through use and systematic servicing; the service manual specifies that its maintenance and repair work is for the manufacturer’s service organization using the prescribed tools.

Operation and Scheduled Servicing

Separate illustrations identify ROPS and enclosed-cab controls. Field guidance covers dozing, slot dozing, side cuts, leveling, road and ditch work, ramp formation, and pushing or pulling. Boulder handling, ravines, steep slopes, frozen ground, and ripper use receive their own operating guidance.

Cab tilting with the hand pump, lowering equipment with the engine stopped, transport, towing after manual brake release, cold-weather preparation, and long-term storage are also covered.

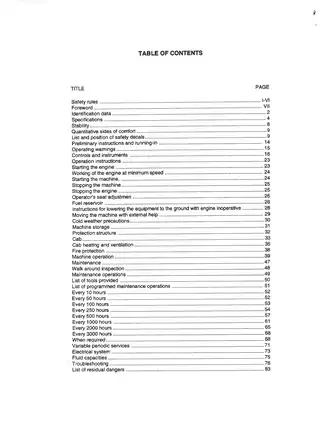

The schedule contains 41 numbered operations, from 10-hour track-frame support lubrication through 3000-hour air-conditioner filter replacement. Lubricant tables identify grades and temperature ranges for the engine, powertrain, steering-clutch/brake housing, final drives, rollers, and cab-tilting pump.

Fluid capacities: Tables list 65 L for cooling, 22 L for engine oil, 67 L for the converter/transmission, 130 L for implement hydraulics, and 82 L for each final drive. The operating manual lists a 495 L fuel tank; the service table specifies 500 L for first fill.

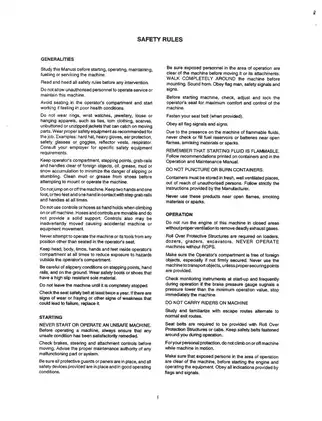

Raised equipment must be mechanically supported before repair work, hydraulic pressure relieved before lines are opened, and the batteries isolated before electrical service.

Engine Inspection and Rebuilding

Internal engine coverage includes pistons and connecting rods, camshaft and crankshaft measurements, timing gears, cylinder heads and valves, injector sleeves, and lubrication and cooling pumps. Injection-pump installation and timing are supported by calibration and governor data; the Holset H2C turbocharger has disassembly, inspection, and assembly instructions.

Tool references include cylinder-sleeve protrusion tool 75298636 and injection-pump plunger-lift tool 75295905. The sleeve-replacement section explains why shim selection and renewed water seals matter: incorrect protrusion can compromise head sealing, while reused seals can allow coolant leakage.

Powertrain Diagnosis and Setup

The three-forward/three-reverse powershift chapters cover the heat exchanger, drive shaft, hydraulic pumps, clutch assemblies, and control distributor. Pressure-outlet diagrams and stall-test interpretation help distinguish converter faults from transmission clutch slip before removal.

Bevel-gear backlash tool 75295253 and transmission clutch-spring tool 75297418 are identified. Brake troubleshooting also addresses overadjustment and revised ratchet components.

Track Assemblies and Implement Hydraulics

Undercarriage instructions extend from damaged track-link replacement to track-frame alignment and front-suspension work. The grease-charged adjuster and compressed recoil spring require the dedicated release fixtures described in the service section.

Hydraulic coverage distinguishes mechanical and hydraulic angledozer tilt arrangements, the HSU bulldozer, and the optional PD20 three-shank ripper. Tank and filter service, lift and tilt cylinders, the angledozer C-frame, and the quick-release valve are covered alongside pump and distributor testing.

Named illustrations include the Transmission Hydraulic Converter Diagram, Steering Clutches and Brakes Hydraulic System Diagram, and Dozer Hydraulic System Diagram.

Electrical Circuits and Monitor Limits

The electrical section covers the twin batteries, electronically regulated alternator, starting and safety circuits, fuse assignments, and sensor connections. Component-location drawings and E.D.M. connector views support wire tracing across ROPS and cab configurations.

The Electronic Data Monitor explanations distinguish pressure, temperature, charging, filter-restriction, fuel, and fluid-level indications. Internal repair of the E.D.M. display panel is excluded; the manual describes its operation and external connections.

Examples of Engine Settings and Clutch Test Data

Cold-engine valve clearances are 0.25 mm intake and 0.50 mm exhaust. Cylinder-sleeve protrusion is specified at 0.040–0.070 mm, with a corresponding shim-selection table.

For the transmission-clutch pressure check, the service manual specifies 14–15.5 bar at the selected clutch outlet with hot oil, maximum throttle, and the converter under the prescribed stall-test conditions.
