John Deere 4110/4115 Tractor Technical Manual, 2002 (P/N TM1984)
698 Pages • Printable PDF • 86.49 MB • Download
John Deere Models Covered & Key Technical Specifications
Models: 4110, 4115
Sub-models / Variants: 4110 CST, 4110 HST, 4115 HST
Model Year: 2002
-
Engine model: 3TNE74 (4110), 3TNE78A (4115)
-
Engine configuration: 3-cylinder, 4-cycle diesel
-
Displacement: 1006 cm³ (61.4 cu in.) [4110], 1200 cm³ (73.2 cu in.) [4115]
-
Gross power output: 14.9 kW (20 hp) to 17.9 kW (24 hp)
-
Transmission types: Constant mesh gear dual range (4110 CST), hydrostatic dual range (4110 HST/4115 HST)
-
PTO system: Transmission driven or independently driven
-
Hydraulic system: Open center, dual gear pump
John Deere Manual Features & Selected Content Preview
John Deere Technical Manual P/N TM1984, dated May 2002, covers the 4110 CST, 4110 HST, and 4115 HST Compact Utility Tractors. This is the North American Version, with a separate European electrical section.
PDF Search, Bookmarks, and Diagram Detail
Search and diagram navigation: The PDF contains searchable text and embedded bookmarks for sections and individual procedures. Small wire codes, connector numbers, and pin labels in the electrical diagrams are best read with zoom.

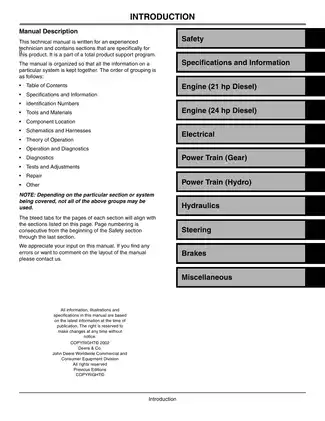

Supplied as one printable 698-page PDF. That total includes four opening pages—the cover, introduction, and two blank pages—plus 682 numbered manual pages and a 12-page index. Original section-ending blank pages are included.
Diesel Engine, Drivetrain, and Tractor System Repair
These selected service topics outline the main repair areas. Other included subjects range from air-restriction indicator tests to O-ring fitting service.
-
Diesel engines: Compression and injection testing, cylinder-head service, camshaft and timing-gear work, cooling and lubrication diagnosis, and internal overhaul.
-
Gear and hydrostatic drivetrains: Transmission removal and teardown, differential and final-drive repair, MFWD service, PTO testing, hydrostatic component work, and neutral adjustment.
-
Hydraulics and steering: Rockshaft and SCV diagnosis, pump-flow and relief-pressure tests, lift and sensitivity adjustments, pump repair, and steering-system checks.
-
Electrical diagnosis: Gear, HST, and European schematics, harness and connector views, control-module logic, and circuit tests for starting, charging, lighting, PTO, and safety interlocks.
-
Brakes and chassis: Wet multiple-disk brake diagnosis and repair, pedal and parking-brake adjustments, and removal procedures for body panels and chassis components.
-
Service references: Component-specific torque data, pressure and flow specifications, wear limits, clearances, special-tool numbers, operating theory, diagnostic charts, and repair illustrations.
John Deere states that this manual is written for an experienced technician. Its pressure and flow testing, diesel-injection work, electrical diagnosis, precision measurement, and heavy-component handling assume a properly equipped shop. It is a diagnostic and repair reference, not a substitute for the tractor operator’s manual.
Engine Configurations and Internal Repair
The 4110’s Yanmar 3TNE74 uses indirect injection; the 4115’s 3TNE78A uses direct injection. Each engine chapter has its own specifications, operating theory, troubleshooting, tests, adjustments, and repair procedures.
Fault diagnosis: Charts address no-start, low-output, smoke, rough-running, overheating, low-compression, oil-pressure, and fuel-consumption complaints. Valve-clearance and lift checks, nozzle tests, transfer-pump pressure and flow tests, fuel bleeding, and cooling-system checks support diagnosis before teardown.
Repair depth: Step-by-step procedures cover engine and front-subframe removal, cylinder heads and valves, guides and seats, pistons and connecting rods, cylinder bores, crankshafts and bearings, camshafts and timing gears, oil pumps, and cooling components. The 3TNE78A section also covers starting-motor teardown and testing plus 20-amp alternator service.
Injection-system limits: EPA injection-pump work carries factory-authorization requirements. The 3TNE74 governor housing and internal controls are specified for complete-assembly replacement. Internal repair of the 3TNE78A injection pump and governor is assigned to a qualified fuel-injection repair shop, with complete-unit replacement when necessary.
On the 3TNE74, incorrect cylinder-head-gasket orientation can block the head oil passage.
Gear Transmission, HST, and PTO Service
The gear section details the 4110 CST transmission, rear and mid PTO drives, PTO brake, MFWD output shaft, front differential, spindle housings, and final drives.
HST internals: Procedures extend to the charge pump, hydrostatic pump and motor, swash and valve plates, valve block, PTO clutch and brake, differential carrier, rear PTO, and transaxle assembly. Warm-up procedures and charge, PTO-clutch, and lubrication-pressure tests support fault isolation before component removal.
The HST transmission-section gasket controls bearing preload and end clearance; the manual requires a new gasket and rules out RTV or other gasket compounds.
Rockshaft Hydraulics and Steering Diagnosis
Hydraulic coverage distinguishes machines with and without an SCV. It includes depth-control linkage, system relief, speed and sensitivity controls, the lift cylinder, and control-valve repair.
Rockshaft lift-cycle and leakage checks help distinguish lift-cylinder leakage from control-valve leakage. Steering tests likewise separate steering-control-unit faults from cylinder leakage; the steering control unit is replaced as a unit rather than internally serviced.
Electrical Schematics and European Equipment
Visual references include Electrical Schematic – Gear, Electrical Schematic – Hydro, W1 main and W2 rear harness maps, control-module logic tables, the rockshaft hydraulic schematic, and separate gear/HST steering schematics.
Circuit diagnosis pairs operating theory with fault-isolation charts for power supply, cranking, preheat, fuel supply and shutoff, charging, the control panel, lighting, PTO controls, and operator-safety switches.
The European section adds road-position lighting, turn signals, brake and hazard circuits, trailer wiring, and an alternator with an integrated regulator/rectifier. A Europe-specific parking-brake adjustment appears in the brake chapter.
Chassis Work, Tools, and Shop Safety
Additional removal and installation procedures cover the seat and seat frame, rollover protection structure, fenders and supports, wheels, hood, control panel, battery, and fuel tank. Identification illustrations show the machine PIN, engine serial number, and transaxle serial-number locations.
Reference tables provide capacities, lubricant requirements, tightening torques, electrical values, adjustment specifications, and inspection limits. Named equipment includes the JDG472 compression-test adapter, JDG692 radiator pressure-test kit, JDG991 fast-idle adjustment tool, JDG757A solenoid-valve socket, and JDG694 hydraulic-pump test fitting.

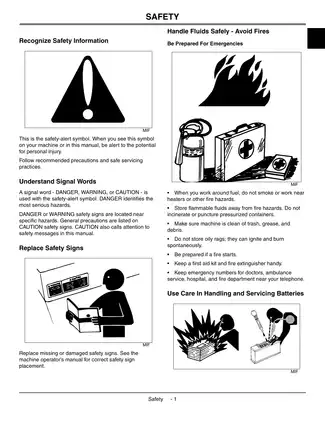

Relieve hydraulic pressure before opening any line, support the tractor and attachments independently of a jack, and isolate the engine and electrical system before drivetrain repair. High-pressure hydraulic and diesel-injection testing requires the protective equipment and test methods specified in the manual.
A Preview of Valve-Clearance and Compression Data
For both engines, the valve-adjustment procedures specify 0.15–0.25 mm (0.006–0.010 in.) clearance with the engine cool at room temperature.
For the 4115’s 3TNE78A, the compression-test section lists a minimum pressure of 2555 kPa (370 psi), with a minimum cranking speed of 250 rpm. The same test includes specifications for comparing readings between cylinders.
