John Deere 4210, 4310 & 4410 Tractor Technical Manual – 2002 (P/N TM1985)

John Deere Technical Manual P/N TM1985, dated December 2002, covers 4210, 4310, and 4410 Compact Utility Tractors with Yanmar 3TNE82A, 3TNE84, and 3TNE88 diesel engines, respectively. This is the North American version, with a dedicated European electrical section and equipment-specific procedures.

Searchable PDF with Section Bookmarks

Search, navigation, and diagram detail: Searchable text and embedded bookmarks provide access to system chapters and individual procedures. Small pin numbers and wire codes in dense electrical schematics are readable when enlarged.

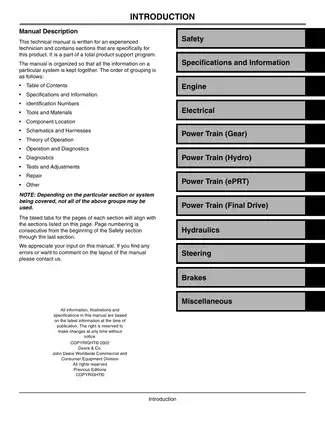

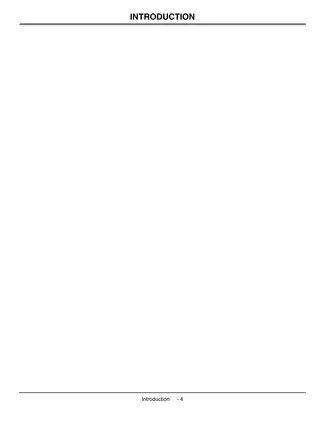

Supplied as one printable 838-page PDF, including the original cover, introduction, seven-page index, and 22 blank or header/footer-only pages.

Diesel Repair, Drivetrain Service, and e-MatchOS Diagnostics

The following selected coverage highlights outline the main workshop areas. Other topics include battery load testing and tilt-steering mechanism removal and installation.

• Engine diagnosis and repair: Engine removal, internal inspection, cylinder-head and valve service, lubrication-system repair, fuel and cooling tests, and starting-motor and alternator repair.

• Transmission service: Separate SyncShift, eHydro, and ePowrReverser sections cover machine splitting, clutch or transmission removal, applicable internal repairs, pressure testing, shimming, and control adjustment.

• Final drive, MFWD, and PTO: Range transmission, differential and differential lock, front axle and final drives, pinion-depth and backlash setup, and PTO clutch/brake repair.

• Hydraulic systems: System bleeding, pressure/flow testing, rockshaft and selective control valve (SCV) diagnosis, hydraulic gear-pump service, and cylinder disassembly and assembly.

• Steering and brakes: Steering-system testing, toe-in adjustment, steering control unit replacement, wet-disc brake inspection and assembly, and service- and parking-brake adjustment.

• Electrical and e-MatchOS: Configuration-specific wiring diagrams, interlock diagnosis, fault-code charts, switch/sensor/solenoid tests, ePowrReverser control setup, and eHydro calibration procedures.

Written for experienced technicians, this manual assumes workshop knowledge and access to the specified measuring equipment and service tools.

Regional Equipment and Electrical Coverage

The European section addresses different connector pin assignments and additional road-lighting circuits. It also covers front-PTO electrical diagnosis, while the final-drive chapter includes rear and mid PTO systems and European two-speed PTO repair.

European brake-linkage layouts are included alongside the North American configurations. Matching the electrical section to the tractor’s actual harness and equipment is important when tracing circuits.

Engine Inspection and Internal Repair

Mechanical diagnosis: Tests cover cylinder compression, valve clearance and lift, crankshaft and camshaft end play, bearing clearances, timing-gear backlash, and engine oil pressure.

Step-by-step procedures extend through cylinder-head disassembly and reassembly, valve-seat and guide work, piston and cylinder inspection, crankshaft and main-bearing service, camshaft and follower replacement, and timing-cover work. Valve seats are not replaceable separately; seats worn or damaged beyond repair require cylinder-head replacement.

The manual identifies matched connecting rods, rod caps, pistons, and main-bearing caps that must retain their original positions and orientation. Incorrect rod-cap or main-bearing-cap installation can damage the crankshaft and associated bearings.

Fuel and cooling: Injection-nozzle opening and spray-pattern tests accompany fuel-transfer pump pressure/flow checks, fuel-system leakage tests, and static injection-pump timing procedures. Cooling checks include thermostat operation, system pressure, radiator-cap operation, and radiator bubble testing.

For EPA-labeled engines, injection-pump and governor repairs are limited to complete-assembly replacement, with removal and installation restricted to authorized factory-trained technicians.

Transmission Repair and eHydro Limits

SyncShift: The gear section covers traction-clutch and input-shaft work, clutch and snubber shimming, and internal repair of the three-speed synchronized gearbox.

ePowrReverser: Coverage includes forward/reverse clutch operation, control-valve and proportional-solenoid theory, clutch and lubrication pressure tests, clutch-pack service, and four-speed transmission disassembly and assembly.

eHydro: Pump and charge-pressure tests accompany pedal and potentiometer service and hydrostatic transmission removal and installation. Internal rotating parts are not individually serviceable; the manual specifies complete-unit replacement.

Replacement drive-pedal potentiometers require adjustment and calibration. Incorrect output settings can prevent travel in either direction.

Hydraulic Fault Isolation and Steering Service

The main PTO clutch pressure test helps distinguish a clutch-assembly fault from a hydraulic supply problem before choosing the repair path. Rockshaft lift-cycle and leakage tests address lifting performance, with separate feedback-linkage and lowering-rate adjustments.

Steering procedures cover MFWD and two-wheel-drive layouts. The steering control unit has no serviceable internal components; the documented work is testing, removal, and replacement.

Schematics, Fault Charts, and Control Setup

Representative drawings include the W1 Main Electrical Schematic, W2 SST and W3 ePowrReverser Electrical Schematic, and W4 eHydro and Cruise Control Electrical Schematic.

The eHydro Electronic Operating System Troubleshooting Flowchart, Hydrostatic System Schematic, and SCV and Rockshaft System Schematics connect electrical diagnosis with drivetrain and hydraulic operation.

Harness color-code tables and component locations support circuit checks for cranking, manifold heat, fuel supply, engine shutoff, charging, forward/reverse drive, cruise control, Load Match/Motion Match, PTO, MFWD, lighting, and the optional diverter valve.

Early and late eHydro serial groups have different drive-pedal potentiometer settings and some fault-code distinctions. The electrical section also describes automatic calibration after replacement of specified drive-control components.

Workshop References and Chassis Access

Component-specific torque tables, approved-fluid and capacity data, pressure-test specifications, wear limits, fits and clearances, and electrical test values accompany the procedures. Exploded assembly drawings support engine, transmission, final-drive, PTO, hydraulic, steering, and brake work.

Referenced tools include JDG1575 for e-MatchOS testing and setup, JDG1259 for clutch shimming, JDG1650 for clutch spring compression, JDG1395A for MFWD pinion-depth and backlash setup, and JDE118 for valve-guide service.

Chassis access procedures cover the 3-point hitch, roll-over protective structure (ROPS), wheels, operator platform, panels, hood, battery, and fuel tank.

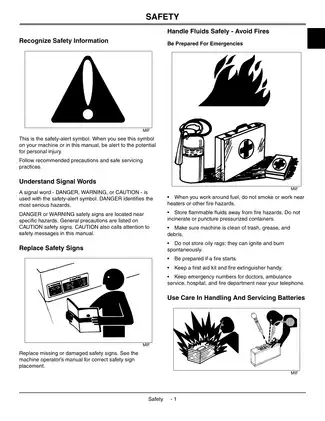

Before machine splitting or hydraulic, PTO, brake, or electrical repair, follow the opening safety section for attachment lowering, pressure relief, battery isolation, secure support, and heavy-component lifting.

A Preview of Valve and Thermostat Test Data

For the covered diesel engines, valve clearance is specified at 0.15–0.25 mm (0.006–0.010 in.), checked with the engine cool at room temperature. The valve-adjustment section includes the measurement points and related illustrations.

The thermostat test specifies initial opening at 69.5–72.5°C (157–163°F) and full opening at 85°C (185°F), alongside inspection criteria for its opening and closing action.
