Detailed Workshop Manual for John Deere 8875 Skid-Steer Loader (1995-1998) | 650-Page Technical File
Manual Preview

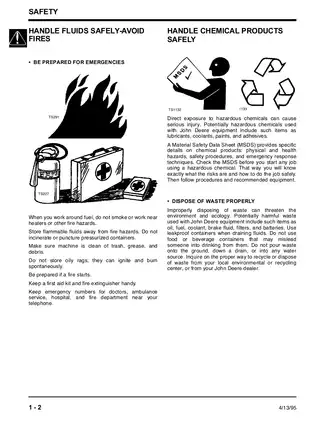

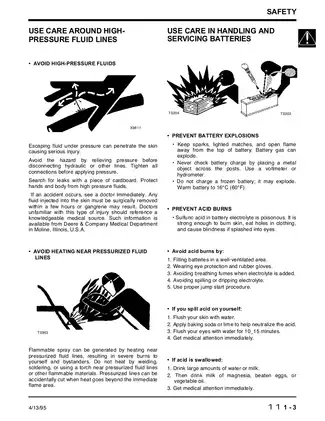

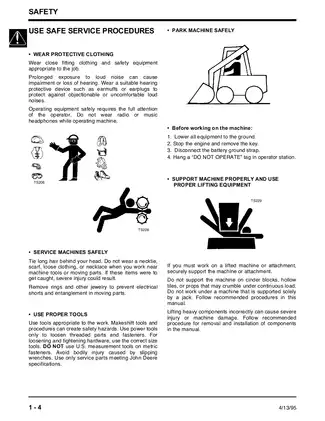

Sample pages from the Detailed Workshop Manual for John Deere 8875 Skid-Steer Loader (1995-1998) | 650-Page Technical File manual
Purchase & Download
Models Covered & Key Technical Specifications
JOHN DEERE 8875 SKID-STEER LOADER (1995-1998) | Series: 300 (Saran)
-
Model Identity: John Deere 8875 | 1995-1998 | TM1566 Revision | Length with Bucket: 3607 mm (142 in.) | Width: 1753 mm (69 in.) | Height: 1829 mm (72 in.)
-
Power & Drive Core: John Deere 3029T (Diesel) | Displacement: 2.9 L (177 cu.in.) | Net Output: 45.5 kW (61 hp) | Fast Idle: 2270 RPM | Rated Speed: 2500 RPM
-
Technical Systems: Hydrostatic Drive | Variable Displacement Axial Piston Pumps | Power Hydrostatic Steering | 3-Spool Open Center Hydraulic Valve | Inline Direct Injection Fuel System
-
Essential Benchmarks: Hydrostatic Relief: 34473 kPa (5000 psi) | Main Hydraulic Relief: 17927 kPa (2600 psi) | Rated Operating Load: 568 kg (1250 lb.) | Compression Ratio: 18:1 | Intake Valve Clearance: 0.35 mm | Exhaust Valve Clearance: 0.45 mm
-
Capacities & Consumables: Fuel Tank: 71.2 L (18.8 gal) | Engine Oil: 8.5 L (9 qt.) SAE 15W40/10W30 | Coolant: 15.1 L (16 qt.) 50/50 Ethylene Glycol | Gearbox (each): 2.8 L (3 qt.) GL-5 | Chain Case (each): 7.6 L (2 gal.) 10W-30
Professional Workshop Service Manual & Technical Specifications
John Deere 8875 Skid-Steer Loader Technical Manual
This professional-grade technical document provides the critical engineering data required to maintain, diagnose, and overhaul the John Deere 8875 Skid-Steer Loader. Engineered for veteran shop technicians, this manual focuses on minimizing field downtime through precise theory of operation and step-by-step repair sequences. By following these factory-standard procedures, owners and fleet managers ensure maximum equipment reliability and safety in demanding construction environments.
Workshop Logistics & Document Data
- Total Pages: 650 Pages
- Publication Number: TM1566 (Feb 95)
- File Format: High-Resolution PDF
- Series Coverage: John Deere Lawn & Grounds Care Division
Maximum Equipment ROI
- Eliminate Guesswork: Use exact pressure benchmarks and torque-turn methods to avoid costly component failure.
- Extended Service Life: Follow specific lubricant and filtration standards to protect hydrostatic and engine cores.
- In-House Capability: Comprehensive repair groups allow for full engine and powertrain overhauls without outsourcing.
- Safety Compliance: Integrated safety protocols protect personnel when handling high-pressure fluids and heavy components.
Engine & Revision Compatibility
- Primary Powerplant: John Deere CD 3029T (Diesel)
- Hydraulic Logic: 3-Spool Open Center System
- Drive Architecture: Hydrostatic Variable Displacement Axial Piston
- Regional Revision: John Deere Series 300 (Saran)
Specialized Diagnostics & Logic
The manual features high-density troubleshooting tables specifically for the CD 3029T engine and hydrostatic drive. It details "Symptoms vs. Solutions" for hard starting, irregular idling, and black exhaust smoke. Specialized tests include intake manifold turbo boost verification and fuel supply pump vacuum/pressure testing to isolate performance bottlenecks quickly.
Advanced Schematics & Visuals
This PDF contains high-definition technical illustrations including lubrication flow cross-sections, fuel system delivery paths, and detailed component exploded views. The digital format supports high-level zoom, allowing technicians to inspect minute details of wiring harnesses, valve guide measurements, and internal pump gerotor gears without loss of clarity.
Critical Benchmarks & Shop Standards
- Rated Operating Load: 1,250 lbs (568 kg)
- Main Hydraulic Relief: 2,600 PSI (17,927 kPa)
- Hydrostatic Pump Relief: 5,000 PSI (34,473 kPa)
- Engine Rated Speed: 2,500 RPM
- Engine Compression: 350 PSI (24 bar) minimum per cylinder
- Fuel Injection Opening: 3,650–3,750 PSI (New/Rebuilt)
- Maintenance Benefit: Adhering to these relief and compression values prevents premature pump cavitation and internal engine scoring, ensuring the machine operates within its structural design limits.
Detailed Content Architecture
- Safety & General Information: Fluid handling, battery safety, and unified torque values.
- Diesel Engine (CD 3029T): Full repair specifications, cylinder head resurfacing, and valve timing.
- Hydrostatic Power Train: Theory of operation, charge pump relief settings, and drive motor service.
- Technical Hydraulics: Main system relief tests, valve repair, and cylinder benchmarks.
- Diagnostics & Troubleshooting: Logic-based flowcharts for starting, performance, and noise issues.
