2003 John Deere 240 & 250 Skid Steer Loader TM1747 FEB03

4.6starstarstarstarstar_half(5)
visibility Preview Available
John Deere 2003 John Deere 240 & 250 Skid Steer Loader TM1747 FEB03 manual page preview - page 1 of 506

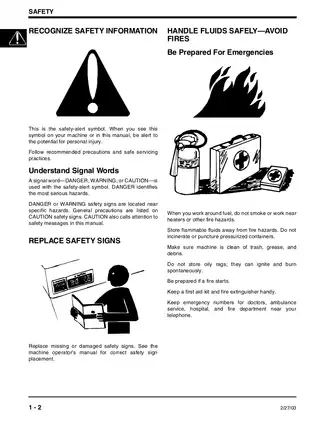

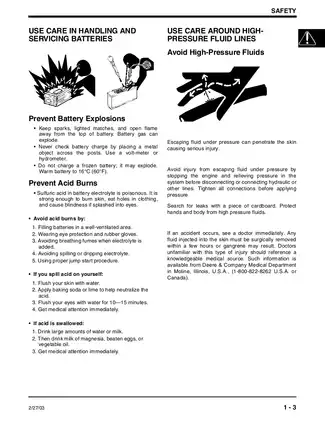

Sample pages from the 2003 John Deere 240 & 250 Skid Steer Loader TM1747 FEB03 manual

John Deere 2003 John Deere 240 & 250 Skid Steer Loader TM1747 FEB03 manual preview page 1 - thumbnail
John Deere 2003 John Deere 240 & 250 Skid Steer Loader TM1747 FEB03 manual preview page 3 - thumbnail
info_outline Click thumbnails to preview different pages
$41.89 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
7 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

John Deere Models Covered & Key Technical Specifications

Models: 240, 250
Sub-models / Variants: Skid Steer Loader
Build Years: 1999–2003
Serial Numbers: 240 (S.N. —240852), 240 (S.N. 240853—), 250
Technical Data:

  • Engine model: 3029D (240), 3029T (250)
  • Engine displacement: 2.9 L (179 cu in.)
  • Cylinders: 3
  • Rated engine RPM: 2400
  • Charging system: Alternator, 55 amp
  • Battery: 750 CCA
  • Fuel type: Diesel #2
  • Cooling system capacity: 9.5 L (10 qt)
  • Hydraulic reservoir capacity: 15.6 L (4.1 gal)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
28745 / Patrick Boyd
File Size:
16.21 MB
File Type:
PDF
Language:
English
Pages:
506
Printable:
Yes
Category:
Skid Steer Loader
Last updated / verified
Dec 15, 2025

John Deere Manual Features & Content Preview

2003 John Deere 240 and 250 Skid Steer Loader Technical Manual

  • Covers 2003 John Deere 240 and 250 Skid Steer Loaders, documenting maintenance, diagnostic, and repair specifications
  • Official OEM publication TM1747, dated February 2003
  • Contains 47 technical specification tables, 35 wiring schematics, and 28 diagnostic charts
  • Downloads to your account within seconds of checkout
  • Indexed PDF search covers every chapter and appendix
  • This 506-page manual is the primary reference for servicing the 240 and 250 series skid steers, detailing the complete diesel powertrain and hydraulic systems

Manual Organization and Scope

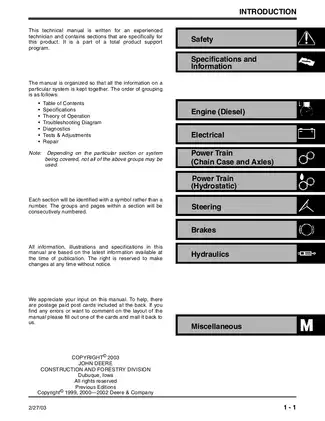

The manual is organized by system, grouping relevant theory, diagnostic diagrams, tests, and repair procedures for each machine component. Key chapters include detailed specifications for the 3029D and 3029T diesel engines, electrical system wiring harnesses, hydrostatic and chain case power trains, steering geometry, braking systems, and hydraulic circuits. The introduction establishes the technical support framework, guiding technicians through the service groups for each subsystem.

Specification and Data Preview

The documentation provides extensive reference values for critical mechanical systems. Engine displacement is listed at 2.9 L in the engine specification table. Hydraulic system capacity for the John Deere 240 and 250 models is documented at 23 liters. Engine cooling system capacity is specified at 9.5 liters in the capacities overview. Detailed torque tables are provided for metric and inch fasteners, including face seal fittings with stud ends. The electrical section details charging system output at 55 amps and provides battery cold cranking ratings of 750 CCA. Diagnostic tables outline systematic approaches to troubleshooting engine performance, electrical faults, and hydraulic system issues, complete with schematic cross-references for wiring harness connectors.

Note: All service data shown here is for reference only — qualified technicians and the original OEM documentation remain the authoritative source for any hands-on work.

An official 506-page John Deere OEM technical manual covering the 2003 240 and 250 skid steer loaders, documenting engine, chassis, electrical, and hydraulic specifications for the specified production serial numbers.

Document Reference: John Deere Technical Manual TM1747 FEB03

Manual FAQ, Purchase & Download Details

Does this manual include exploded views or parts illustrations for the main components? keyboard_arrow_down

Yes, the technical manual contains various exploded views, diagrams, and component breakdown illustrations to help identify system parts and assembly arrangements.

What system coverage can a user expect to find within the chapters of this technical document? keyboard_arrow_down

Document is organized into specific sections for the engine, electrical systems, power train, steering, brakes, and hydraulics. It also includes comprehensive specification tables and theoretical operation chapters for the 240 and 250 models.

Which sections of the document include wiring diagrams and electrical connector references? keyboard_arrow_down

Electrical system chapter contains detailed reference material, including wiring diagrams and connector pinout information for the covered machine systems.
