John Deere JD570/JD570A Motor Grader Technical Manual, 1987 (P/N TM-1001)
526 Pages • 1 Printable PDF (English) • Download
John Deere Models Covered & Key Technical Specifications
Models: JD570, JD570A
Sub-models / Variants: Motor Grader
Model Year: 1987
Serial Numbers: Component-specific ranges, including steering-valve variants up to 001440, 001442–001446, 001451–001469, and 001476–002365; 001441, 001447–001450, 001470–001475, and 002366–006724; and 006725-up.
Engine Serial Breaks: Oil-cooler configurations: up to 148138, 148139–195489, 195490–248000, and 248001-up. Service-block piston-cooling provisions: up to 248000 and 248001-up. Engine-lubrication layouts: up to 566497 and 566498-up.
Piston and Connecting-Rod Variants: JD570 piston-pin specification groups: up to 200850 and 200851-up. Revised piston, pin, and connecting-rod assemblies: 002467-up.
Fuel-System Serial Break: Parallel fuel filters before 002093; two-stage master filter from 002093.
Electrical Serial Breaks: Main wiring harnesses: up to 000681, 000682–001699, and 001700-up. Charging-system sections: engine serial numbers up to 130705 and 130706-up.
Transmission Serial Breaks: Clutch oil-pressure regulating valve: up to 406497 and 406498-up. Tow-disconnect adjustment: up to 002321 and 002322-up. Clutch-pack and planetary-component variants: up to 004010 and 004011-up. Reduction-gear shaft retainers: up to 003826, 003827–406497, and 406498-up. Transmission-pump configurations: up to 001742 and 001743-up.
Differential Serial Breaks: Bevel-gear and housing-cover variants: up to 002113 and 002114-up. Bearing-quill variants include 002114–004166 and 004167-up. Differential-control valve: up to 001699 and 001700-up.
Hydraulic Test Coverage: JD570-A analyzer test specifications: 001700-up. Function-test tables distinguish 001861–002226 and 002227-up configurations where applicable.
Accumulator Serial Breaks: Gas-valve components: up to 000976 and 000977-up; cylinder/end configurations: up to 001254 and 001255-up; piston-seal configurations: up to 001431 and 001432-up.
Hydraulic Pump and Drive Serial Breaks: Main-pump versions referenced at up to 405250 and 405251-up. Pump-drive and engine-support arrangements: up to 010078 and 010079-up.
Function Control-Valve Variants: Frame-steer valves: up to 001699, 001700–002226, and 002227-up. Redesigned lockouts: 406926-up.
Circle-Drive and Rotary-Manifold Variants: Circle-drive hydraulic-motor components include the 3746-up version. Rotary manifolds: up to 004643 and 004644-up.
Saddle Valve and Retaining-Pin Variants: Up to 003925 and 003926-up, with saddle-valve component differences at 003926–007141 and 007142-up.
Circle-Drive Gearbox Variants: Gearbox housings: up to 003939, 003940–010464, and 010465-up. Worm-gear and drive-shaft arrangements distinguish up to 002209, 002210–003939, and 003940-up.
Drawbar Pivot: Retaining-ring clearance provision for units up to 008763.
-
Engine: John Deere 303 cu. in. diesel (JD570) or 329 cu. in. (5392 cm³) turbocharged diesel (JD570-A), 6-cylinder, 4-stroke cycle
-
Horsepower: 85 hp (63.4 kW) net at 2300 rpm (JD570-A)
-
Transmission: Power Shift, 8 forward and 4 reverse speeds
-
Hydraulic System: Closed-center system, 2000 psi (137.9 bar), 27 gpm (102 L/min) at 2300 engine rpm
-
Brakes: Foot-operated, hydraulically actuated, wet-disk service brakes on 4 tandem wheels
-
Operating Weight: 18,625 lbs (standard equipment without cab, JD570)
-
Fuel Tank Capacity: 50 gal (189.3 liters)
John Deere Manual Features & Selected Content Preview

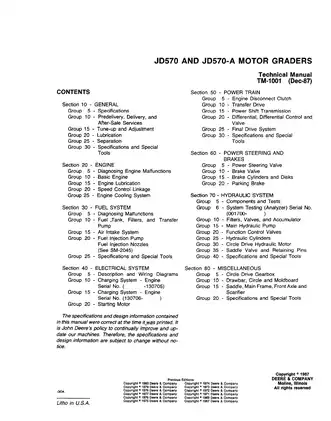

John Deere publication TM-1001 (December 1987) covers service and repair of the JD570 and JD570A motor graders, from engine work and power-unit separation to transmission, hydraulic, and grading-equipment service.
PDF Search, Bookmarks, and Page Details
Search and diagram detail: Text search is available on many pages, but some transmission, steering, and hydraulic pages lack searchable text. Embedded bookmarks cover the main sections and numerous service topics, although some individual entries have inaccurate labels or destinations. Small wiring labels are readable when enlarged.
Supplied as one printable 526-page PDF in English. This total includes the front and back covers, their two blank reverse pages, and 18 blank section pages.
Engine, Power Train, and Grader-System Service
The selected coverage below highlights the main service areas. Other included topics range from cab removal to neutral-start switch adjustment.
-
Engine repair: Cylinder-head service, wet-liner and piston inspection, crankshaft work, timing-gear installation, and lubrication-system diagnosis.
-
Power train: Disconnect-clutch service, transfer-drive repair, power shift transmission overhaul, differential adjustment, and tandem and final-drive work.
-
Hydraulic testing: JD570-A System Analyzer procedures, function-leakage checks, accumulator testing, control-valve service, and hydraulic-cylinder repair.
-
Steering and brakes: Serial-specific steering-valve repair, steering-system bleeding, brake-valve diagnosis, wet-disk brake service, and parking-brake adjustment.
-
Electrical diagnosis: Harness layouts, charging-system tests, starting-circuit checks, and Delco-Remy and John Deere starter repair.
-
Grading equipment: Circle-drive gearbox service, moldboard and circle adjustment, saddle locking-pin repair, and front-axle and scarifier procedures.
Written for experienced service technicians, this manual assumes shop-service knowledge and access to the specified tools and test equipment.
Engine Repair and Cooling
The engine sections distinguish early and later liner seals and piston-pin assemblies. Inspection limits, component torque tables, and the exploded rocker-arm assembly view support internal engine work.
Timing-gear procedures use the JD254 tool; crankshaft rear-seal work specifies the JT30040 installer set. The manual warns that separating the rear seal from its wear sleeve can damage the seal and cause oil leakage.
Cooling-system coverage includes water-pump overhaul, thermostat testing, and oil-cooler configurations identified by engine serial number.
Fuel Injection and Turbocharger Service
Roosa Master C, CB, and JDB pump sections cover diagnosis, removal, installation, timing, and advance adjustment. Turbocharger inspection and overhaul accompany transfer-pump testing and fuel-system bleeding.
Speed-control linkage instructions also address JDB and DB2 pump applications.
Detailed injection-pump overhaul and injection-nozzle service require separate manual SM-2045, which is not included.
Power Shift Transmission and Final Drives
Step-by-step clutch-pack overhaul instructions accompany transmission pressure tests, clutch-pack and oil-manifold air testing, planetary-carrier service, and shift-linkage adjustment. The Transmission Control System - Dual Accumulator diagram and forward/reverse hydraulic-flow illustrations show the circuits involved in gear engagement.
Differential procedures cover bearing preload, ring-gear backlash, pinion cone-point adjustment, and tooth-contact checks. Tandem chain drives, final-drive planetaries, and the tow disconnect have dedicated repair instructions.
The transmission oil-pump section warns that assembling its gears dry can cause premature pump failure.
Hydraulic Diagnosis, Steering, and Brakes
The analyzer system and function-leakage tests are labeled for JD570-A, with test specifications for serial 001700-up. A pretest checklist, symptom index, and test-pattern charts connect reported faults to verification tests, helping distinguish pump problems from leakage in individual circuits.
The Hydraulic System schematic shows the relationship between pumps, pressure controls, accumulators, and operating functions. Steering-valve procedures distinguish several serial-number groups, including the change at 006725; brake coverage includes hydraulic actuation, accumulator assistance, and mechanical parking-brake service.
Complete main hydraulic-pump repair requires separate component manual CTM-7, which is not included. Pump-drive service and pump specifications remain part of this publication.
Wiring and Charging-System Variants
Main wiring-harness layouts distinguish machines through serial 000681, 000682–001699, and 001700-up. Main Wiring Harness - Two-Piece Type, Starting and Charging Circuits, and Cab Wiring illustrations provide harness routing, circuit connections, and wire-color codes.
Charging-system chapters split at engine serial 130705/130706, with additional coverage for later alternators. Windshield-wiper motor repair and hour-meter checks round out the electrical section.
Blade Equipment and Shop Service Data
Circle-drive and rotary-manifold work accompanies moldboard wear-plate service, extension installation, saddle adjustment, and scarifier and bulldozer attachment procedures.

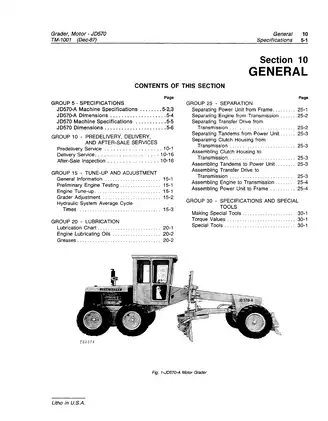

Predelivery checks, tune-up tables, lubrication schedules, fluid capacities, and dimensioned drawings for dealer-fabricated supports cover routine checks and shop setup.
Power-unit separation calls for suitable lifting and support equipment; hydraulic service involves stored accumulator pressure.
A Preview of Valve and Turbocharger Inspection Data
For the covered engines, valve-clearance instructions specify 0.014 in. at the intake valves and 0.018 in. at the exhaust valves, with adjustment permitted hot or cold.
For the JD570-A turbocharger, the inspection data specify 0.001–0.004 in. of axial end play for the rotating assembly, alongside illustrated bearing-check procedures.
