1987–1994 John Deere 6466 (Series 400) Diesel Engine Service Manual (P/N CTM1)

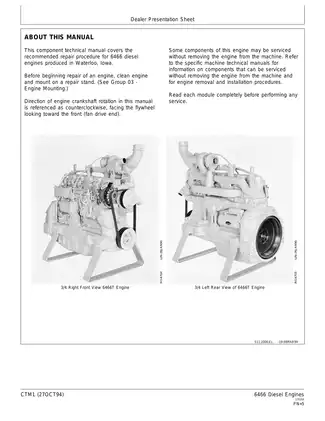

This John Deere component technical manual (P/N CTM1, revised October 27, 1994) covers repair, operation, and testing of naturally aspirated 6466D, turbocharged 6466T, and turbocharged-aftercooled 6466A Series 400 diesel engines.

Searchable Text, Bookmarks, and PDF Contents

Finding procedures and illustration details: Searchable PDF text and embedded bookmarks provide access to service groups and numbered pages. Small labels in the lubrication, cooling, and fuel-system illustrations benefit from zooming.

One printable 577-page PDF, including two cover pages, three introductory pages, and nine otherwise blank pages carrying only headers, footers, or section numbering. These pages are already included in the total.

Engine Overhaul, Fuel Injection, and Operating Tests

The following topics are selected examples of coverage, rather than a complete contents list. Other subjects include coolant filter-conditioner service and V-belt tension checks.

• Cylinder head and block: Cylinder-head removal, valve and guide inspection, liner replacement, piston and connecting-rod service, and assembly checks.

• Crankshaft and timing: Main-bearing inspection, crankshaft service, vibration-damper checks, camshaft-bushing replacement, and timing-gear backlash measurements.

• Lubrication and cooling: Oil-pan removal, camshaft- and crankshaft-driven oil-pump service, oil-cooler inspection, water-pump overhaul, and thermostat testing.

• Air intake and exhaust: Schwitzer and Garrett/AiResearch turbocharger inspection and repair, bearing-clearance checks, manifold service, and aftercooler procedures.

• Fuel injection: Pump removal, installation and timing, fuel-supply-pump repair, hydraulic aneroid activator service, and injection-nozzle testing and adjustment.

• Operating tests: Engine compression, oil-pressure and turbocharger-boost tests, symptom-based troubleshooting, dynamometer testing, and engine break-in procedures.

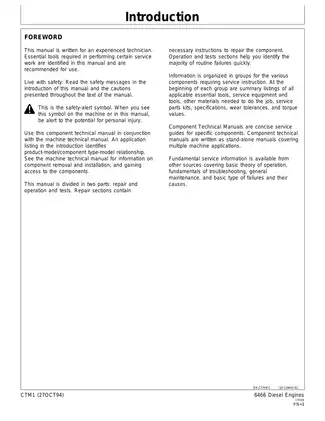

Written for experienced technicians, this manual identifies the essential tools and service equipment required for the covered work.

Engine Applications and Rebuild Decisions

The Engine Application Chart links agricultural and industrial machines—including 6600, 7720 and 8820 combines, 690C and 792D excavators, and tractors—to their engine configurations. This is an engine component manual; use the corresponding machine technical manual for engine removal, installation, and access to components.

Factory wear tolerances and clearance limits help you determine whether a component requires replacement or can be reused. Cylinder-head and block procedures cover valve-guide reconditioning, liner standout, piston protrusion, and head-gasket selection for the 6466D.

Cylinder-head tightening information distinguishes SAE Grade 8 and ASTM Grade 180 bolts with washers, conventional flanged-head bolts, and flanged-head bolts marked “SPECIAL.” The applicable procedure also depends on the cylinder-block casting.

The manual warns that oil trapped in the turbocharger circuit can enter the cylinders when a 6466T or 6466A is rotated on a repair stand, causing hydraulic lock and possible engine failure. It also explains that “SPECIAL” head bolts are single-use and can damage liners or the block when used in incompatible earlier castings.

Injection-Pump and Nozzle Service

The 6466D uses a Stanadyne rotary injection pump; 6466T and 6466A engines use Bosch or Nippondenso in-line pumps. Step-by-step procedures cover removal, installation, and timing work, while internal injection-pump repair and testing are assigned to an authorized diesel injection repair station.

KDEL 21 mm injection-nozzle coverage includes opening-pressure, leakage, chatter, and spray-pattern tests, followed by disassembly, inspection, reassembly, and adjustment procedures. New and used nozzle specifications are distinguished by nozzle-tip size.

Fuel-supply-pump sections separate roller-tappet and plunger-tappet designs. Hydraulic aneroid activator coverage extends to disassembly, cleaning, assembly, and diagnosis, rather than stopping at a general system description.

Turbochargers, Cooling, and Diagnostic Illustrations

Schwitzer and Garrett/AiResearch turbochargers have separate inspection criteria and overhaul procedures. Cooling-system coverage distinguishes gear-driven water pumps from standard-duty and heavy-duty belt-driven designs; the 6466A sections also address single-pass and two-pass aftercoolers.

The Engine—Sectional View shows the internal arrangement. Crankshaft-Driven Oil Pump and Camshaft-Driven Oil Pump illustrations trace the different lubrication paths, while How the Cooling System Works and the fuel-system flow diagrams explain circulation and component relationships. The Turbocharger Failure Analysis chart relates visible damage to possible causes.

Electrical coverage includes battery, charging-circuit, starting-motor, and gauge checks during engine tune-up.

Service Tools and Revision Details

Individual service groups list special tools, shop equipment, materials, specifications, and wear limits. Examples include the JDG405 Camshaft Bushing Service Set; fabrication drawings cover the DFRG3 Cylinder Liner Holding Fixture and a turbine-wheel holding fixture.

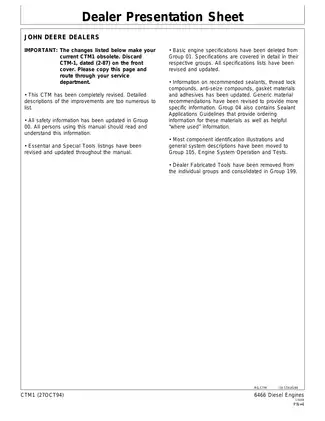

This 1994 revision replaces the earlier 1987 edition and updates essential tools, sealant recommendations, and application guidance.

Please remember that working on heavy diesel machinery carries inherent physical risks; always consult a certified technician if you are unsure about safe service practices for your specific equipment.

A Preview of Liner-Height and Crankshaft-End-Play Specifications

Cylinder liner height above the block is specified at 0.025–0.127 mm (0.001–0.005 in.) with the liners bolted down for measurement. The related inspection coverage addresses liner-flange measurements and shim selection.

Crankshaft end play is specified at 0.038–0.380 mm (0.0015–0.0150 in.), alongside thrust-bearing inspection and replacement information.
