1982 John Deere 410 Backhoe Loader Technical Manual (P/N TM-1037)

This John Deere technical manual covers the 1971–1982 410 Backhoe Loader, with service information for diesel and gasoline versions. Publication TM-1037, dated December 1982, covers machine separation, component repair, testing, and adjustment.

• Engine repair: Cylinder-head and valve work, wet-sleeve liners, pistons, crankshaft bearings and seals, balancer shafts, timing gears, and cooling-system repair.

• Fuel and ignition: Roosa-Master JDB injection-pump diagnosis and timing, carburetor repair, governor adjustment, and distributor testing.

• Power train: Collar-shift transmission repair, hydraulic reverser testing, disconnect-clutch service, differential-lock adjustment, and planetary final-drive repair.

• Steering and brakes: Power-steering valve and cylinder overhaul, wet-disk brake repair, bleeding, and updates for earlier brake assemblies.

• Electrical diagnosis: Wiring schematics, connector and terminal-routing diagrams, alternator and regulator tests, starter repair, and gauge and switch diagnosis.

• Hydraulic service: Analyzer connections, pressure and flow tests, cylinder-leakage checks, pump overhaul, and loader and backhoe control-valve repair.

• Backhoe and chassis: 9410 and 9500 equipment, extendible dipperstick controls, tapered pins and wedge bushings, loader structures, and cab and ROPS removal.

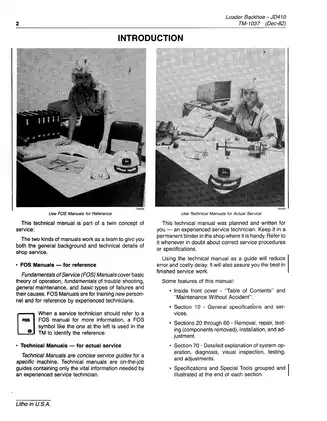

Written for experienced service technicians, this manual assumes familiarity with shop service; its introduction directs readers to separate Fundamentals of Service manuals for background theory.

Engine, Fuel System, and Cooling

The engine section goes beyond tune-up data to cover internal inspection and repair. It includes liner and piston measurements, bearing clearances, crankshaft rear-seal replacement, and camshaft and balancer-shaft timing. Tool references include the JDE-62 ring-groove wear gauge and JD-281 engine timing tool.

Cooling coverage includes radiator and water-pump service, an exploded view of the water pump and related parts, and the engine oil cooler fitted to later diesel units.

Injection-pump scope: The Roosa-Master section covers removal, drive-shaft seal work, installation, timing, and cam-advance adjustment. Internal pump repair is reserved for an authorized repair station. Fuel-injection nozzle testing and servicing are referred to separate manual SM-2045, which is not included.

Transmission, Reverser, and Brake Repair

Transmission coverage includes shifter mechanisms, shafts and gears, bearing setup, and differential tooth-contact patterns. Reverser diagnosis addresses slow or harsh engagement, clutch slippage, and pressure-regulating and speed-of-shift adjustments.

The steering sections distinguish earlier power steering from later hydrostatic arrangements and provide separate valve and cylinder procedures. Brake coverage includes pressure-plate and facing changes, lubrication updates after brake failure, and adjustment and bleeding.

Hydraulic Testing and Backhoe Systems

System-analyzer hook-ups, cycle-time checks, and hydraulic test-record charts support fault isolation. The symptom index links complaints such as drifting functions or loss of steering during loader operation to verification tests, helping distinguish cylinder leakage, control-valve faults, and pump problems before teardown.

Separate overhaul procedures cover hydraulic pumps with and without a pump serial-number plate. Illustrations include Oil Flow Through Main Hydraulic Pump, hydraulic schematics for the backhoe equipment, and the Reverser Clutch Control Valve diagram.

The pump section warns that misaligned stroke-control passages can prevent pressure sensing and destroking, allowing pressure to rise until a component fails.

The 9500 backhoe receives dedicated coverage for its locking control valve and rotary-vane swing cylinder. Other sections cover loader valve regeneration, accumulators, cylinder packings, and the extendible dipperstick control valve and linkage.

Frames, Dipperstick, and Operator’s Station

Structural procedures cover loader and backhoe frames, booms, buckets, tapered-pin removal, and wedge-bushing assembly. Extendible dipperstick work includes telescoping-extension removal, bearing-plate and wear-strip inspection, and reinstallation.

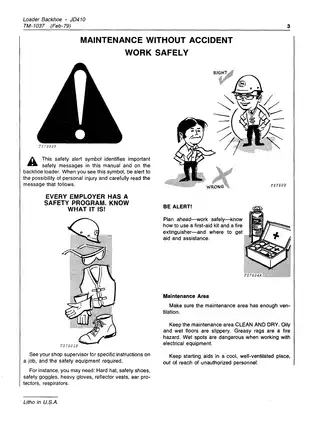

Cab and ROPS procedures include mounting arrangements, noise-reduction panels, and seat supports. Follow the factory safety warnings for raised equipment, stored hydraulic pressure, and heavy-component handling.

Service Data Examples

For engine inspection, the manual gives a maximum rectangular piston-ring groove clearance of 0.008 in., checked with the correct new ring and a feeler gauge.

Electrical data distinguishes the 35-amp and 55-amp alternators; the latter has a nominal 12-volt rating. The capacity chart lists 20.5 U.S. gallons for the combined transmission and hydraulic system.

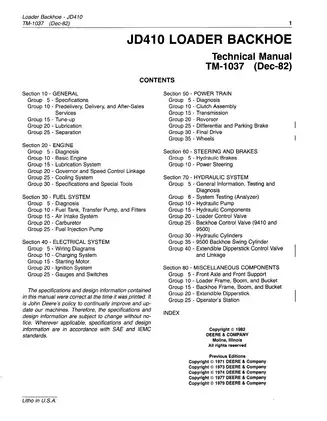

PDF Search, Navigation, and Included Pages

Text search and diagram use: OCR text is searchable through much of the service content, with recognition errors and some illustrated pages and diagram labels outside the searchable text. Embedded bookmarks cover the main sections and many subsections. Dense wiring schematics require zooming and rotation to read small terminal numbers and wire-color codes.

Supplied as one printable English PDF with 460 pages, including the front and back covers and four unnumbered blank pages.
