John Deere 410D/510D Backhoe Loader Repair Manual, 1994–2002 (P/N TM1513)

John Deere Technical Manual P/N TM1513, English edition dated 23JAN02, covers component repair for the 410D and 510D Backhoe Loaders. Configurations include MFWD and non-powered front axles, standard and extendible dippersticks, and the 410D Heavy Lift package. Machine operation and full-system testing and diagnosis are covered separately in TM1512.

PDF Search, Illustration Detail, and Page Count

Search and drawing detail: PDF text search and embedded bookmarks are not available. Small labels in the alternator wiring diagrams and fuse layout are readable in the separate full-page illustrations; the in-text thumbnails are much smaller.

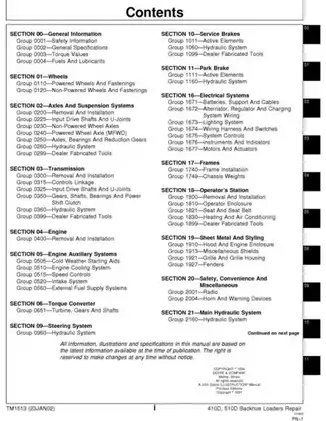

One printable English PDF with 1,555 pages, including one cover page and one contents page.

Axle, Transmission, and Backhoe Repair

The following selected repair topics outline the coverage. Other sections include RIVNUT fastener installation and radio and speaker removal.

• Axles, wheels, and steering: Non-powered and MFWD front axle repair, planetary hubs, drive shafts and U-joints, differential and pinion assemblies, steering valves, and steering cylinders.

• Transmission and torque converter: Step-by-step transaxle and reverser removal, disassembly and reassembly, clutch repair, MFWD transfer-case service, and torque-converter removal, installation, and air testing.

• Engine removal and auxiliaries: Engine removal and installation, separately or with the reverser, cooling-system component service, intake leak testing, and fuel-system bleeding.

• Loader and backhoe: Boom, dipperstick, and swing-frame removal, bucket and cutting-edge work, return-to-dig adjustment, control-valve repair, and hydraulic-cylinder resealing.

• Service and park brakes: Brake-disk and pressure-plate inspection, brake-valve repair, pedal adjustment, bleeding, and park-brake mechanism and control service.

• Electrical components: Battery testing, DEUTSCH and WEATHER PACK contact repair, switches, solenoids, logic module, instruments and senders, and serial-specific alternator wiring diagrams.

• Cab and HVAC: Cab/ROPS removal, seat, window and wiper service, plus R12 and R134A air-conditioning leak testing and compressor and clutch service.

This manual is written for an experienced technician, with essential tools identified for the relevant service work.

Serial Breaks and Component Selection

Serial-specific sections help match replacement parts and repair procedures to the machine's build. Transaxle, brake, hydraulic-line, and electrical arrangements split at 410D SN -796854 / 796855- and 510D SN -796890 / 796891-.

At SN -801199 / 801200-, repair chapters distinguish front axle pivot hardware and shimming, counterweights, heater/blower motors, hydraulic reservoirs, priority/loader valves, and selected cylinders. The specifications also distinguish alternators, transmission/torque-converter arrangements, tires, and travel data.

Backhoe valve procedures separate Gresen SN -796033 from Husco SN 796034-. Extendible-dipperstick construction changes at SN 787385, while extension-cylinder procedures change at SN 787396. These sections distinguish seals, support pads, bearing strips, bushings, and linkage arrangements.

Axle and Transmission Overhaul

Axle and transaxle procedures cover bearing preload, backlash, end play, and rolling drag. Separate APL-745 and APL-2035 sections address MFWD hub, knuckle, differential, and pinion construction.

Early and late transaxle procedures cover shifter shafts, clutch packs, differential lock, lube pumps, and the park-brake shaft. Reverser work includes the oil pump, planetary assembly, forward clutch, reverse brake, shift linkage, and hydraulic control valves.

The torque converter has no internal service parts and is replaced as an assembly. The installation instructions warn that excessive insertion into the reverser housing can damage the input-shaft seal.

Engine Removal and Auxiliary Systems

Cooling procedures cover the radiator, oil cooler, fan, and belt-tension adjustment. Other auxiliary sections address cold-weather starting aids, speed-control linkage, air-cleaner disassembly, and early and late fuel-tank removal.

Internal 4045 engine repair requires the separate CTM8 component manual.

Loader, Backhoe, and Main Hydraulics

Valve chapters distinguish early and late loader valves, Gresen and Husco backhoe valves, stabilizer valves, and the selective-flow solenoid valve. They cover relief and anti-cavitation valves and linkage adjustment.

Cylinder repair distinguishes the 410D Standard Lift from 410D Heavy Lift/510D crowd and boom assemblies, with separate swing, stabilizer, bucket, and extension-cylinder sections.

Main hydraulic coverage includes charge-pump and main-pump removal, reservoirs, filters, coolers, priority valves, and pressure-compensator components. Complete radial-piston-pump repair requires CTM7.

The stroke-control-housing instructions caution against missing cap-screw shims and overtightening, which can damage the housing.

Brake Repair Beyond Disk Replacement

The brake chapters include reclaiming and polishing transaxle-case braking surfaces, cleaning out machining contamination, and pressure-testing the brake pressure plate. Park-brake coverage includes the band, actuator, linkage, and controls.

Electrical Connections and Air Conditioning

Electrical service covers FNR, MFWD, park-brake, reverse-alarm, and return-to-dig switches and solenoids, plus restriction switches and serial-specific starting motors. Alternator and starting-motor component repair is covered in CTM77.

HVAC procedures cover the condenser, receiver/dryer, evaporator, expansion valve, and pressure switches. R12 and R134A sections distinguish compressor and clutch work and oil-charge data; R12 service includes volumetric-efficiency testing, pulley-bearing work, and shaft-seal replacement.

Section Views, Service Data, and Workshop Tools

Axle illustrations include the Cross Section of Axle, Hub and Knuckle Assembly and Knuckle Housing and Planetary Hub Exploded View—APL-2035. Early and late Transaxle Cross Sections and the MFWD Transfer Case Cross Section show drivetrain arrangements.

Hydraulic illustrations include Cross Section of Steering Valve and Loader Control Valve Sectional Components. Electrical pages add serial-specific wiring connections, fuse identification, restriction-switch connections, and connector-service illustrations.

Reference data include torque and adjustment tables, pressure and spring-test specifications, capacities, and inspection limits.

Tool callouts include the JDT845 lube-pump alignment tool, DFT1103 transmission spacer, DFT1101 cab and ROPS lift bracket, and JDG359 DEUTSCH electrical repair kit. Dealer-fabricated-tool sections provide construction dimensions for the related workshop fixtures.

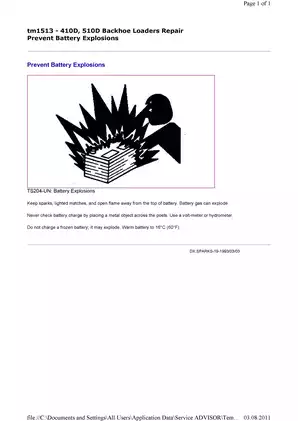

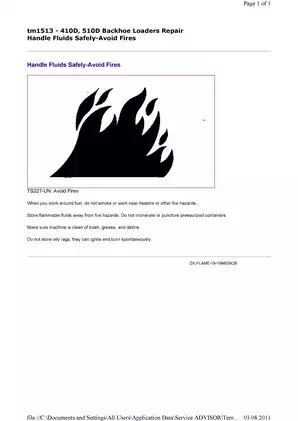

Safety note: Support raised loader and backhoe structures and the machine frame with approved stands, relieve hydraulic pressure before opening lines, and use rated lifting equipment for axles, transmission, cab, or ROPS work. The park-brake actuator contains a spring under load and must not be treated as an ordinary serviceable canister.

Transaxle End Play and Backlash: A Preview

For the 410D SN 796855- and 510D SN 796891-, the second-speed gear end-play check specifies a minimum of 0.07 mm (0.003 in.).

The differential backlash adjustment for those machines specifies 0.18 ± 0.04 mm (0.007 ± 0.0015 in.) between the spiral bevel gear and bevel pinion, with dial-indicator checks and bearing-quill shim adjustment.
