1988 John Deere 410B, 410C, 510B, 510C Backhoe Loaders Operation and Test Manual (P/N TM-1468)

John Deere TM-1468 (Oct-88) covers operation and testing for the 1988 410B, 410C, 510B, and 510C backhoe loaders, including MFWD and extendible dipperstick configurations. This is the Operation and Test volume; component repair and overhaul are covered separately in TM-1469. Together, those two publications replaced TM-1364.

Text search, bookmarks, and diagram detail: Text search is available through much of the manual, but some diagram pages and hydraulic theory pages are not searchable. Embedded bookmarks cover systems and procedures, with some incorrect destinations. Small foldout wiring labels require zooming; some lettering is faint.

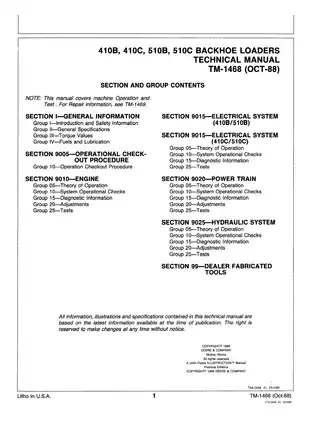

• Operational checkout: Complete-machine checks with OK/NOT OK decision paths and references to the appropriate diagnostic, adjustment, test, or repair information.

• Engine diagnosis: Compression, oil-pressure, turbocharger-boost, and cooling-system tests, plus engine valve lash clearance and injection pump static timing adjustments.

• Electrical troubleshooting: Separate B- and C-series circuit checks, wiring diagrams, starting and charging tests, monitor diagnosis, and C-series logic-module bench testing.

• Power train and brakes: Transaxle and reverser diagnosis, torque-converter stall testing, brake bleeding, and brake-pedal, equalizing-valve, and control-linkage adjustments.

• Hydraulics and MFWD: Main and charge pump tests, cycle-time checks, relief-valve checks, steering leakage diagnosis, MFWD clutch-pressure testing, and cylinder leakage and drift tests.

• Heating and air conditioning: R-12 system diagnostics, expansion-valve and temperature-control-switch tests, evacuation, charging, and compressor-belt adjustment.

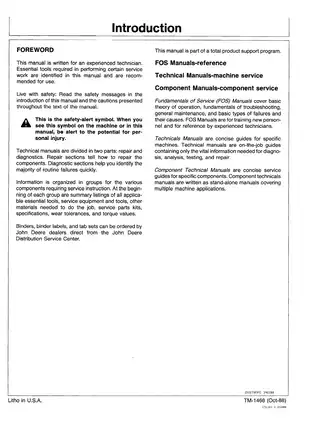

Written for experienced technicians, this manual assumes access to the essential tools and test equipment identified for the work.

Operational Checkout Before Repair

The operator-seat checkout requires no special tools or gauges. Its decision paths help separate initial symptom checks from faults that need pressure, flow, or electrical testing before repair decisions are made.

Observe the manual's precautions for raised attachments, hydraulic pressure, and machine movement during testing.

Engine Tests and Timing Tools

Engine diagnostic charts address hard starting, smoke, overheating, and loss of power. Testing extends to crankshaft end play, valve lift, fuel-transfer-pump pressure, intake leakage, and radiator airflow.

The engine cross-section identifies internal components. Static timing instructions specify the JDE81-1 flywheel turning tool and JDE-81-4 timing pin.

B- and C-Series Electrical Systems

B-series material includes ROPS and cab electrical schematics and pictorial diagrams. C-series coverage adds display-monitor and logic-module circuits, connector and ground locations, wire-routing descriptions, and tachometer calibration.

The logic-module bench-test precautions explain how contact between test leads can cause module failure. The separately referenced SP655 electrical wall chart is not included in this PDF.

Reverser, Transaxle, and Brake Diagnosis

The Reverser Test Procedure Chart brings together shift, cooler, lubrication, and converter-circuit readings. A Torque Converter and Reverser Hydraulic System Schematic traces the oil paths, while the MFWD differential section explains equal- and unequal-traction operation.

The PDF contains two torque-converter stall-speed tables with different 510B limits. Brake coverage includes valve and brake-element leakage checks to support repair diagnosis.

Hydraulic Pump and Control-Valve Variants

Separate theory sections cover the B-series main pump and the C-series 3000 series radial piston pump. Cessna and Gresen loader valves, steering priority-valve operation, and the Husco auxiliary valve for the extendible dipperstick are documented.

Early and late B-series loader spools use different metering arrangements. The 410B neutral-leakage test also distinguishes machines through S/N 717919 from S/N 717920 onward, with different test hardware.

Hydraulic circuit symbols and the 410C/510C Hydraulic Schematic support circuit tracing. The test sections include flow-meter calibration and the JT38070 diagnostic destroke wiring harness. Prolonged battery energization can damage the pump's destroke solenoid.

R-12 Diagnosis and Service Specifications

The air-conditioning Operating Pressure Diagnostic Chart relates gauge readings and sight-glass conditions to possible faults. Receiver-dryer, expansion-valve, and compressor-control operation are also explained.

Reference data covers inch and metric hardware torque, wheel cap screws, hydraulic fittings, fuel and lubricant specifications, and fluid capacities, including MFWD distinctions.

Printable PDF and Included Pages

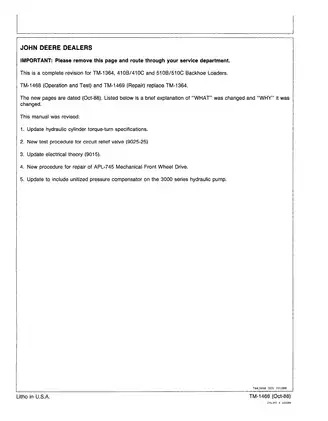

This single 508-page PDF is printable. The total comprises 480 pages of introductory and technical material, one front cover, one back cover, the one-page dealer revision notice, and 25 blank or header-only pages; all are already included in the total.
