John Deere JD401-C Loader & Backhoe 1979 - Comprehensive Diagnostics & Repair Guide, TM-1092

John Deere JD401-C Loader and Backhoe Loader Technical Manual

Engineered for the rigorous demands of 1970s construction and utility sectors, this official John Deere TM-1092 document serves as the master blueprint for maintaining and rebuilding the JD401-C platform. Heavy-duty overhaul protocols for the 219 cubic inch diesel engine are presented with expert-level precision, ensuring that critical tolerances like valve lift and crankshaft end play are met to factory standards. Professional technicians utilize these specific hydraulic and power train workflows to eliminate guesswork and maximize the service life of both the loader and backhoe assemblies.

Machine Identity & Active Model Treatment

Technical specifications and actionable repair data in this manual are strictly focused on the following configurations:

• John Deere JD401-C Loader (1973-1979)
• John Deere JD401-C Backhoe Loader (1973-1979)
• Compatible Backhoe Attachments: Series 9250 and 9250-A

Investment Protection & Service ROI

• Implement precise "System Testing" protocols to identify hydraulic pressure drops before they lead to expensive pump failure.
• Utilize the "Engine Break-In" schedule for newly rebuilt 4-cylinder diesels to ensure piston rings seat properly for maximum compression.
• Apply exact torque values from the localized hardware charts to prevent stress fractures in the loader frame and backhoe boom pivots.
• Follow the "Predelivery and After-Sale" inspection cycles to maintain high resale value and peak operational safety.

Document Archive Logistics

• Total Page Count: Approximately 400 pages of high-density technical data
• Official Document Number: TM-1092 (including Oct-79 revisions)
• Publication Source: John Deere Litho in U.S.A.
• Format: Fully searchable high-resolution PDF

Hydraulic & Mechanical Benchmarks

• Hydraulic System Pressure: 2350 psi (16,203 kPa) | Critical for breakout force integrity.
• Engine Output: 62 Net hp (46.2 kW) @ 2500 RPM | Ensures baseline power for dual-function loading.
• Transmission Logic: Constant Mesh 8-Speed | Verified via the no-clutch hydraulic reverser check.
• Cylinder Bore/Stroke: 2.75" Boom / 2.5" Bucket | Defines the lift capacity and cycle times.
• Battery Configuration: Dual 12-Volt (Negative Ground) | Essential for cold-weather starting aid reliability.

Visualized System Schematics

Technical illustrations include high-resolution exploded views of the 219 cu. in. diesel core, intricate hydraulic valve stack cross-sections for the 9250-A backhoe, and comprehensive wiring routes for the instrument panel. Visual paths for the closed-center steering valve and the planetary final drives allow for microscopic inspection of wear surfaces and seal placements.

Operational Diagnostics & Logic

• Hydraulic System Analysis: Step-by-step pressure testing for the main piston pump and reverser clutch control.
• Electrical Logic: Detailed troubleshooting for the transistorized voltage regulator and neutral start switch continuity.
• Engine Health: Procedures for checking valve seat concentricity and liner out-of-round tolerances.
• Drive Train Testing: Diagnosis of clutch pedal free travel (5-1/4" to 5-3/4") and directional shift timing.

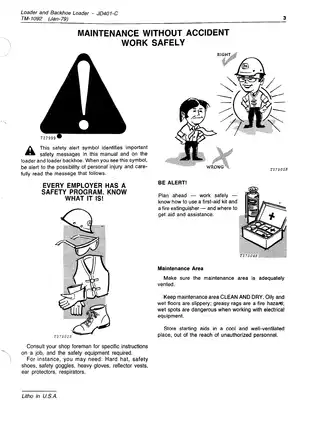

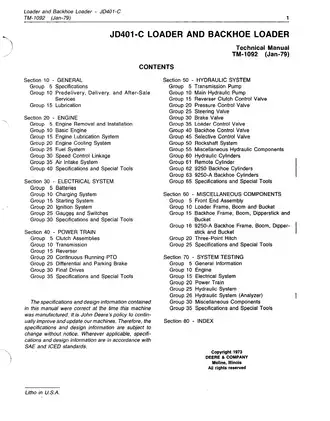

Master Service Contents

• Section 10: General (Specifications, Lubrication, Predelivery Services)
• Section 20: Engine (Removal, Basic Engine Core, Cooling, Fuel Systems)
• Section 30: Electrical System (Batteries, Charging, Starting, Ignition)
• Section 40: Power Train (Clutch, Transmission, Reverser, Final Drives)
• Section 50: Hydraulic System (Pumps, Steering, Brake/Loader/Backhoe Valves)
• Section 60: Miscellaneous Components (Frame, Boom, Bucket, 3-Point Hitch)
• Section 70: System Testing (Full Diagnostic Testing and Specifications)

FAQ

John Deere JD401-C Senior Shop Foreman Technical FAQ

What is the correct procedure for measuring and adjusting front wheel toe-in to prevent tire wear? To verify alignment, first use the loader bucket down pressure to raise the front wheels and turn them until each valve stem is at the bottom, then lower the wheels to the ground. Mark the inside of each rim at the bead at hub height for both the front and rear positions. The distance between the front marks must be exactly 1/8 to 3/8 inch (3 to 9.5 mm) less than the distance between the rear marks. If adjustment is needed, loosen the four tie rod clamps and rotate each tie rod the same number of turns until the specification is achieved, ensuring tie rod ends are equal in length and the tie rod slots face the rear.

How is the hydraulic reverser shift speed optimized for smooth operational cycles? The total speed-of-shift time for the hydraulic direction reverser must be calibrated to fall strictly between 3/4 and 1-1/4 seconds. Senior technicians should locate the adjusting screw on the reverser control valve; turning the screw clockwise will slow the shift, while counterclockwise increases the speed. Adjust the screw one-fourth turn at a time until the desired speed-of-shift is obtained to prevent mechanical shock during direction changes.

What are the critical engine speed settings and maintenance intervals for the 219 cubic inch diesel power plant? For peak efficiency, the slow idle must be set to 825 rpm. The fast idle should be governed at 2650 rpm when using the hand throttle, or 2800 rpm when utilizing the foot throttle. Routine maintenance requires an initial oil and filter change after the first 100 hours of operation, followed by a regular service interval of every 200 hours thereafter for both the engine oil and the full-flow filter.

What are the primary hydraulic pressure benchmarks and fluid requirements for the closed-center system? The main hydraulic piston pump is designed to maintain a maximum operating pressure of 2350 psi (16,203 kPa). At a rated engine speed of 2500 rpm, the pump displacement reaches 28 gpm (106 L/min). For all refills, the system requires John Deere Hy-Gard Transmission and Hydraulic Oil (J20A) or an equivalent to protect the inboard planetary final drives and wet-disk brakes.

How should the clutch pedal be calibrated to ensure proper throwout bearing engagement? The clutch pedal free travel must be adjusted so that the throwout bearing contacts the clutch fingers at a specific height. When the pedal is pushed to the bottom of the first stage detent, the top right edge of the rear pedal pad must be between 5-1/4 inches (133 mm) and 5-3/4 inches (146 mm) from the front of the bolting flange of the clutch housing. If adjustment is needed, remove the yoke from the pedal arm and rotate it on the fork shaft rod until the measurement is approximately 5-1/2 inches (140 mm).

What is the torque specification for wheel retainers and heavy hardware to ensure structural integrity? To maintain operational safety under heavy loading, both front and rear wheel retainers must be tightened to a torque of 100 lb-ft (14 kg/m). For other accessible hardware, the manual specifies 85 lb-ft (11.8 kg-m) for 1/2-inch three-dash high-strength bolts and up to 170 lb-ft (23.5 kg-m) for 5/8-inch three-dash high-strength bolts. Always refer to the specific torque chart for various bolt diameters and head markings.
