1997 Dodge Pickup R1500 Engine Manual

• Covers 1997 Dodge Pickup R1500 models with the Cummins 5.9L 12-valve 6-cylinder turbo diesel, VIN D, including California/EGR CPL 2174 and 2308 and non-California CPL 2175 applications.
• Covers valve-clearance adjustment, fuel-injection-pump timing and plunger-lift checking, low-idle and throttle-linkage setup, throttle break-over verification, TP-sensor scan-tool checks, and low- and high-pressure fuel-line bleeding.
• Details engine and cylinder-head removal, turbocharger/intercooler service, camshaft, tappet, and timing-gear work, fuel-injection component replacement, crankshaft-seal service, cooling-system component replacement, and oil-pan removal.
• Includes cylinder-head and valve-seat overhaul, piston grading for A/T and M/T builds, piston/rod/bearing inspection, cylinder-block machining limits, piston-cooling nozzles, gerotor oil-pump repair, oil-cooler testing, and lubrication-system diagnosis.
• 94-page PDF with 40 numbered figures credited to Chrysler Corp., a multi-page component torque table, engine and wear specifications, adjustment tables, tightening-sequence diagrams, system diagrams, and exploded component drawings.

Engine Adjustments and Technical Scope

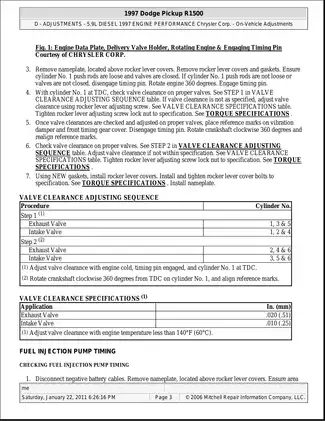

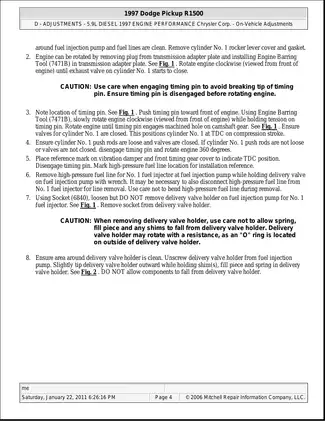

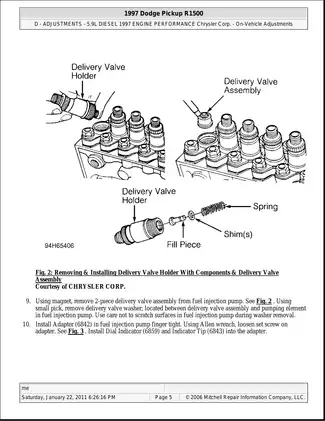

The article opens with engine identification and the adjustment work that depends on exact application-specific timing and calibration data. Valve-clearance coverage includes timing-pin/TDC positioning and the two-stage cylinder sequence. Fuel-injection-pump timing is checked by plunger lift against the CPL and TIMING TDC information stamped on the engine data plate, then carried through pump-gear repositioning, timing verification, and final reassembly.

Idle and linkage procedures distinguish A/T and M/T operating conditions. They cover the low-idle stop, throttle-lever break-over, ball-stud position, linkage-rod length, and final binding checks. The TP-sensor section applies to the A/T and EGR-equipped configurations identified in the article and uses scan-tool readings at the Data Link Connector. Fuel-system coverage continues through filter/water-separator priming and bleeding of the injection pump and injector lines.

Removal, Installation, and Overhaul Coverage

This is much more than an adjustment sheet. The repair chapters cover complete engine removal and installation, with A/T oil-cooler connections, transmission and clutch cross-references, A/C handling, accessory-belt routing, engine mounts, and cooling-system refill requirements.

Component-level repair procedures address the intake-manifold cover and air heater, exhaust manifold, turbocharger, intercooler, cylinder head, front timing cover, and crankshaft seals. Further sections cover rocker-lever assemblies, push rods, the camshaft, camshaft bearings and gears, tappets, gear housing, timing-pin assembly, M/T flywheel ring gear, fuel injectors, the fuel-injection pump, fuel-transfer pump, engine-speed and TP sensors, water pump, thermostat, and oil pan.

The overhaul material goes into cylinder-head warpage, valve springs and stem seals, thick- and thin-wall valve guides, integral and service valve seats, valve depth, seat width, and rocker-lever wear. The cylinder-block section covers piston and connecting-rod inspection, A/T and M/T piston grading, piston-ring orientation, rod and main bearings, crankshaft end play, deck resurfacing marks, cylinder-bore inspection, oversize machining, and repair-sleeve provisions. Engine-oiling chapters explain the piston-cooling nozzles, gerotor oil pump, gear-backlash checks, oil-cooler pressure testing, oil-pressure regulator valve, and oil-filter by-pass valve.

Critical Specifications, Tools, and Illustrations

The data section supplies component-specific torque values, general engine specifications, crankshaft and bearing limits, connecting-rod data, piston/pin/ring limits, cylinder-block tolerances, valve and spring specifications, cylinder-head dimensions, camshaft limits, tappet limits, valve-guide installation data, piston-grade tables, oil-pump clearances, plunger-lift data, and idle specifications.

Special-tool callouts include Engine Barring Tool 7471B, Socket 6840, Adapter 6842, Dial Indicator 6859 with Tip 6843, Thrust Washer & Bearing Kit 6862, and Puller L-4407A for timing work. Other repair sections identify Crankshaft Seal Installer 8281, Tappet Changing Set 3822513, and Fuel Injector Puller 3823276.

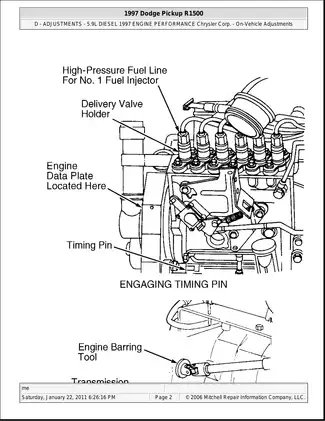

Useful figure coverage includes the engine data plate and timing-pin location, throttle-lever break-over measurement, the exploded intercooler assembly, the cylinder-head bolt sequence, camshaft/crankshaft timing-mark alignment, and the complete engine-oiling diagram. The PDF carries a Mitchell Repair Information Company copyright, with all numbered figures credited to Chrysler Corp.

Repair Notes and Scope Limits

The timing pin must be disengaged before the crankshaft is rotated; leaving it engaged can break the pin and compromise timing work. The fuel-injection-pump mounting nuts must not be used to draw the pump into the gear housing, and the specified mounting sequence matters because the pump or housing can be damaged. After block resurfacing or replacement of the block, crankshaft, or connecting rods, piston grade and head-gasket selection must be matched to the resulting geometry; intercooled and non-intercooled pistons are not interchangeable.

This engine article is not a complete vehicle repair manual. Transmission removal, clutch service, drive-belt routing, A/C refrigerant service, and computer relearn procedures are cross-referenced to separate articles, while internal turbocharger assembly service is directed to an authorized facility. Full vehicle wiring diagrams and chassis repair sections are outside its scope.

High-pressure diesel fuel can penetrate skin, and several procedures also involve refrigerant recovery, heavy engine lifting, and rotating components. Use the specified safety equipment and service precautions before starting this work.
