1984 Honda CB750SC Nighthawk OEM Shop Manual (P/N HM 1074)

This Honda Motor Co., Ltd. shop manual covers the 1984 CB750SC Nighthawk with its air-cooled DOHC inline-four and shaft drive. P/N HM 1074 identifies the publication, issued in December 1983.

Text search and wiring detail: Text search is limited to the opening five pages; there are no embedded PDF bookmarks. The main wiring diagram is sideways, and its small wire-color and connector labels require zooming.

• Engine repair: Engine removal and installation, cylinder-head and valve work, piston inspection, crankcase separation, and crankshaft bearing inspection and selection.

• Hydraulic tappets: Tappet inspection and bleeding, camshaft installation, valve timing, and troubleshooting for tappet noise and loss of power.

• Fuel and emissions: Carburetor overhaul and synchronization, pilot-screw adjustment, fuel-valve diaphragm testing, and California evaporative-emission system checks.

• Transmission and final drive: Hydraulic clutch repair, gear shift linkage service, gearbox inspection, starter-clutch work, and shaft-drive gear adjustment.

• Brakes and suspension: Hydraulic brake bleeding and caliper overhaul, rear drum-brake service, front-fork repair, steering bearings, and rear suspension disassembly.

• Electrical diagnosis: Charging-system tests, ignition troubleshooting, electric-starter inspection, lights and switches, wiring diagrams, and component-specific electrical test values.

This manual suits mechanics already familiar with standard workshop methods and precision measurement; it omits basic workshop instruction and recommends authorized-dealer service for certain maintenance items.

Engine Repair, Hydraulic Tappets and Lubrication

The cylinder-head section details hydraulic tappet bleeding, valve-guide replacement, valve seat refacing, and camshaft installation. It identifies hydraulic tappet bleeder 07973-MJ00000 and documents tappet compression testing. Honda cautions that improvised wire used for bleeding can damage the tappets.

Crankshaft and bearings: Color-code selection tables distinguish connecting-rod and main-bearing inserts, with Plastigauge inspection procedures. Starter-clutch and alternator-shaft service extends to the drive-chain tensioner and damper components.

Oil circulation: The engine lubrication diagram accompanies oil-pressure checks, relief-valve inspection, oil-pump overhaul, and oil-cooler service. Lubrication charts, fluid capacities, torque tables, and wear limits provide the related service data.

The manual distinguishes work possible with the engine installed from repairs requiring crankcase separation. Engine removal calls for an adjustable support; follow the documented support precautions.

Carburetor Service and Emissions

The fuel section identifies VE65A carburetors and the VE77A California type. It covers vacuum pistons, diaphragms, float chambers, jets, and choke valves, followed by carburetor synchronization using vacuum gauges and the pilot-screw idle-drop procedure.

California equipment: Vacuum hose routing diagrams and evaporative emission control schematics support purge-control-valve testing for difficult hot restarts. High-altitude adjustment and the associated emissions-label update are also covered.

Maintenance coverage: Printed pages 3-9 and 3-10 are missing from this PDF. The section contents assign idle-speed, ignition-timing, evaporative-emission, compression, and battery checks to those pages.

Clutch, Transmission and Shaft Drive

Clutch service includes master- and slave-cylinder inspection, hydraulic bleeding, and friction-disc and plate checks. Internal transmission repair covers shift forks, the shift drum, and mainshaft and countershaft assemblies.

Gear setup: The output gear case and final drive have separate tooth-contact, backlash, and shim-selection procedures. These distinctions help identify the correct adjustment method before a gear or bearing replacement. Drive-shaft damper and universal-joint service are included.

TRAC Suspension, Brakes and Chassis

The New TRAC front suspension section explains the anti-dive mechanism and its adjustment chart. Repair coverage includes the anti-dive piston and orifice, fork seals and bushings, steering-head preload, rear shocks, and swing-arm bearings.

Brake inspection data cover front discs and calipers as well as rear drums and shoes. The manual warns that inadequate disc-to-caliper-holder clearance can damage the disc and impair braking. Muffler and rear-fender removal and installation are also documented.

Ignition, Charging and Wiring

Charging and electric-starter circuit diagrams accompany alternator-output, regulator/rectifier, relay, and motor tests. Ignition diagnosis separates the two cylinder-pair circuits and covers the pulse generators and spark unit.

Cable and harness routing views help prevent pinched wires and steering interference during reassembly. Troubleshooting charts address hard starting, poor performance, tappet faults, and handling problems.

PDF Contents and Page Total

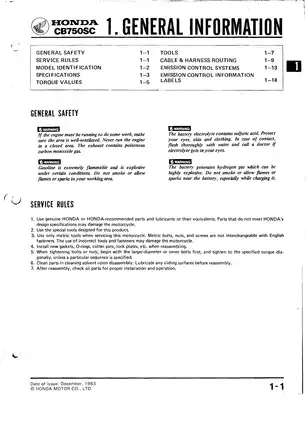

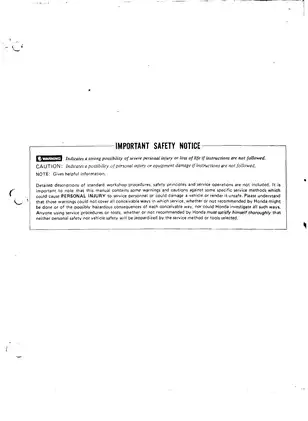

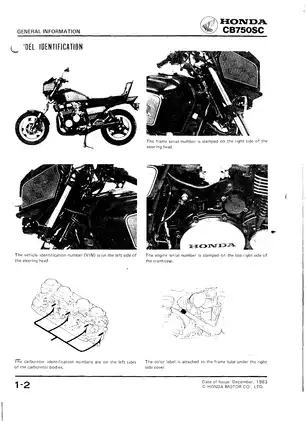

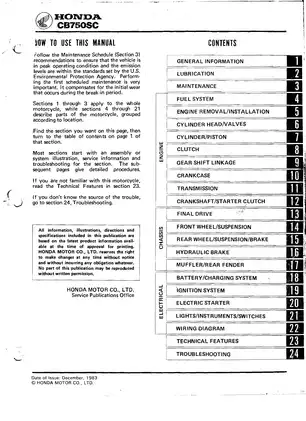

Supplied as one printable, English-language 335-page PDF. That total includes 322 technical-content pages, one cover, one safety-notice page, one contents/how-to-use page, and ten memo pages; these are already counted in the total.
