1995–1999 Range Rover P38 4.0/4.6 V8 & 2.5L BMW Diesel Workshop Manual, Volumes 1–2 (P/N LRL0326ENG)

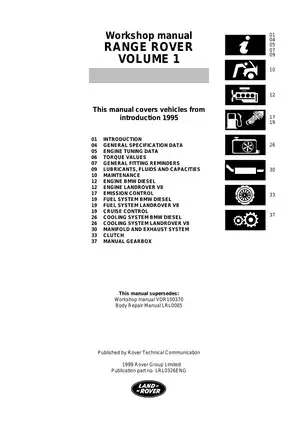

This Land Rover workshop manual, P/N LRL0326ENG, covers the 1995–1999 Range Rover P38 with 4.0 V8, 4.6 V8 and BMW diesel engines. Published in 1999, it combines Volumes 1 and 2 and supersedes Workshop Manual VDR100370 and Body Repair Manual LRL0085.

• Engine repair: Engine removal, diesel cylinder-head and bottom-end work, V8 rocker-shaft overhaul, and specification-dependent head-gasket and timing-chain procedures.

• Fuel systems and cooling: Lucas GEMS, Bosch Motronic and diesel injection documentation, injection-pump timing checks, cooling-system fault charts, and radiator, thermostat and water-pump replacement.

• Transmission service: R380 removal and seal replacement, Borg Warner transfer-box service, and ZF automatic transmission valve-body, fluid-pump and solenoid replacement.

• Suspension and brakes: Electronic Air Suspension depressurization, calibration and leak testing; Wabco ABS bleeding, accumulator checks, steering tests and Electronic Traction Control descriptions.

• Body electronics: BeCM operating modes, connector pin assignments and immobilization interfaces, plus Supplementary Restraint System component replacement and handling precautions.

• Climate control: HeVAC fault diagnosis, blend and distribution servo replacement, refrigerant performance testing, and separate ambient-temperature sensor procedures for the VIN changeover.

• Body repairs: Chassis and body dimensions, panel replacement, welding preparation, corrosion protection, and door, glass, sunroof and seat service.

Written for skilled technicians, this manual limits owner repairs to non-safety-critical tasks within their training and directs steering, brake, suspension and SRS repairs to a Range Rover dealer.

V8 and Diesel Repair Coverage

Engine work: The diesel chapter includes piston, connecting-rod and crankshaft inspection, cylinder-head work and oil-pump overhaul. Its piston-cleaning cautions explain how removing deposits from the skirts can destroy their graphite coating.

V8 head-gasket and timing-chain repair procedures are specifically identified for 1999 specification onward. Earlier V8 description and operation points to the separate 4.0/4.6 V8 Engine Overhaul Manual, which is not included here.

Injection and tuning: Sagem–Lucas GEMS 8.2 and Bosch Motronic M5.2.1 receive separate component descriptions, diagnostic information and Engine Management System Schematics. Diesel injection-pump timing procedures identify gauge holder LRT-12-121 and flywheel timing pin LRT-12-108.

Reference tables cover firing orders, valve timing, torque/angle specifications and fluid capacities, with lubricant recommendations organized by climate and market.

R380, ZF and Borg Warner Service

R380 procedures address the selector remote housing and output-shaft seal as well as transmission removal. ZF coverage extends to the pressure regulator, lock-up and shift solenoids, with a sectioned gearbox view explaining the internal assemblies.

The Transfer Box Control Schematic supports the high/low-range operating descriptions and ratio-control motor service. The separately referenced Borg Warner Overhaul Manual is not included.

EAS, ABS and Steering

TestBook is specified for EAS depressurization and calibration after ECU or height-sensor replacement. The pneumatic circuit diagram follows the compressor, dryer and valve-block circuits; the pipe-service cautions identify connection damage that can cause leaks.

Brake booster/ABS modulator hydraulic diagrams distinguish the earlier and revised systems. The text explains C-series and D-series ABS controllers and their different traction-control configurations, alongside accumulator precharge testing and steering pressure checks.

The manual specifies replacement of the brake booster/ABS modulator for internal failure, with separate procedures for the reservoir and seals. Pressurized suspension and brake work require the manual's system-specific safety precautions.

BeCM, SRS and HeVAC Diagnostics

The BeCM Control Schematic and connector tables document body-system interfaces, while separate GEMS, Motronic and diesel remobilization descriptions help identify the correct module-pairing requirements before ECM or BeCM replacement. SRS coverage distinguishes single-point sensing from distributed crash-sensor systems.

Electrical scope: The introduction specifies Electrical Troubleshooting Manual LRL0329 and Electrical Circuit Diagrams YVB101590, second edition, as companion publications. They are not included in this download.

HeVAC sections combine mechanical fault charts, servo procedures and TestBook initialization requirements. Ambient-temperature sensor repairs are separated at VIN 381430/381431, helping match the procedure to the installed arrangement. Bulb specifications and variant-specific refrigerant charge tables are also included.

Examples of BeCM Current and Glow-Plug Test Data

The BeCM operating description specifies module consumption of 30 mA in sleep mode with the vehicle unlocked, or 40 mA with the alarm armed.

For the BMW diesel's Beru glow plugs, the tuning data lists resistance of 0.4–0.6 ohms at 20°C.

Searchable Text, Bookmarks and PDF Contents

Search and diagram detail: Searchable text and embedded section/procedure bookmarks cover both volumes; some diagram callouts remain part of the illustrations. Small labels in the engine-management, ABS and BeCM schematics are readable when enlarged.

One printable, English-language 1,361-page PDF contains Volume 1 (566 pages), Volume 2 (794 pages) and a shared front cover (1 page). The total already includes 76 empty pages and four additional pages marked intentionally blank within the two volumes.
