2002–2009 Land Rover Range Rover Td6 & V8 Workshop Manual (P/N LRL0424ENG)

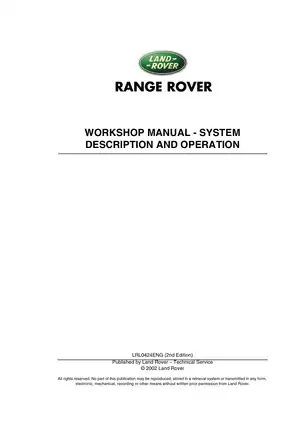

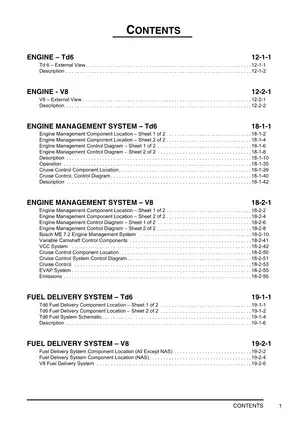

• 809-page official Land Rover publication LRL0424ENG (2nd Edition, 2002) detailing the L322-series architecture
• Covers 2002–2009 Range Rover Td6 and V8 models, including gas and diesel variants across standard and NAS specifications
• Includes 47 technical diagrams, 4 component layout tables, and 3 specific engine management control flow charts
• Provides the foundational system descriptions and operational theory for launch-era engine management and auxiliary systems
• Streamlines complex diagnostics by explaining CAN bus networks, Body Control Unit (BCU) functions, and default limp-home modes
• Unpacks the GM 5L40-E and ZF 5HP24 automatic transmissions, NV225 transfer box, Servotronic steering, air suspension, and Dynamic Stability Control (DSC)

Engine and Management Systems

Delivered as a comprehensive PDF, this publication breaks down the system operation for the 2002–2009 Land Rover Range Rover. It details the mechanical architecture of the 3.0L Td6 and 4.4L V8 engines, documenting cooling loops, fuel delivery methods, and manifold designs. The text outlines specific engine management strategies critical for complex diagnostics and any subsequent repair. It maps out sensor inputs and actuator outputs while explaining how the ECM integrates with the transmission, cruise control, and climate control modules.

By detailing the exact logic behind controller area network communications, the material helps independent technicians avoid blind parts swapping. It also empowers workshops to bypass expensive dealership visits by including factory-level step-by-step instructions, such as the manual Service Interval Indicator reset procedure via the instrument pack, Tyre Pressure Monitoring (TPM) initialization, and the sunroof motor initialization.

Technical Data, Visual Aids, and Operational Theory

Baseline specifications are clearly defined. The V8 data lists a maximum power output of 210 kW at 5400 RPM with 440 Nm of torque. The 2926cc Td6 features an 18:1 compression ratio. Assembly data charts log exact cylinder head bolt torque values and highlight accessibility constraints unique to the Td6 engine bay. You will also find crankshaft and camshaft synchronization requirements to aid in timing diagnostics. The publication details the inner workings of the Electronic Diesel Control and Bosch ME 7.2 management systems, providing exact pinout assignments for harness connectors C0331, C0332, C0603, and C0604.

To further assist with mechanical tracing and electrical evaluation, the manual features essential wiring diagrams and highly accurate illustrations. These include the Dynamic Stability Control System Control Diagram, ZF 5HP24 Automatic Transmission - Sectional View, GM 5L40-E Automatic Transmission - Exploded View, Td6 Fuel System Schematic, and the Suspension Control Diagram.

Understanding these interconnected systems is vital to avoiding notorious L322 diagnostic traps during a repair. For example, when servicing the V8 Variable Camshaft Control (VCC), mechanics often overlook that the intake camshafts feature reverse-threaded bores for the timing chain sprockets; turning them the wrong way will instantly strip the assembly. Furthermore, on the Td6 engine, installing the fuel injector mounting claw without the flat side facing upwards will compromise the base seal, leaving the injector loose and causing severe pressure loss.

Because working with high-pressure fuel loops, heavy-duty air suspension pneumatics, and advanced engine management carries inherent risks, these operational theories and specifications are provided strictly as a reference to assist qualified technicians in understanding system behavior before turning a wrench to execute a physical repair.
