Ford Models Covered & Key Technical Specifications

Models: 2000, 3000, 4000, 5000

Sub-models / Variants: Agricultural (2000, 3000, 4000, 5000); Highway, Narrow, Vineyard (2000, 3000); 6-speed and 8-speed manual transmissions (2000, 3000); 8-speed manual transmission (4000, 5000); Diesel engine

Model Years: Vintage Era


  • Engine displacement: 158–256 cu in (2588–4195 cm³)

  • Compression ratio: 16.5:1–17.5:1

  • Intake valve clearance: 0.014–0.016 inches (0.36–0.41 mm) cold

  • Exhaust valve clearance: 0.017–0.019 inches (0.43–0.48 mm) cold

  • Cooling system capacity: 22.0–25.5 Imperial pints (12.5–14.5 liters)

  • Fuel tank capacity: 10.8–16.6 Imperial gallons (49.2–75.7 liters)

  • Maximum no-load engine speed: 2225–2475 rpm

Ford Manual Features & Selected Content Preview

This Ford Operator’s Handbook (P/N SE 3112), printed in the UK in January 1969, covers operation and routine maintenance for the 2000, 3000, 4000, and 5000 diesel tractors. It covers Agricultural versions of all four models and Highway, Narrow, and Vineyard versions of the 2000 and 3000.

PDF Layout and Navigation

Text search and navigation — The handbook text cannot be searched, and the PDF has no embedded bookmarks. The printed contents and index provide section and page references.

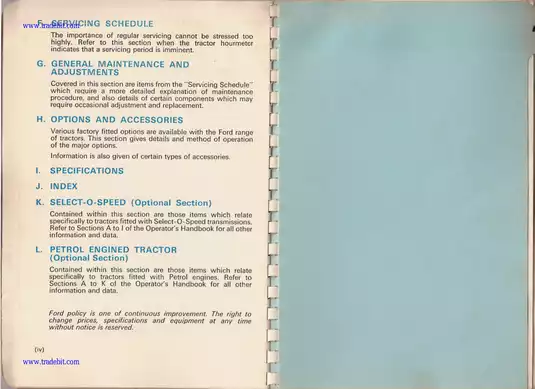

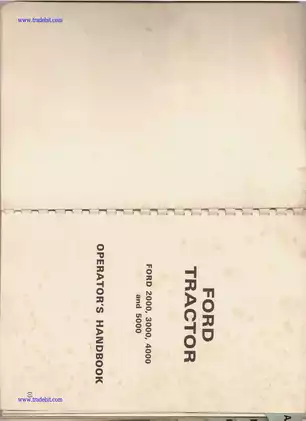

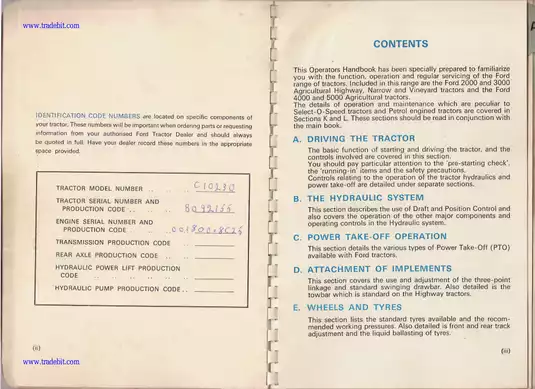

The download is one printable English-language PDF with facing-page spreads. The 59 PDF pages include the cover spread, the title-page spread, two preliminary spreads with identification information and contents, and 55 pages covering Sections A–J, including the index.


Tractor Operation and Scheduled Service

Selected topics are listed below. The handbook also explains differential lock operation and the heavy-duty towbar fitted to Highway tractors.

  • Engine and fuel service — Valve tappet adjustment, fuel-system bleeding, injector replacement, and separate timing procedures for C.A.V. and Simms injection pumps.
  • Clutch, PTO, and brakes — Transmission, Live, and Independent PTO operation, clutch pedal free-travel adjustment, and model-specific footbrake and handbrake procedures.
  • Hydraulics and steering — Draft and Position Control, auxiliary-cylinder operation, remote control valve options, and power-assisted steering pump filter replacement.
  • Wheels and implement attachment — Front wheel bearing repacking, track-width adjustment, tire ballasting, three-point linkage setup, and automatic pick-up hitch adjustment.
  • Electrical service — Headlamp and instrument-bulb replacement, lighting switch positions, fuse locations, circuit assignments, and fuse-lead colors.
  • Maintenance references — Service intervals, fluid capacities, lubricant and cooling-system specifications, transmission gear ratios, and ground-speed tables.

The handbook is for owners and operators who need to use the tractor, plan regular service, or carry out the adjustments and component replacements described by Ford.

Diesel Engine and Fuel-System Service

Figures G3–G4 illustrate fuel-system bleeding, and Figures G5–G6 accompany the injection-pump timing procedures. The specifications list distributor pumps for the 2000 and 4000 and in-line pumps for the 3000 and 5000. Section G gives separate instructions for the C.A.V. and Simms pumps.

Valve tappet adjustment differs between the three-cylinder engines and the four-cylinder 5000. The injector replacement procedure covers removal and sealing washers. The service schedule refers injector testing to a Ford dealer.

Hydraulics and Implement Connections

The 4000 uses an engine-driven piston pump with Transmission PTO and a PTO-driven gear pump with Independent PTO. The auxiliary-services instructions distinguish the 5000’s separate tapping point from the control-valve arrangement on the other models.

The options section covers single- and double-spool remote valves, with or without detents. The operating notes explain how holding an external cylinder at the end of its stroke can damage the relief valve. Never work beneath an implement supported only by the tractor hydraulics.

Figures D1–D2 show the three-point linkage and lift-rocker arrangements. On the 2000 and 3000, the accessory swinging drawbar and automatic pick-up hitch use the same mounting points, so only one can be fitted at a time. Section H covers the changeover.

Clutch, Brakes, and Wheel Setup

The clutch tables distinguish Transmission, Live, and Independent PTO configurations. Footbrake adjustment covers expanding-shoe brakes on the 2000 and 3000 and disc brakes on the 4000 and 5000. Transmission-type and rear-wheel-type handbrakes have separate adjustments.

Figure G7 shows the front hub assembly for bearing removal, inspection, and repacking. Track-adjustment diagrams distinguish Agricultural, Highway, Narrow, and Vineyard layouts. The options section also covers power-adjusted rear wheels, wheel weights, and belt pulley installation.

Starting, Instruments, and Lighting

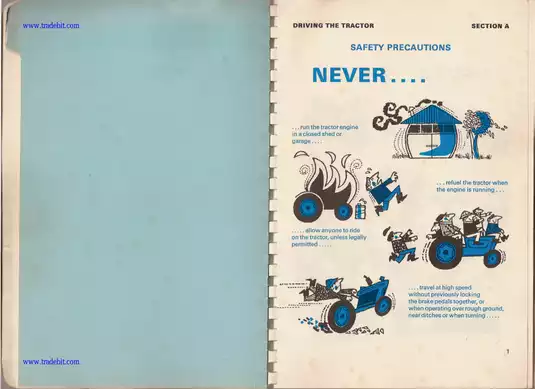

The driving section covers starting, shutdown, dashboard instruments, and warning lights. The cold-weather instructions describe Thermostart, the excess-fuel button on the 3000 and 5000, and the separate ether-start accessory. Ford warns against using ether with Thermostart.

Figures G15–G16 show the accessory terminal and fuse locations. Lighting service distinguishes standard fuse protection, wide-fender fuse boxes, and cartridge fuses on tractors with direction indicators and standard fenders. The electrical references cover bulb service and fuse identification. Wiring schematics are absent.

Maintenance and Repair Scope

The service schedules cover engine and hydraulic fluids, filter service, cooling-system care, and tractor storage. The reference tables list model- and PTO-specific capacities, lubricants, thermostat specifications, and tire-ballasting limits.

Repair coverage is limited to the adjustments and component replacements described in the handbook. Internal engine, injection-pump, and transmission overhaul fall outside its scope. Optional Sections K (Select-O-Speed) and L (gasoline engines) appear in the printed contents. The supplied edition ends with Section J.

Examples of Hitch and PTO Specifications

The three-point linkage table lists Category 1 as standard for the 2000 and 3000 and Category 2 for the 4000 and 5000. The options section also explains how the 3000 and 4000 can be changed to the other category.

For the 5000’s Independent PTO, the handbook calls for 1,900 engine rpm to obtain 540 ± 10 PTO rpm. It gives a separate setting of 1,700 engine rpm for UK Ford 5000 tractors.
