1998–2003 New Holland TN 55, TN 65, TN 70, TN 75 Tractor Service & Repair Manual

This New Holland service manual covers the 1998–2003 TN 55, TN 65, TN 70, and TN 75 tractors, including the 8035-series engines and the tractor's drivetrain, hydraulic, and electrical systems.

• Engine repair: Cylinder block and liner installation, cylinder-head inspection, Bosch VE injection-pump calibration, timing, and fuel-system bleeding.

• Clutch and transmissions: LUK clutch overhaul and adjustment, Synchro-Command teardown, Power Shuttle clutch-pack service, and electronic clutch calibration.

• Axles and PTO: Front LIM-SLIP differential overhaul, epicyclic final-drive repair, mechanical PTO service, and axle-bearing adjustments.

• Hydraulic lift and brakes: Lift-control adjustments, auxiliary control-valve service, trailer-brake-valve testing, brake master-cylinder replacement, and hydraulic brake bleeding.

• Hydrostatic steering: Control-valve disassembly, seal checks, return-to-neutral tests, pressure-relief calibration, and hydraulic pump inspection.

• Electrical systems: Magneti Marelli alternator testing, starter-motor overhaul, instrument-panel service, wiring diagrams, and operator safety circuits.

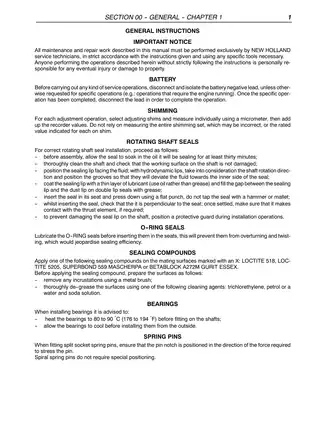

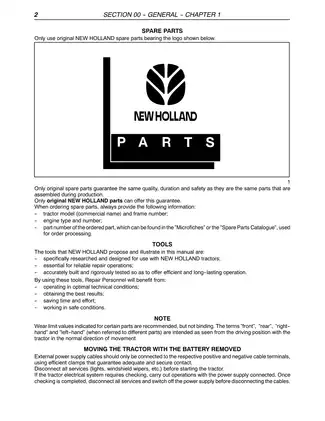

The manual specifies that its maintenance and repair procedures are for New Holland service technicians using the prescribed tools.

Engine Inspection, Fuel System, and Cooling

Internal engine data includes piston protrusion, valve clearances, and crankshaft main bearing journal limits. Cylinder-head and flywheel fasteners have staged torque-and-angle specifications, alongside conventional torque settings for items such as fan pulleys.

Cooling-system work extends to radiator removal, coolant-pump overhaul, thermostat checks, and fluid-capacity data. Longitudinal engine sections and lubrication/cooling diagrams show the related assemblies and fluid paths.

Crankshaft-seal instructions address the risk of damaging the new seal through premature removal or rotation of its protective insert.

Clutch Variants and Power Shuttle Diagnosis

LUK dual-clutch procedures are separate from the single-disc unit used with Power Shuttle. Mechanical-shuttle specifications distinguish the earlier non-synchronized F/R shuttle from the later synchronized version, helping match the tractor to the correct transmission data.

The Calibration and Diagnostic Unit (CDU CNH294084) accesses Electronic Control Module (ECM) menus for clutch fill time, switch status, and stored faults. Several synchronizer and creeper diagnostics are marked inapplicable to TN Standard tractors.

A sealing-compound application diagram identifies the transmission-case mating surfaces for reassembly.

Axles and Mechanical PTO

Front-axle coverage includes bevel-drive setup and LIM-SLIP friction-disc inspection. Rear sections address the differential lock and epicyclic final drives, with separate mechanical PTO removal and installation procedures. Bodywork instructions cover the hood, dashboard, fenders, and ROPS.

Lift Controls, Brakes, and Steering Tests

The mechanical hydraulic lift has position, draft, and mixed-control descriptions, linkage adjustments, and control-valve testing. Trailer-brake functional tests are identified for the Italia version.

Hydrostatic steering bench tests cover rotating-valve wear, seal leakage, return to neutral, and safety-valve calibration. Hydraulic circuit diagrams and test-equipment layouts accompany these checks.

Electrical Fault Tracing

Starting-system test charts and separate mechanical-shuttle and Power Shuttle operator safety schematics help trace no-start and interlock faults. The Power Shuttle input/output wiring diagram identifies ECM connections; charging-system procedures cover rectifier, rotor, and stator tests.

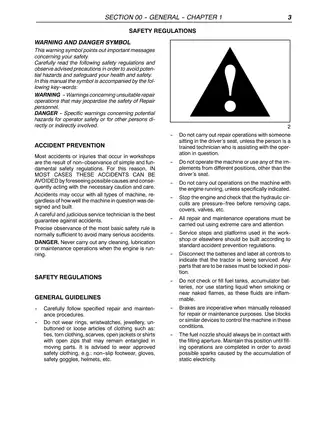

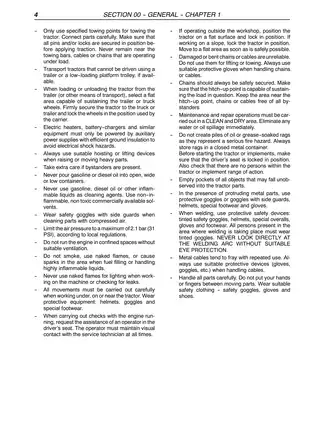

Always follow the factory documentation and workshop safety procedures for tractor splitting, electrical isolation, and pressurized hydraulic systems.

A Sample of Valve and Lubrication Data

These figures are a small selection of the engine inspection and operating specifications in the manual. Cold intake and exhaust valve clearance is 0.30 ± 0.05 mm; cylinder-head data gives an intake valve head diameter of 45.300–45.500 mm.

For TN 70 and TN 75, the lubrication table specifies oil pressure above 1.96 bar at 2500 ± 25 rpm, with oil-pan temperature at 100 ± 5 °C.

Search, Bookmarks, and Diagram Detail

Text access and wiring labels: Service text is searchable, with embedded section and procedure bookmarks. Some wiring-diagram labels are image-based and cannot be searched. Small connector and wire labels need zooming, particularly in the dense Power Shuttle schematic, where fine lines are pale.

Supplied as one printable, 871-page PDF: 870 manual pages across 14 service sections, plus one additional opening page already included in the total.
