Chrysler Pacifica 2004 Service & Diagnostic Manual Set

The diagnostic volumes provide fault-isolation tests, while the included Service Manual supplies the corresponding mechanical service, removal, repair, and installation procedures.

PDF Search, Bookmarks, and Diagram Detail

Search and navigation: Text sections are searchable across the five technical manuals, but many wiring and schematic labels are outside the searchable text. Internal bookmarks provide section navigation; several cross-file bookmark targets contain malformed filenames, so open the PDFs individually. The cover/foreword and welcome files have searchable text but no embedded bookmarks. Small labels on the sampled schematics are readable with zooming.

The ZIP contains seven printable English-language PDFs totaling 3,603 pages. This total includes the separate cover/foreword and welcome files listed above, plus 33 blank pages, 10 notes pages, and two service-manual comment pages within the technical volumes.

Engine Repair, Vehicle Systems, and Factory Diagnostics

These selected coverage highlights summarize the main workshop areas. Other included topics cover exhaust-system service and body-panel, glass, and trim procedures.

• Engine repair: Step-by-step procedures for engine removal and installation, cylinder-head service, valve inspection, timing-belt replacement, and lubrication-system repairs.

• Transmission and AWD: Transaxle removal, disassembly, inspection, and assembly, with hydraulic pressure tests, clutch checks, Quick Learn, and power-transfer-unit service.

• Brakes, suspension, and steering: Brake bleeding, component replacement, wheel-alignment procedures, steering diagnosis, and Teves Mark 25 ABS fault isolation.

• Powertrain troubleshooting: DTC and symptom-based tests for starting, fuel delivery, ignition, charging, cooling-fan control, EVAP/NVLD, and module communication.

• Body electronics: Diagnostic paths for airbags, BCM-controlled systems, power windows and locks, lighting, adjustable pedals, seats, and tire-pressure monitoring.

• Heating and air conditioning: ATC diagnosis, actuator calibration, refrigerant-system testing, and heater/A/C component removal and installation.

• Electrical references: Vehicle wiring diagrams, system schematics, component-location views, connector pinouts, scope patterns, and post-repair verification tests.

The Service Manual was prepared for professional automotive technicians; the diagnostic volumes assume access to a DRB III scan tool and suitable electrical test equipment.

Mechanical Repair and Driveline Service

The engine section combines compression and combustion-leakage testing with cylinder-head, camshaft, valve, rocker-arm, and hydraulic lash-adjuster procedures. Component specifications and torque tables accompany the repair instructions.

The timing-drive instructions identify the engine as a non-freewheeling design and warn that incorrect crankshaft or camshaft movement can damage valves and pistons.

Suspension and steering coverage includes alignment, component inspection, and power-steering flow and pressure diagnosis. Cooling-system sections cover leak and flow checks, coolant service, radiator fans, and related component replacement.

Transaxle repair: Internal service includes clutch and hydraulic-system work, supplemented by the transmission diagnostic volume’s gear-ratio, speed-sensor, solenoid, pressure-switch, and temperature-related tests. Quick Learn, clutch-volume information, EATX event data, and electronic pinion-factor programming are covered.

AWD components: The Service Manual addresses the power transfer unit, propeller shaft, overrunning clutch, and rear driveline module. The rear differential assembly is serviced as an assembly rather than through an unrestricted internal overhaul procedure.

NGC Powertrain Diagnosis and Key Programming

The NGC architecture combines engine and transmission control in the PCM. Chrysler’s six-step troubleshooting framework links complaint verification and fault isolation with repair verification. A DRB III No Response condition is addressed before moving into DTC or symptom tests.

Functional-operation sections explain speed-density sequential fuel injection, crank and warm-up strategies, open- and closed-loop operation, oxygen-sensor feedback, charging control, speed control, and Natural Vacuum Leak Detection.

The non-monitored-circuits section identifies problems the PCM may not recognize directly, including restricted fuel delivery, incorrect mechanical timing, low or uneven compression, exhaust restrictions, and certain injector faults. This distinction helps prevent a stored code from being treated as proof that the named component has failed.

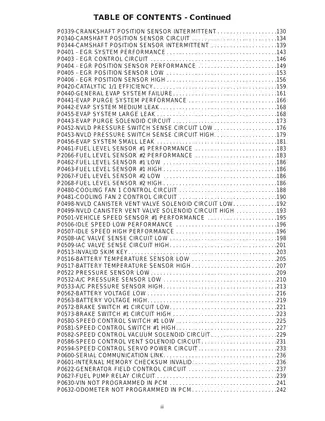

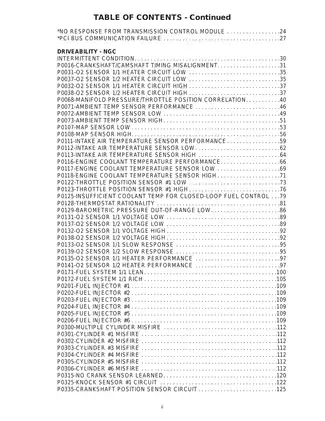

Codes and symptoms: Tests cover crank/cam correlation; MAP, IAT, ECT, and TPS circuits; fuel trim, injectors, misfire, and ignition-coil ionization. Additional paths address EGR, catalyst efficiency, fuel-level sensing, idle-air control, relay circuits, PCM programming, and PCI-bus message failures.

Starting-complaint tests cover PCM power and grounds, fuel pressure and leak-down, hard starting, crank/no-start, no-crank, and start-and-stall conditions. OBDII/Euro Stage III material explains MIL strategy, hard and intermittent codes, one- and two-trip faults, starts-since-set and distance-since-MIL data, and CARB readiness monitor operation.

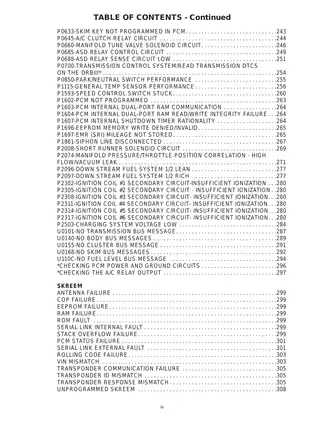

SKREES and SKREEM: Coverage explains the ignition-key transponder, SKREEM, and PCM authorization exchange, with programming procedures and tests for invalid or unprogrammed keys, antenna faults, rolling-code failures, VIN mismatch, and transponder communication errors.

Replacement programming affects whether existing keys remain usable. An incorrect country code requires SKREEM replacement, and a key learned to another vehicle cannot be transferred to this system.

Body Electronics and ATC Build Differences

Body diagnostics distinguish early- and normal-build configurations, including differences in ATC modules and tire-pressure monitoring. The manual warns against exchanging ATC modules between these configurations because incorrect matching can cause improper HVAC operation.

Communication tests, connector references, and component-location views support diagnosis across the BCM, restraints, door modules, instrument and information systems, heated systems, and wipers.

Wiring References and Required Diagnostic Tools

The Service Manual’s wiring coverage includes Power Distribution, Fuel/Ignition System, and Splice Information diagrams. Separate diagnostic schematics include the Teves Mark 25 Controller Antilock Brake and body-system circuits.

The three powertrain schematics cover starter, fuel-pump, fan, A/C-clutch, and manifold-tuning relay circuits; PCM sensors, O2, knock, EVAP/NVLD, EGR, and data-link circuits; and injector, ignition-coil, speed-control, brake-switch, generator, and idle-air-control circuits.

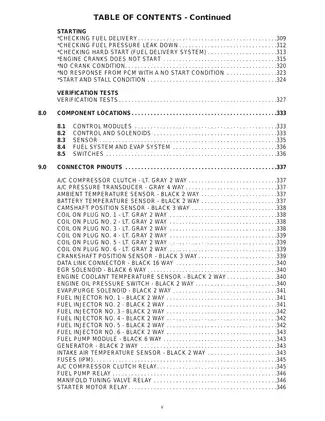

Connector references include PCM C1–C4, IPM C1–C9, the DLC, SKREEM, NVLD assembly, sensors, injectors, coils, and controlled outputs. Supporting charts show vacuum-gauge fault patterns, NGC cam/crank scope patterns, and EVAP smoke-test/NVLD adapter arrangements.

Factory tool references include the DRB III, Miller #8815 Diagnostic Pinout Box, #3638 Terminal Removal Tool, #8404 Evaporative Emissions Leak Detector, #6917 EVAP Diagnostic Kit, and specified fuel-pressure adapters and gauges.

The electrical cautions explain how direct probing can damage PCM terminals and how pierced insulation can lead to corrosion failures. A 12-volt test light is prohibited on the listed low-voltage supply, data-bus, crank/cam, vehicle-speed, and O2 signal circuits.

Fuel-system tests include pressure-release precautions, and road-test verification requires an assistant to operate the scan tool.

A Preview of Engine-Oil and Transaxle Fill Data

The factory capacity table lists an engine-oil fill of 5.2 L (5.5 qts.), including the oil filter, for the EGN engine.

For the automatic transaxle, it distinguishes a service fill of 3.8 L (4.0 qts.) from the 41TE/41AE overhaul fill of 9.2 L (9.7 qts.). These entries keep routine service quantities separate from the quantity specified after overhaul.
