2011 Toshiba e-STUDIO2040C/2540C/3040C/3540C/4540C Copier Service Manual (P/N SME100003B0)

This 2011 Toshiba service manual covers the e-STUDIO2040C/2540C/3040C/3540C/4540C multifunctional digital color systems, including North American, European, and Asia-Pacific market variants. Toshiba identifies the publication as SME100003B0, revision Ver02_2011-11.

• Scanner and laser optics: Scanner disassembly, exposure-lamp and scan-motor replacement, carriage positioning, belt-tension adjustment, and laser optical unit removal.

• Process and transfer units: Drum and cleaning-component replacement, developer material renewal, transfer belt unit disassembly, and doctor-to-sleeve gap adjustment.

• Paper handling and fusing: Feed-roller and clutch replacement, automatic duplexing unit service, fuser belt and heater replacement, and temperature-sensor checks.

• Image quality adjustment: Auto-toner sensor calibration, automatic gamma adjustment, color registration control, and separate copy, print, scan, and fax image adjustments.

• Electrical diagnosis: Input/output tests, test print patterns, error-code troubleshooting tables, AC/DC wiring diagrams, and electric parts layouts.

• Controller and storage service: PC board and HDD replacement, firmware and patch updating, data cloning, file system recovery, and SRAM initialization.

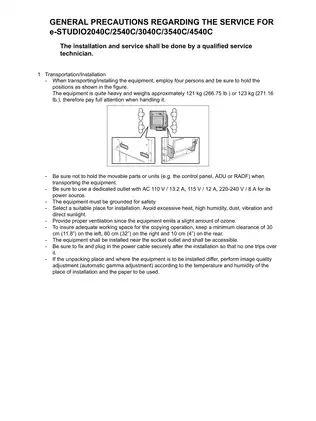

Installation and service are specified for qualified service technicians.

System Operation and Architecture

Initial sections break down the core copying process, including charging, scanning, image processing, development, and transfer. The four-drum EPU architecture is explained through the separate yellow, magenta, cyan, and black process units.

Sectional views and component layouts identify motors, sensors, clutches, boards, and heaters. The fuser description distinguishes the additional sub heater used on the e-STUDIO4540C from the arrangement on the other covered models.

Maintenance, Diagnostics, and Adjustment

Preventive maintenance coverage includes assembly-specific checklists, replacement counters, cleaning guidance, and PM support mode. Adjustment sections cover scanner alignment, paper registration, transfer belt compensation, and the high-voltage transformer outputs serving the charger needles, grids, developer units, and transfer rollers.

The image-defect troubleshooting tables connect symptoms such as color deviation, background fogging, banding, and poor fusing with component and adjustment checks. This helps technicians narrow the source of an image problem before selecting replacement parts.

The fuser control section explains why C411/C412 faults can remain after a hardware repair and how the 08-2002 error-status counter affects recovery. Fuser disassembly notes also address belt-guide orientation and the risk of scratching the belt during roller handling.

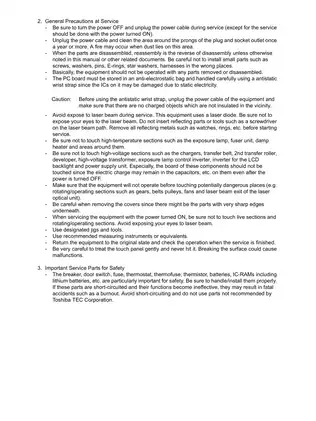

Working on high-voltage components, laser optics, and fuser heating elements involves shock, laser-exposure, and burn hazards; follow the manual’s isolation and service precautions.

HDD Replacement, Firmware, and Backup

HDD service includes SMART-based fault diagnosis, backup availability by data type, formatting requirements, restoration of user settings, and image adjustment after replacement. SYS and SRAM board procedures address encryption-key and license backup and recovery; replacing or initializing these boards can erase that information.

Data cloning is documented for the same equipment, with model, firmware-version, and installed-option compatibility requirements. AES encryption and High Security Mode have their own backup precautions and cloning restrictions.

Firmware chapters describe USB updating and the PWA-DWNLD-350-JIG1 and K-PWA-DLM-320 download jigs. Reference material includes the “State transition diagram of self-diagnosis modes,” test print patterns, pixel count distribution tables, and the “Flow chart for correcting USB update failure.”

Optional Feeders and Finishing Equipment

Removal and installation procedures cover the MR-3021/3022 RADF, KD-1027 paper feed pedestal, KD-1028 large capacity feeder, MJ-1101 finisher, MJ-1106 saddle stitch finisher, and MJ-1031 hanging finisher.

The MJ-6103 hole punch unit, KN-4530 bridge unit, and MF-3500 damp heater kit are also addressed. Related error tables and firmware procedures support diagnosis of connected options. Hole-punch stopping-position adjustment refers to the separate MJ-6101/6103 service manual.

Fuser Clearance and System Limits: A Preview

These examples represent a small selection of the adjustment and system specifications in the manual.

The fuser separation-plate gap is specified as 0.6–0.8 mm at normal fuser temperature with the pressure roller released. The adjustment section identifies the corresponding separation plate gap jig.

System specifications list up to 10,000 account codes and 1,000 department codes. Power consumption for the 200 V series is rated at 2.0 kW or less.

Searchable Text and Large-Format Wiring Sheets

Text search and diagram detail: The main chapters and appendix tables support PDF text search. There are no embedded PDF bookmarks. Small connector, pin, and signal labels on the dense DC wire harness diagram require zooming for comfortable reading.

The single printable 1,357-page PDF contains the English service publication with four additional German safety pages. The total already includes the cover and front matter, 328 appendix pages, the five-page revision record, three blank pages, and the publisher’s closing page.
