John Deere LT150, LT160, LT170, LT180 Lawn Tractor Technical Manual 2000–2005 (P/N TM1975)

John Deere technical manual TM1975, August 2002, North American Version, covers the 2000–2005 LT150, LT160, LT170 and LT180 lawn tractors with Kohler, Briggs & Stratton and Kawasaki engines.

Searchable PDF and Wiring Diagram Detail

Search and navigation: Embedded bookmarks provide access to system sections and individual procedures, and text search is available. Small wire numbers and connector labels in dense electrical diagrams require zooming for comfortable reading.

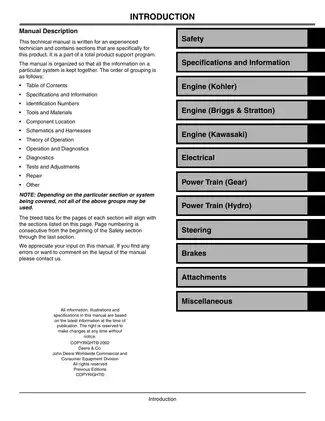

One 386-page printable PDF in English: four front-matter pages, 374 numbered manual pages and eight index pages. The original cover, introduction and blank pages are already included in this total.

Engine, Drivetrain and Mower Deck Repair

These highlights are a selection of the manual's contents; additional topics include front-wheel bearing repair and fuel-tank removal.

• Engine repair: Step-by-step engine removal, cylinder-head and valve work, piston and crankshaft inspection, carburetor repair, and starter-motor service.

• Engine diagnosis: Engine-specific troubleshooting charts, leakdown or compression testing, crankcase vacuum checks, oil-pressure tests, and governor adjustments.

• Electrical fault tracing: Model-specific wiring diagrams, cranking and charging circuit diagnosis, ignition/shutoff tests, and PTO/RIO interlock checks.

• Gear and hydro drive: Traction-belt replacement, shift-linkage adjustment, neutral-creep correction, pedal adjustment, and transaxle removal and installation.

• Steering and brakes: Steering gear and front axle removal, toe-in setting, parking-brake tests, and gear/hydro brake-linkage adjustment.

• Mower decks: Removal, leveling, belt and spindle service for 38-inch, Freedom 42, 42C and 48C decks, plus Freedom 42 timing-belt procedures.

John Deere wrote this manual for experienced technicians; its diagnostic procedures call for dedicated test equipment.

Engine Inspection and Fault Isolation

Kohler: Repair coverage extends to hydraulic valve lifters, balancer-shaft inspection and crankshaft alignment. Piston measurements, lubrication checks and internal wear limits support decisions about reusing or replacing components.

Briggs & Stratton Vanguard V-Twin: The section covers valve-guide reaming, cylinder-bore resizing and starter disassembly and assembly. Its cylinder-balance test distinguishes faults affecting one cylinder from those affecting both.

Troubleshooting tables connect symptoms with component tests, helping technicians narrow a fault before deciding which assembly to remove. The Vanguard erratic-running discussion explains how failed magneto kill-wire diodes can permit feedback between ignition modules and cause cross-firing.

Kawasaki FH500V: Valve-seat reconditioning, cylinder-bore resizing and oil-pump service are documented. The Engine Oil Flow Chart traces lubrication through the crankshaft, connecting rods and valve gear.

Model-Specific Wiring and Circuit Tests

Main Electrical Schematics and W1 Main Wiring Harness views are provided separately for LT150/LT160, LT170 and LT180. Cranking Circuit Electrical Schematics and PTO with RIO Circuit Schematics accompany circuit-specific diagnostic tables.

The electrical section also includes component location views, connector identification, wire-color references, battery-load tests and starter-current checks. Charging tests distinguish alternator output from regulator/rectifier faults.

Transmission, Steering and Brake Service

Hydrostatic theory explains how the swash plate, pump and motor control travel. The gear section includes shifter-detent and external brake work, while the hydro section documents control linkage and belt-tensioner service.

Transaxle repair limits: Both the gear unit and Tuff Torq K46 are treated as complete replacements when internal parts are needed; this is not an internal transaxle overhaul manual. The hydro section warns that operating the freewheel valve with the engine running can damage the transmission.

Brake documentation distinguishes the gear machine's external disc and friction pucks from the hydro machine's internal wet-disc brake. Steering shaft and sector-gear illustrations accompany the removal procedures.

Deck Variants, Timing and Spindle Work

Separate mower-deck removal and installation procedures cover SN -035000 and SN 035001-. Deck diagnostics address slipping belts, vibration and uneven cutting.

Freedom 42 and 48C sections describe spindle-bearing work. The 38-inch and 42C instructions specify complete spindle replacement when parts are worn or damaged. For the Freedom 42 mulching deck, the manual warns that incorrect timing-belt tension or belt-guide clearance can damage the belt or blades.

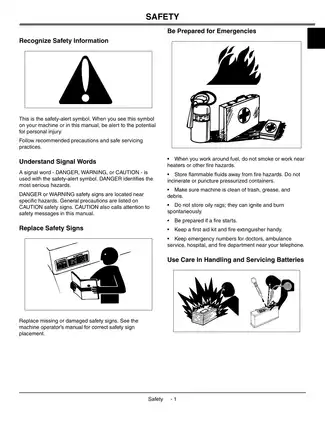

Follow the manual's machine-support and electrical-isolation precautions, particularly around rotating blades and spring-loaded deck-lift components.

Kohler Torque and Vanguard Clearance Examples

Kohler torque tables list muffler nuts at 24 N·m (216 lb-in.). The cylinder-head procedure specifies a final 41 N·m (30 lb-ft), reached through the illustrated incremental tightening sequence.

The Vanguard valve-adjustment section gives 0.10–0.16 mm (0.004–0.006 in.) clearance at the prescribed crankshaft position, which avoids compression-release interference.

Kohler specifications distinguish continuous from intermittent operating angles: the continuous limit is 20° in all directions with a full crankcase. This is an engine lubrication specification, not a tractor slope rating.
