Case Models Covered & Key Technical Specifications

Models: 1190, 1194, 1290, 1294, 1390, 1394, 1490, 1494, 1594, 1690

Sub-models / Variants: 2WD, Front-Wheel Drive (except 1190 and 1194; David Brown or Carraro axles, including AE1/AE2, AE3 and later Carraro designs; AE3 on 1690 and on 1594 before P.I.N. 11221501), Power Shift (1394, 1490, 1494, 1594, 1690), Synchromesh, Cab, High Platform

Model Years: 1980–1990s (1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999)

Serial Numbers: 1290 — early engine before P.I.N. 11052369 with independent PTO clutch, or before P.I.N. 11052410 with continuous PTO clutch; 1394 — revised standard front axle and dual steering cylinders from P.I.N. 11504412, Carraro axle change from P.I.N. 11503001, later Synchromesh layout from P.I.N. 11139846; 1490 — injection-pump timing change from P.I.N. 11414528; 1494 — Carraro axle change from P.I.N. 11518001, later Synchromesh layout from P.I.N. 11194089; 1594 — Carraro AE3 before P.I.N. 11221501, later Carraro axle from P.I.N. 11221501


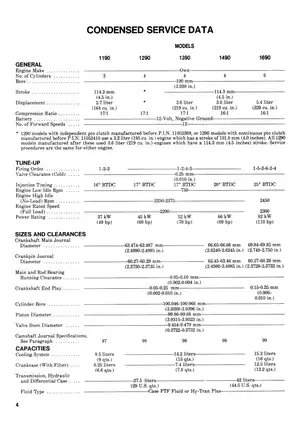

  • Engine displacement: 2.7 liter, 3.2 liter (early 1290), 3.6 liter, 5.4 liter

  • Engine configuration: 3, 4, or 6 cylinders

  • Transmission types: Power Shift, Synchromesh

  • PTO speed: 540 rpm

  • Steering systems: Manual, Hydrostatic Power Steering

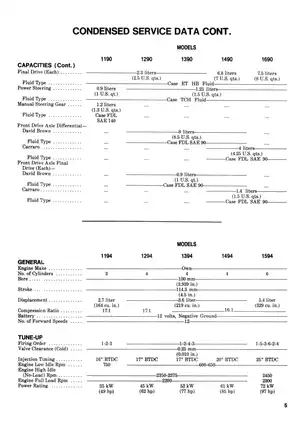

  • Cooling system capacities: 8.5 liters to 15.3 liters

Case Manual Features & Selected Content Preview

Case International (David Brown) tractor shop manual covering 1190, 1194, 1290, 1294, 1390, 1394, 1490, 1494, 1594, and 1690, with model-specific repair procedures and production-change references.

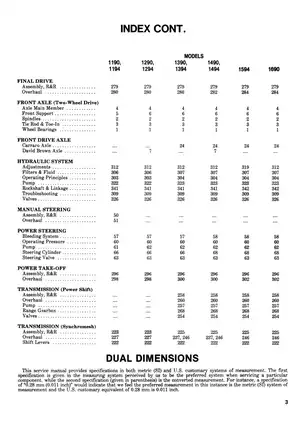

PDF Search, Bookmarks, and Diagram Detail

Search and diagram readability: OCR text search and section bookmarks are included. Recognition errors can affect model and serial numbers, and the added cover is not searchable. Small labels in the Thermostart and hydraulic schematics require zooming.

One printable PDF with 110 pages total, including one added cover page and 109 pages of manual content.


Engine, Drivetrain, and Selectamatic Service

The selected repair topics below outline the manual’s workshop coverage. Other included subjects include radiator removal, thermostat testing, and water-pump service.

  • Engine repair: Step-by-step removal and installation, cylinder-head and valve-train work, internal engine repair, oil-pump service, and turbocharger inspection and overhaul where fitted.

  • Diesel fuel system: System bleeding, Thermostart troubleshooting, transfer-pump service, injection-pump timing and removal, and injector fault isolation, testing, and overhaul.

  • Clutch and transmission: Tractor splitting, clutch adjustment and overhaul, Synchromesh transmission removal and internal repair, and Power Shift pump, valve, planetary-unit, and range-gearbox work.

  • Front axles and final drives: David Brown and Carraro axle removal, stub-axle and planetary repair, differential overhaul, pinion setup, bearing preload, backlash, and transfer-gearbox service.

  • Hydraulics and steering: Hydrostatic steering bleeding and pressure diagnosis, pump, valve, and cylinder overhaul, plus Selectamatic troubleshooting, rockshaft repair, draft-sensing adjustments, and linkage setup.

  • Electrical diagnosis: Battery and current-drain checks, charging-system fault isolation, Lucas and AC Delco alternator tests and overhaul, Lucas and Bosch starter service, and warning, gauge, lighting, and cab-accessory circuits.

The tractor-splitting procedures, internal component work, and use of measuring equipment and special fixtures make this manual best suited to experienced mechanics and owners already comfortable with major tractor repair.

Model and Configuration Differences

Model- and P.I.N.-specific sections help match the repair procedure to the tractor’s engine, axle, and transmission configuration before work begins.

Early 1290 engines: The engine-build changes are identified by P.I.N. 11052369 for tractors with an independent PTO clutch and P.I.N. 11052410 for those with a continuous PTO clutch. The manual states that service procedures are the same for both engine builds.

Front axles: Front-wheel drive coverage excludes the 1190 and 1194. The axle chapters distinguish David Brown units from Carraro AE1, AE2, AE3, limited-slip arrangements, and later production changes. The 1394 also has a standard front-axle and steering change at P.I.N. 11504412.

Transmission layouts: Separate Synchromesh layouts apply before and from P.I.N. 11139846 on the 1394 and P.I.N. 11194089 on the 1494. Power Shift coverage applies to the 1394, 1490, 1494, 1594, and 1690.

Engine Inspection and Diesel Testing

Internal engine coverage extends to valve seats and guides, rocker gear, timing gears, camshaft, pistons and connecting rods, cylinders, crankshaft and bearings, lubrication components, and flywheel service. Component-specific torque specifications, wear limits, running clearances, capacities, timing data, and adjustment values accompany the repair material.

The injector sections distinguish opening-pressure, seat-leakage, back-leakage, and spray-pattern tests. Injection-pump timing is tabulated by model and relevant P.I.N. changes, including the timing change on the 1490.

Clutches, Brakes, and PTO Assemblies

The clutch chapters distinguish Borg & Beck continuous and independent arrangements from Laycock double-disc assemblies. Adjustment and overhaul procedures include the required fixture arrangements and clutch-disc alignment tooling.

Brake coverage separates the shoe-and-drum systems on the smaller models from the disc-brake arrangements on the 1490, 1494, 1594, and 1690. Hydraulic brake bleeding, master-cylinder and wheel-cylinder service, and balance-valve checks are included.

The PTO sections distinguish single-speed, multispeed, and reversible-shaft assemblies. Output-shaft seal replacement differs by design: reversible-shaft units require removal and disassembly of the PTO assembly.

Hydraulic Flow and Steering Diagnosis

The hydraulic operating-principle sections distinguish the rear-mounted pump on the 1190, 1194, 1290, and 1294 from the front-mounted single or tandem pumps on the other models. They explain how PTO-clutch engagement and combining-valve position affect pump operation and oil flow.

This provides context for the Selectamatic fault lists covering failure to lift, hold, or lower, slow lowering, and incorrect depth control. Repair material also covers remote and three-way valves, steering-valve overhaul, and the different steering-cylinder layouts.

Electrical Tests and Workshop Illustrations

Electrical material concentrates on component testing and fault finding. Cab coverage includes wiper and blower motors, heater controls, and air-conditioning compressor-clutch circuit checks; the illustrations focus on components and test arrangements rather than a separate full-tractor wiring-diagram section.

Figures run through Fig. 278, with exploded assemblies, section views, test arrangements, and specification tables. Examples include the Carraro front-drive axle exploded view, Carraro/Synchromesh transfer-gearbox layouts, timing-gear alignment diagrams, the injection-pump timing table, Power Shift control-valve views, and rear-, single-front-, and tandem-front-pump hydraulic schematics.

Special Tools and Repair Cautions

Special-tool references include DB-8208 for David Brown axle pinion setting, CAS-1607 for front-drive final-drive work, CAS-1238/CAS-1239 for steering-valve service, and CAS-1229 for timing-cover/front-seal centering. Case tractor-splitting stands and dedicated clutch fixtures are also specified. Dimensioned pilot-shaft and detent-tool drawings support fabrication of installation aids.

The timing-gear section warns that rotating the camshaft or crankshaft with the gears removed can damage valve heads or piston crowns. Front-drive final-drive procedures also identify the risk of damaging axle-shaft oil seals through excessive shaft movement.

Several procedures involve tractor splitting, supported axle or cab assemblies, hydraulic pressure testing, and air-conditioning refrigerant service, so suitable lifting/support equipment and the applicable safety procedures are necessary.

Selected Injector and Alternator Test Specifications

Injector opening-pressure specifications distinguish new units at 18,750 kPa (2,720 psi) from used units at 17,650 kPa (2,560 psi). The nozzle-testing section pairs these specifications with leakage and spray-pattern checks using dedicated injector test equipment.

Lucas rotor-winding test specifications distinguish standard-duty alternators at 3.3 ohms from heavy-duty units at 4.3 ohms. The related sections include continuity and insulation checks, with illustrations showing the electrical test connections.
