Komatsu PC25-1, PC30-7, PC40-7 & PC45-1 Mini Excavator Repair Manual – 1996 (P/N SEBM020S0707)
387 Pages • 1 Printable PDF (English) • Download
Komatsu Models Covered & Key Technical Specifications
Models: PC25-1, PC30-7, PC40-7, PC45-1
Sub-models / Variants: PC25-1 (engine 3D84-2D: serial 1001–6470; engine 3D84E-3B: serial 6471 and up); PC30-7 (engine 3D84-2E: serial 18001–26422; engine 3D84E-3A: serial 26423 and up); PC40-7 (engine 4D84-2A: serial 18001–24521; engine 4D84E-3C: serial 24522 and up); PC45-1 (engine 4D84-2B: serial 1001–3505; engine 4D84E-3B: serial 3506 and up)
Model Year: 1996
Serial Numbers: PC25-1: 1001 and up, PC30-7: 18001 and up, PC40-7: 18001 and up, PC45-1: 1001 and up
Travel Motor / Final Drive Types: PC25-1 (PHX300N-29), PC30-7 (PHX300N-33), PC40-7 (PHX350N-41), PC45-1 (GM05VL)
PPC Valve Serial Breaks: PC25-1: 1001–5678 / 5679 and up; PC30-7: 18001–25054 / 25055 and up; PC40-7: 18001–23296 / 23297 and up; PC45-1: 1001–3014 / 3015 and up
-
Engine Speed (High Idling): 2,550–2,900 rpm
-
Engine Speed (Rated): 2,450–2,700 rpm
-
Valve Clearance (Intake/Exhaust): 0.20 mm
-
Engine Compression Pressure: 2.9 MPa (30 kg/cm²)
-
Engine Oil Pressure (High Idling): 0.3–0.35 MPa (3.0–3.5 kg/cm²)
-
Hydraulic Tank Capacity: 65 liters
-
Fuel Tank Capacity: 50 liters
Komatsu Manual Features & Selected Content Preview
Printed in May 1996, Komatsu shop manual P/N SEBM020S0707 covers service and repair for the PC25-1, PC30-7, PC40-7, and PC45-1 mini excavators.

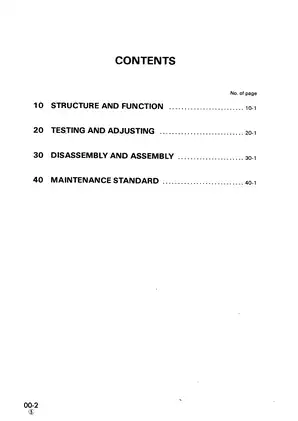

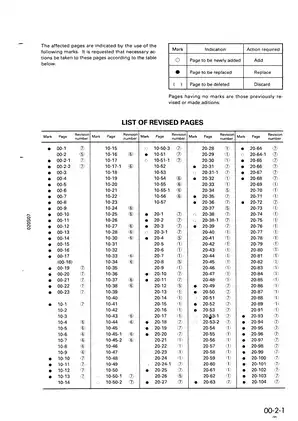

Bookmarks, Search Limits, and Included Pages
Navigation and wiring detail: Embedded bookmarks cover chapters and individual procedures, but text search is limited to the testing-section contents page. Small wiring labels require zooming; some crowded wire codes remain difficult to distinguish. The MAIN MENU bookmark points to a separate external file.

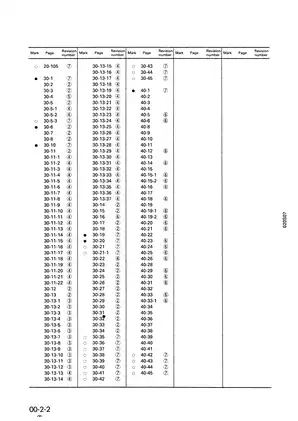

Two PC30 pump pages are out of sequence: printed pages 30-11-2 and 30-11-3 appear before 30-11-1.
The download contains one printable 387-page PDF in English. That total includes one cover, two revision-list pages, five revision-request forms, four section dividers, and 25 blank pages.
Hydraulic Diagnosis and Excavator Component Repair
These selected workshop topics outline part of the manual’s coverage. Further material includes hoisting guidance and electrical wire-code tables.
-
Engine service: Valve-clearance checks, compression testing, injection-timing adjustment, engine oil-pressure testing, and removal and installation of the engine and hydraulic pump assembly.
-
Hydraulic diagnosis: Main and control pressure testing, PPC valve adjustment, cylinder leakage checks, air bleeding, and hydraulic breaker troubleshooting.
-
Pump and valve systems: Gear and piston pump construction, control-pump operation, P-Q diagrams, and seven-spool and two-spool control-valve functions.
-
Travel and swing repairs: Step-by-step procedures for travel motors and final drives, plus swing-motor, swing-machinery, center-joint, and revolving-frame service.
-
Undercarriage and attachments: Track-frame and recoil-spring coverage, hydraulic-cylinder overhaul, work-equipment removal, bucket service, and breaker disassembly and reassembly.
-
Electrical troubleshooting: Wiring diagrams, connector locations and pin tables, engine-stop control, travel-speed acceleration solenoid logic, PPC lock, and monitor-system fault diagnosis.
Written for service technicians, this manual suits workshops equipped for hydraulic pressure testing and component overhaul. Its procedures assume experience with heavy assemblies and pressurized systems.
Pump Variants, Hydraulic Circuits, and Drift Diagnosis
Model-specific hydraulic circuit diagrams show connections between pumps, valves, and actuators. P-Q charts explain swashplate and pump horsepower control; PPC valve cross-sections relate control-lever movement to pilot pressure.
Detailed piston-pump teardown and assembly procedures cover the earlier A10VD17SR unit on PC30-7 and A10VD28SR unit on PC45-1. Later AP2D pump coverage starts at serial 26423 for PC30-7 and 3506 for PC45-1.
For equipment drift, internal cylinder-leakage measurements distinguish cylinder problems from control-valve leakage. H-mode troubleshooting charts also address slow operation, engine stalling under hydraulic load, travel deviation, weak travel, and swing faults.
The testing-tool tables identify hydraulic gauges, adapters, and a pump-performance flowmeter kit. Electrical diagnosis uses T-adapter equipment for connector measurements.
Electrical Variants and Monitor Fault Finding
Engine-stop wiring separates motor-operated shutdown from solenoid-operated shutdown. Connector-location drawings and pin tables follow the corresponding serial ranges; additional diagrams cover one-touch deceleration and attachment circuits.
E-mode charts address engine-stop, PPC-lock, and travel-speed faults. M-mode charts cover warning lamps, gauges, the buzzer, service meter, and cab heater.
PPC valve revisions use separate serial breaks from the engine and electrical changeover, with different valve illustrations, adjustment instructions, and spring data.
Travel Drives, Component Overhaul, and Repair Precautions
Travel-motor procedures distinguish the PHX units on PC25-1, PC30-7, and PC40-7 from the PC45-1 GM05VL assembly. PC45-1 coverage includes hold-flange and bearing-preload adjustment, but the instructions specify that the internal RV gear assembly must not be disassembled.
Swing-motor reassembly includes shaft-end-play and rotating-torque checks; swing-machinery service covers bearing installation and pinion starting torque.
The center-joint instructions identify the risk of damaging slipper seals and the oil-seal lip during rotor installation. On the PC45-1 travel motor, forcing or striking the rear flange can dislodge and damage the timing plate.
Seven-spool control-valve teardown is labeled for PC25-1, PC30-7, and PC40-7. Separate procedures cover the two-spool and PPC valves. Undercarriage references distinguish steel and rubber tracks and revised idler, roller, and recoil-spring configurations.

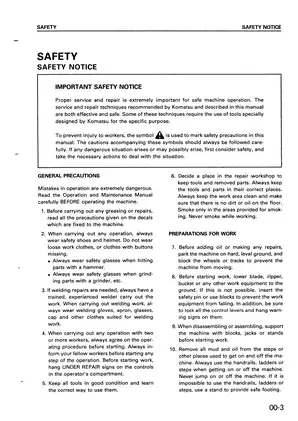

Because high-pressure fluids and heavy assemblies carry inherent risks, follow the manual’s safety precautions and seek qualified assistance for complex hydraulic work.
Cylinder, Breaker, and Engine Service Scope
Hydraulic-cylinder procedures cover internal components, packings, piston rings, and reassembly. Breaker coverage extends to gas-pressure checks, nitrogen charging, bushing removal, chisel replacement, and internal wear criteria.
For internal engine repair, the manual refers to the separate Komatsu 84 Series Engine Shop Manual, which is not included in this PDF.
Maintenance references provide standard fastener torques, fluid capacities, assembly clearances, and wear limits. Component tables cover swing-circle bearings, pump wear, control-valve springs, and work-equipment pins and bushings.
Cooling Capacity and Swing-Bearing Clearance: Selected Examples
The fluid-capacity tables specify a 4.8-liter cooling system for PC25-1.
For the swing-circle bearing on all four models, the maintenance standard lists axial clearance of 0.1–0.3 mm and a clearance limit of 0.4 mm.
