1998–2000 Suzuki Intruder VL1500 Service Manual PDF (P/N 99500-39162-03E)

This Suzuki factory service manual covers the 1998–2000 Intruder VL1500, including VL1500W, VL1500X, and VL1500Y variants. P/N 99500-39162-03E identifies the manual on its original cover, dated January 1998. An integrated VL1500X/Y section documents changes to the base model.

PDF Access, Diagram Detail, and Page Count

Search, bookmarks, and wiring labels: PDF text search is not available. Embedded bookmarks cover sections and individual pages, but use file-name labels; one entry has no working destination. Small wiring labels require zooming, and some fine wire-color codes remain blurred.

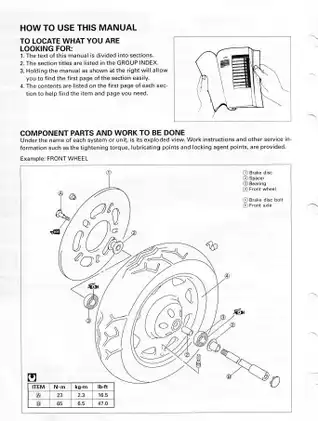

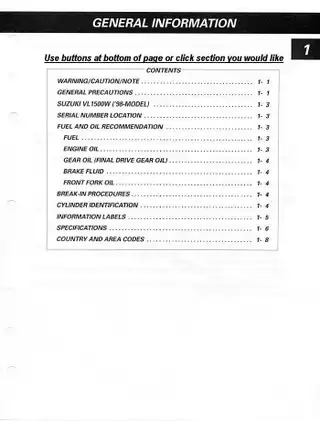

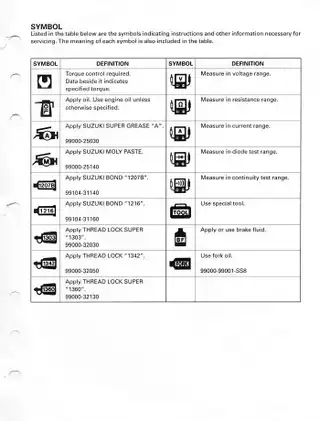

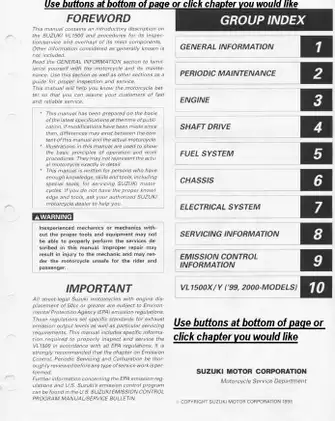

Supplied as one printable, English-language, 409-page PDF. The total comprises a 387-page base portion, including four opening pages and an unnumbered engine illustration, plus the 22-page VL1500X/Y update section. These pages are already included in the total.

Engine Overhaul, Shaft Drive, and Electrical Diagnosis

The following selected coverage highlights are not a complete contents list. Other topics include tubeless-tire service and fuel-pump delivery testing.

• Engine repair: Engine removal, crankcase separation, cylinder-head and piston inspection, camshaft timing, hydraulic lash-adjuster service, and crankshaft bearing selection.

• Clutch and transmission: Clutch-pack inspection, back-torque limiter assembly, gearshift linkage service, transmission disassembly, and shift-fork clearance checks.

• Shaft drive: Secondary and final bevel-gear inspection, shim selection, backlash measurement, tooth-contact checks, and final-drive reassembly.

• Fuel and emissions: Mikuni BDSR36 carburetor overhaul and synchronization, throttle-position sensor checks, PAIR air-supply inspection, and California evaporative-emissions procedures.

• Brakes and chassis: Front-fork rebuilds, steering-bearing service, swingarm and suspension-linkage inspection, brake-caliper repair, and hydraulic clutch service.

• Electrical troubleshooting: Charging-system tests, starter and automatic decompression diagnosis, ignition checks, side-stand interlock testing, and market-specific wiring diagrams.

Written for people with the knowledge, skills, and tools—including special tools—needed to service Suzuki motorcycles, this manual assumes familiarity with workshop practices.

Engine Service and Internal Inspection

The manual walks through periodic maintenance and complete engine teardown, with exploded component views, tightening-torque tables, and inspection limits. Its list of components removable with the engine in place helps you determine whether a planned repair requires engine removal.

Cylinder-head coverage extends to valve-guide replacement, valve-seat servicing, camshaft-journal inspection, and hydraulic lash-adjuster bleeding with tool 09913-10740. The lash-adjuster cautions explain how using the wrong bleeding fluid can cause engine damage.

The lubrication section covers the oil cooler, pressure regulator, and oil jets. The Engine Lubrication System Chart and Cylinder Head Cooling System Chart explain oil flow through the SACS system.

Transmission and Bevel-Gear Work

Transmission cross-sectional views show the positions of gears, bushings, washers, and circlips. Separate procedures address the gearshift linkage, clutch drive and driven cams, and crankshaft thrust-shim selection.

Shaft-drive coverage goes beyond oil changes: step-by-step procedures address gearcase disassembly, bearing replacement, and shim adjustment. Backlash measurements and tooth-contact illustrations support assessment of gear engagement after assembly. The secondary driven bevel-gear assembly is treated as a replacement unit rather than an internally rebuildable component.

Carburetors and Emission-Control Variants

Step-by-step instructions cover carburetor disassembly, cleaning, float-height adjustment, and synchronization, including calibration of carburetor balancer 09913-13121. Country-code tables and carburetor identification numbers distinguish regional settings.

The carburetor cautions identify diaphragm damage caused by compressed air during disassembly. Emissions coverage includes PAIR control-valve testing and California canister-hose routing; the VL1500X/Y section adds carburetor surge-control valve tests.

Brake, Suspension, and Model Updates

Front-fork procedures cover seals, sliding bushings, damper components, and oil-level measurement. Brake and clutch hydraulic sections include master-cylinder inspection, seal replacement, and bleeding. Rear-suspension coverage includes linkage bearings and spring-preload adjustment; the rear shock absorber itself is identified as non-serviceable.

The VL1500X/Y section is used with the base chapters. It supplies revised brake details, fuel-gauge and speedometer tests, wiring diagrams, and hose-routing information, including a VL1500Y rear-brake routing illustration.

Brake and internal-engine work requires appropriate mechanical skills, equipment, and attention to the manual’s safety precautions.

Starting, Charging, and Ignition Faults

Electrical flowcharts distinguish starter-motor faults from automatic decompression, relay, and interlock problems. Charging-system checks cover current leakage, generator output, and the regulator/rectifier; ignition diagnosis includes peak-voltage measurements and MAP-sensor testing.

The Automatic De-compression System and Starter System circuit diagram, electrical component-location views, and wire, cable, and hose-routing drawings connect those tests to the installed components.

Examples of Engine Test and Assembly Specifications

Compression-test data lists a standard 1,000–1,400 kPa (142–199 psi) with the engine warm, throttle fully open, battery fully charged, and automatic decompression correctly adjusted and operating. Oil pressure is specified above 350 kPa (50 psi) and below 650 kPa (92 psi) at 3,000 rpm with oil at 60°C (140°F).

The lash-adjuster inspection specifies a 0–0.5 mm plunger stroke after filling with fresh kerosene and bleeding. Generator-rotor installation data gives a bolt torque of 160 N·m, together with threadlocker and assembly precautions.
