Kawasaki STX-12F Jet Ski Service Manual, 2005 (P/N 99924-1341-01)

Kawasaki service manual P/N 99924-1341-01 covers the 2005 STX-12F, model JT1200-D1, identified as JT1200D in the foreword.

PDF Search, Bookmarks and Wiring Detail

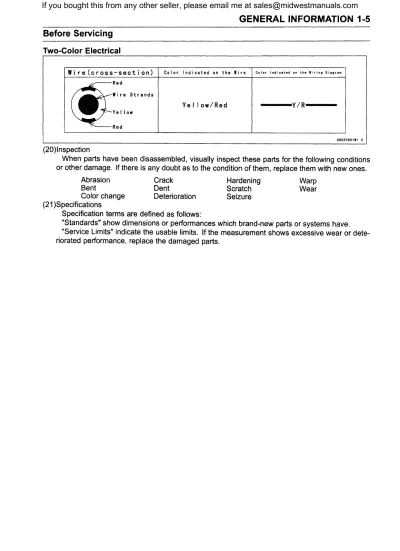

Text navigation and diagram labels: The written chapters support text search, and embedded bookmarks provide access to chapters, procedures and specifications. Labels within the DFI and main wiring diagrams are not searchable. Small wire-color codes and terminal numbers in these diagrams are readable when enlarged.

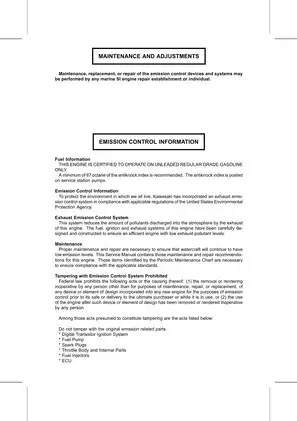

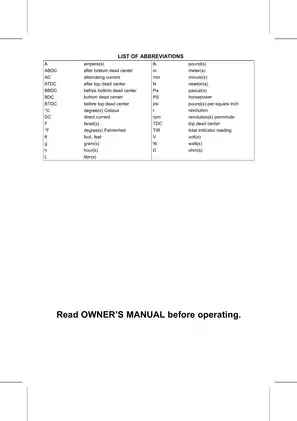

One printable, English-language 431-page PDF, including seven opening pages, ten additional blank pages between chapters, and the final model-application page.

Engine, DFI and Jet-Pump Service

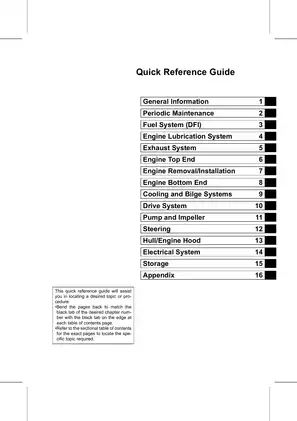

These selected repair topics outline the manual’s coverage rather than reproduce its full contents. Other sections include Hull/Engine Hood fittings, hull replacement, and bumper and rivet service.

• Engine repair: Step-by-step procedures for engine removal, camshaft timing, cylinder-head and valve-seat repair, piston inspection, crankcase separation, and crankshaft service.

• DFI diagnosis: Self-diagnosis service-code tables, sensor-circuit checks, injector tests, fuel-pressure and fuel-flow testing, and Kawasaki Diagnostic System support.

• Lubrication service: Oil and filter changes, oil-cooler disassembly, oil-pump inspection, pressure-relief-valve checks, and oil-pressure measurement.

• Cooling and exhaust: Cooling and bilge flushing, hose and filter service, exhaust-manifold inspection, left water-box muffler service, and after-submerging recovery.

• Pump and drive system: Pump removal and rebuilding, bearing and seal service, impeller installation, drive-shaft inspection, and coupling alignment.

• Steering and reverse: Cable adjustment and replacement, steering-holder service, reverse-bucket removal, and shift-lever-shaft installation.

• Electrical diagnosis: Starter-motor overhaul, charging and ignition tests, multifunction-meter and SLO checks, wiring diagrams, and Kawasaki Smart Steering sensor tests.

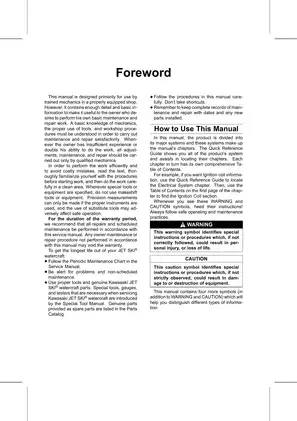

Written primarily for trained mechanics in a properly equipped shop, this manual also supports owners performing basic maintenance and repair who understand mechanical fundamentals, tools and workshop procedures.

Engine Inspection and Maintenance

Service planning: The periodic-maintenance chart separates initial service from recurring hour-based work and annual requirements where specified. Cooling-system flushing after saltwater use is specifically addressed.

The semi-dry-sump lubrication section distinguishes cold and hot oil-level checks, oil-change capacities and completely dry filling. The Engine Oil Flow Chart accompanies component service information and oil-pressure test specifications.

Internal inspection: Cylinder-compression diagnosis connects abnormal readings with valve seating, head-gasket leakage and piston/cylinder wear. Crankshaft and connecting-rod bearing-selection charts match bore and journal markings with color-coded inserts and part numbers.

The assembly cautions explain how incorrect engine-damper shim placement can misalign the drive shaft, while adding shim stock beneath valve shims or grinding them can cause major engine damage.

DFI Fault Isolation and Test Equipment

The Mitsubishi Electric ECU provides current fault indications through the multifunction meter; stored service-code history requires Kawasaki Diagnostic System (KDS) access. ECU power-supply checks and fail-safe explanations help distinguish circuit faults from component faults before replacement.

Coverage addresses throttle, inlet-air pressure and temperature, water-temperature, crankshaft, camshaft-position and vehicle-down sensors. Injector and ignition-coil circuits are covered alongside oil-pressure, oil-temperature, engine-overheat and engine-oil-overheat faults.

The Fuel System Diagram, DFI System Wiring Diagram and Terminal Numbers of ECU Connectors support hose tracing and electrical testing. Throttle-body coverage includes cleaning and ISC (Idle Speed Controller) service; the manual warns against disassembling or adjusting the factory-set air screw and throttle linkage.

Fuel-line procedures identify the double spring clamps as nonreusable because reuse can cause fuel leakage.

Jet-Pump Performance and Submersion Recovery

Pump inspection distinguishes impeller wear from pump-case wear and excessive running clearance. This supports diagnosis of poor propulsion when the engine itself runs properly.

The Cooling and Bilge System Flow Diagram shows the relationship between cooling-water, exhaust-water and bilge paths. The after-submerging section contains both summary and detailed recovery procedures specific to the four-stroke engine, whose recovery requirements differ from those of a two-stroke.

Storage instructions cover winter preparation and return-to-service checks. The Appendix adds symptom-based troubleshooting and cable, wire and hose routing.

Electrical Tests and Workshop References

Electrical coverage includes regulator/rectifier and alternator tests, ignition-coil and sensor measurements, relay and fuse checks, and steering-position-sensor clearance and voltage tests. The main Electrical System Wiring Diagram complements the individual circuit illustrations.

Specified tools: KDS Software Version 2.2 57001-1503 and Signal Converter 57001-1504 are identified for diagnostic work. Fuel and electrical tests reference Needle Adapter Set 57001-1457 and Fuel Pressure Gauge Adapter 57001-1463.

Mechanical references include Shaft Wrench 57001-1551, Impeller Holder 57001-1393, and the owner’s 16 mm spark-plug wrench 92110-1145. Exploded views, torque and locking-agent tables, service limits and component-location views support model-specific repair work.

Publication scope: Spare-parts listings belong to the separate Parts Catalog. The foreword also references a separate Special Tool Manual, although repair chapters identify many required tools directly.

Working on marine fuel systems and electrical/ignition components carries inherent risks; the service manual calls for proper ventilation, battery isolation, control of residual fuel pressure, and cooling-water supply during running tests.

A Preview of Valve, Fuel-Pressure and Impeller Specifications

Cold-engine valve-clearance standards are 0.15–0.24 mm intake and 0.22–0.31 mm exhaust, supported by separate inlet and exhaust shim-selection charts.

Fuel-pressure testing specifies approximately 294 kPa (43 psi) at idle. Jet-pump inspection gives a standard impeller-to-case clearance of 0.15–0.30 mm and a 0.60 mm service limit.
