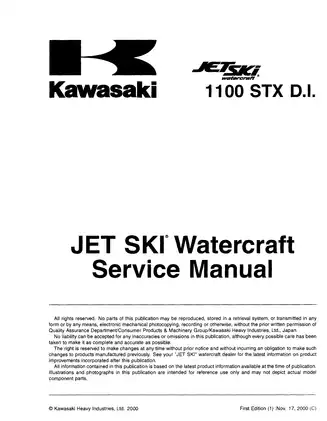

2001 Kawasaki 1100 STX DI Jet Ski Service Manual (P/N 99924-1256-02)

This Kawasaki workshop manual for the 2001 1100 STX DI contains JT1100-C1 base coverage and the JT1100-F1 supplement, plus the 900 STX (JT900-C1) supplement. The main manual is P/N 99924-1256-02, marked First Edition, November 17, 2000; the 900 STX supplement is P/N 99924-1264-51.

The download is one 427-page PDF in English, with both supplements included.

• FICHT fuel injection: Fuel-pressure and flow tests, throttle-position sensor adjustment, injector static/dynamic tests, KADIAG diagnostics and EMM replacement procedures.

• Engine repair and lubrication: Engine removal and installation, top-end inspection, crankcase splitting, crankshaft checks, oil-pump bleeding and output testing.

• Cooling and exhaust: Cooling and bilge-system cleaning, hose inspections, expansion chamber, exhaust manifold, water-box muffler and resonator service.

• Drive, pump and steering: Drive-shaft holder repair, pump disassembly and assembly, impeller wear checks, steering-cable adjustment and reverse-bucket service.

• Electrical troubleshooting: Wiring diagrams, ignition and charging tests, starter-motor overhaul, sensor checks and multifunction-meter diagnosis.

• Variant-specific service: JT1100-F1 Kawasaki Smart Steering tests and 900 STX Keihin CDCV carburetor repair, synchronization and float-arm adjustment.

Written primarily for trained mechanics in equipped shops, the manual also supports owners with basic mechanical knowledge performing basic maintenance and repair.

FICHT DFI, KADIAG and EMM Diagnosis

The fuel-injection chapters explain stratified-charge combustion, ignition timing and EMM (Engine Management Module) operation. A Service Code Chart and Flow Chart of Diagnosis connect warning indications with circuit and component checks, helping narrow a fault before an EMM or injector is replaced. S.L.O.W. activation and recovery conditions are covered separately.

KADIAG coverage includes live engine monitoring, stored codes, cylinder drop tests and the transfer of engine-specific data to a replacement EMM. The diagnostic procedures call for KADIAG Software 57001-1461, Communication Cable 57001-1460, and the separate KADIAG Software Manual, P/N 99929-1412-01.

The injector replacement section explains the link between each injector's flow characteristics and EMM data. Swapping injectors between cylinders or engines can alter the fuel mixture and cause engine damage. Follow the manual's fuel-pressure and electrical safety precautions during DFI service.

JT1100-F1 and 900 STX Differences

The JT1100-F1 supplement adds revised injector installation details and Kawasaki Smart Steering operation, sensor-and-magnet installation, clearance checks and voltage tests. Its Steering Position Sensor Circuit and EMM connector pin views support diagnosis of this added steering function.

The 900 STX supplement covers Keihin CDCV 38-33 carburetors, throttle and choke cables, carburetor disassembly, high-altitude jetting and CDI ignition tests. Its Fuel System Diagram identifies supply, return, vent and pulse lines. The fuel pump is serviced as a unit; internal disassembly is excluded.

Both supplements are used with the base manual for procedures they do not repeat. Model Application tables identify the covered models by beginning hull-number patterns.

Engine, Lubrication and Jet-Pump Repair

Engine coverage extends to cylinder-head warpage, cylinder and piston inspection, piston-ring end gap, crankshaft runout and connecting-rod clearances. Crankshaft disassembly is specifically excluded because it requires specialized equipment.

Oil-injection procedures include output checks and bleeding after engine installation. Pump and drive-system sections cover bearings, seals, couplings and impeller-to-case clearance, with Impeller Wrench 57001-1228 and Impeller Holder 57001-1393 identified. The assembly notes explain how excessive pressing force can damage the impeller grease seal.

Electrical References and Hull Service

Air and water temperature sensor resistance tables sit alongside charging-system checks, ignition troubleshooting and the Battery Standard Charge Time Chart. Component torque tables cover the intake manifold, cylinder head, throttle body and injector fasteners.

Exploded views and cable, wire and hose routing drawings support assembly work. Hull/Engine Hood coverage includes hatches, bumpers, crossmember and hull replacement; periodic maintenance charts and storage procedures cover routine and seasonal service.

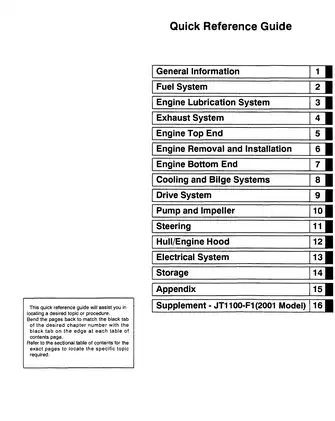

PDF Sections, Search and Navigation

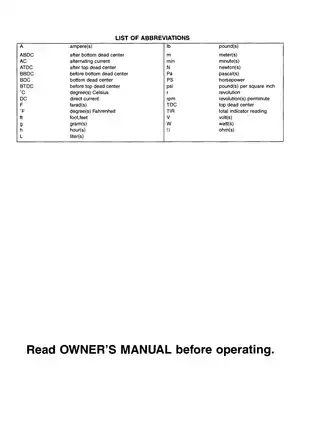

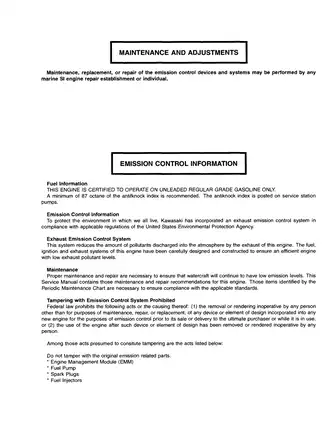

The main publication occupies 291 pages, including its 25-page JT1100-F1 supplement; the 136-page 900 STX supplement completes the 427-page file. Covers and reference pages are included in those totals. Existing OCR enables text searches, with recognition errors in places; 41 embedded bookmarks navigate the main sections and supplements, and small wiring labels require zooming.
