Toyota 52-6FGU33/35/40/45, 02-6FDU33/35/40/45, 52-6FGAU50 & 02-6FDAU50 Forklift Service Manual Set 1997
327 Pages • ZIP Download: 4 Printable PDFs (English)
Toyota Models Covered & Key Technical Specifications
Models: 52-6FGU33, 52-6FGU35, 02-6FDU33, 02-6FDU35, 52-6FGU40, 52-6FGU45, 02-6FDU40, 02-6FDU45, 52-6FGAU50, 02-6FDAU50
Sub-models / Variants: 3.25 ton model, 3.5 ton model, 4.0 ton model, 4.5 ton model, 5.0 ton model, Gasoline, Gasoline/LPG and LPG (GM6-262: 52-6FGU33/35/40/45 and 52-6FGAU50), Diesel (Toyota 13Z: 02-6FDU33/35/40/45 and 02-6FDAU50)
Model Year: 1997

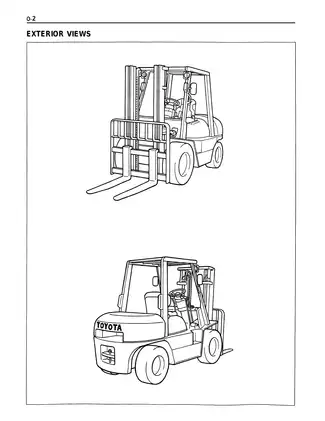

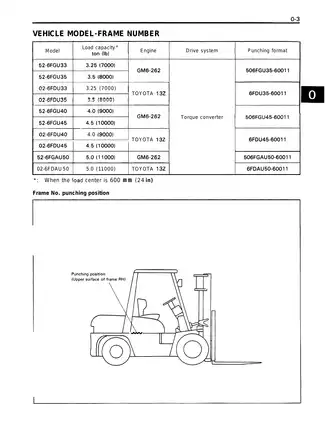

Serial / Frame numbers (stamping formats):
-
52-6FGU33 / 52-6FGU35: 506FGU35-60011
-
02-6FDU33 / 02-6FDU35: 6FDU35-60011
-
52-6FGU40 / 52-6FGU45: 506FGU45-60011
-
02-6FDU40 / 02-6FDU45: 6FDU45-60011
-
52-6FGAU50: 506FGAU50-60011
-
02-6FDAU50: 6FDAU50-60011
-
Engine displacement: 4300 cm3 (GM6-262), 4616 cm3 (13Z)
-
Horsepower: 91 PS (GM6-262 gasoline), 83 PS (GM6-262 gasoline/LPG or LPG), 85 PS (13Z diesel)
-
Transmission type: Torque converter (MT15, all models)
-
Fuel capacity: 95 liters (25.1 US gal) for 3.25–3.5 ton models; 120 liters (31.7 US gal) for 4.0–5.0 ton models
-
Engine oil capacity: 4.2 liters (1.11 US gal) for GM6-262
-
Wheel alignment: 0° rear-wheel camber
Toyota Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Toyota Motor Corporation workshop manual, covering the 52-6FGU33/35/40/45, 02-6FDU33/35/40/45, 52-6FGAU50, and 02-6FDAU50 as of March 1997 | 303 + 8 in a separate copy of the wiring appendix |
| Wiring diagrams for the 52-6FGCU33, 52-6FGCU35, and 52-6FGCU45 | 6 |
| Wiring diagrams for the 6FG10–30 and 6FD10–30 | 10 |
Use the workshop manual for repair procedures and its wiring appendix to trace circuits on the same forklifts. The two other model families are covered for wiring only.
For detailed engine repair, Toyota refers technicians to the separate GM6-262 engine manual (No. C4630) and the 11Z/12Z/13Z/14Z engine manual (No. C4615). Both are outside this download.
Chapter Bookmarks and Wiring PDFs
Text search and diagram detail: The workshop PDF has OCR text and chapter bookmarks. Some tables, illustrations, and wiring labels are outside the searchable text. The three wiring PDFs have no text search or bookmarks. Small schematic labels generally need zooming, and some diagram pages need rotation.

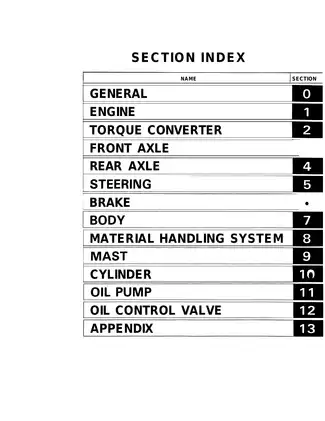

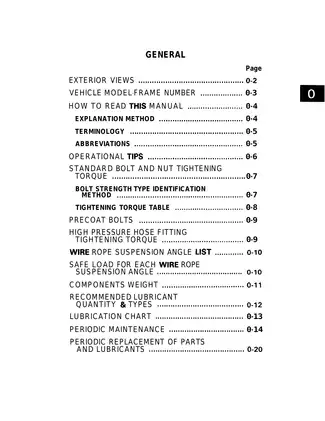

The ZIP contains 327 pages across four printable English PDFs. The workshop PDF includes its foreword, section index, one blank divider page, and eight wiring pages. Those eight diagrams also come in a separate PDF, and the 6FG10–30/6FD10–30 file includes its own wiring index.
Engine, Drivetrain, Mast, and Hydraulic Service
These selected workshop topics show the repair and diagnostic coverage. The manual also includes counterweight removal and fuel sender inspection.
-
Engine and governor: Engine removal and installation, speed adjustment, electronic governor fault codes, sensor tests, and throttle-switch adjustment.
-
Torque converter and transmission: MT15 converter repair, F1/R and F2 clutch overhaul, control-valve service, hydraulic pressure checks, and stall testing.
-
Axles, steering, and brakes: Planetary front-axle service, rear-axle and steering-valve overhaul, brake shoe replacement, booster repair, and brake bleeding.
-
Masts and cylinders: V, FV, and FSV mast adjustment, lift-cylinder repacking, tilt-cylinder overhaul, chain inspection, and correction of uneven lifting.
-
Hydraulics: Tandem gear-pump overhaul, lift and tilt drift testing, flow regulator and safety down valve service, and relief-pressure adjustment.
-
Electrical references: Configuration-specific wiring diagrams, governor diagnostic flowcharts, component circuit tests, and electrical service standards.
The manual is suited to forklift mechanics familiar with hydraulic testing and component overhaul who have access to the measuring equipment and special service tools specified in the procedures.
Engine Service and Governor Diagnostics
Gasoline and dual-fuel GM6-262 configurations use an electronic governor. LPG-only configurations use an air governor. The electronic governor flowcharts link CHECK-lamp flash codes to tests for the accelerator sensor, throttle switches, stepping motor, ignition relay, and alternator. They help distinguish wiring and sensor faults from controller faults before parts are replaced.
Engine service includes 13Z fuel-line bleeding, air-cleaner inspection, radiator specifications, fan-drive service, and starter and alternator removal and installation. The accelerator sensor test flags the risk of damaging the gold-plated terminals.
Drivetrain, Steering, and Brake Repair
Step-by-step procedures cover F1/R and F2 clutch disassembly, inspection, and reassembly. The transmission section also covers the cover and control-valve assembly, stator shaft, oil pump, and clutch-pack clearances. Front-axle procedures cover differential backlash, bearing preload, and gear contact. Final-drive ratios differ by capacity group.
The Danfoss OSPC-160-ON steering valve has dedicated troubleshooting, seal installation, and relief-pressure checks. The brake section distinguishes booster specifications by capacity group and covers the foot-brake circuit, automatic shoe adjusters, parking-brake linkage, and brake and inching pedal adjustment.
Mast Adjustment and Hydraulic Fault Isolation
V, FV, and FSV mast procedures distinguish roller selection and lift-bracket adjustment by capacity group. Lift-cylinder rod shimming addresses uneven lifting on twin-cylinder assemblies after mast or cylinder component replacement. The tool list identifies inner mast stopper 09610-22000-71 and chain wear scale 09631-22000-71.
Natural-drop, forward-tilt, and oil-leak tests help separate control-valve leakage from cylinder-packing or tilt-lock faults. The hydraulic chapter includes the SDY (SGP2 + YP15) tandem gear pump, engine-specific pump output, hydraulic circuit diagrams, and lift-cylinder section views.
The relief-valve section flags pump and component damage from excessive pressure. Follow the factory safety precautions for suspended masts, high-pressure hydraulic lines, and electrical servicing.
Wiring Variants and Workshop Reference Data
The main wiring appendix distinguishes gasoline, gasoline/LPG, and LPG configurations for the GM6-262 and 12 V and 24 V configurations for the 13Z. The governor system circuit and torque converter hydraulic circuit support their respective troubleshooting sections.
Workshop references include component weights, lubrication charts, and periodic maintenance schedules. Exploded views and service tables cover wear limits, fluid capacities, and torque specifications for flexible-plate bolts, engine mounts, and high-pressure hose fittings.
Sample Transmission Pressures and Fork Inspection Limits
For the MT15 across the covered workshop models, the manual specifies 780–1,180 kPa (114–171 psi) for clutch operating pressure and 78–390 kPa (11–57 psi) at the converter outlet. Both figures apply to the warm-engine check at 1,500 rpm with the inching pedal released.
The V-mast fork inspection lists a fork-tip misalignment limit of 10 mm (0.4 in). The inspection section links excessive misalignment to checks for blade bend, mounting looseness, and lift-bracket distortion.
