Toyota 5FBE10, 5FBE13, 5FBE15, 5FBE18, 5FBE20 Electric Forklift Service Manual, 1993–1999

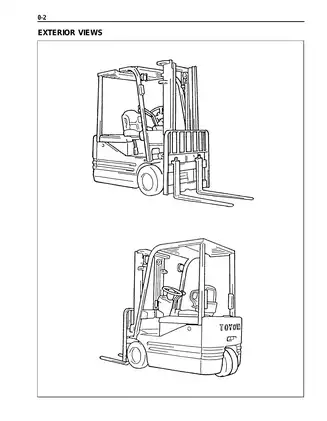

This Toyota service manual covers 5FBE10, 5FBE13, 5FBE15, 5FBE18, and 5FBE20 electric forklifts, including standard and 45S refrigerator specifications. The September 1998 foreword is accompanied by later revised sections.

Text Search, Bookmarks, and Wiring Detail

Search and diagram navigation: Text search is available through much of the manual, but some drawing pages and connector tables have no searchable text. Embedded bookmarks open the main sections. Small wiring-diagram labels require zooming.

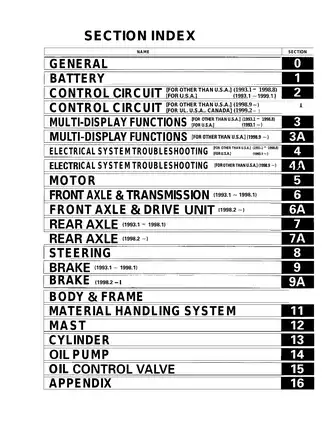

One printable English PDF contains 734 pages total, including the foreword and section index (2 pages) and the service-data and wiring appendix (66 pages). Revised sections are included in the same file.

Electric Drive, Mast, and Hydraulic Repairs

Selected coverage: These highlights show a selection of the manual’s repair and diagnostic content. Additional topics include body-frame service and combination-meter removal and disassembly.

• Controller diagnosis: MCS-IIIA inspection, self-diagnosis, and analyzer functions, with separate coverage for earlier SIT and later MOSFET control systems.

• Electric motors: Drive, hydraulic pump, and power steering motor removal, disassembly, brush inspection, commutator service, and insulation testing.

• Axles and steering: Front axle, transmission, and later drive-unit disassembly and bearing preload adjustment, plus rear axle and hydrostatic steering valve repair.

• Brakes: Disc brake and master-cylinder overhaul, parking-brake adjustment, hydraulic bleeding, and braking-force inspection.

• Masts and chains: V, SV, FV, and FSV mast roller and mast-strip adjustment, chain inspection, and lift-cylinder rod shimming for uneven lifting.

• Hydraulic service: Pump and oil control valve disassembly, relief-pressure adjustment, and natural drop, forward tilt, and oil-leak tests.

• Electrical references: Production-specific wiring and connection diagrams, harness-side connector drawings, analyzer test maps, and component inspection specifications.

It is suited to forklift mechanics proficient with electrical test instruments and wiring diagrams, as the electrical troubleshooting sections expressly assume those skills.

Production Changes and Controller Variants

Coverage distinguishes the January 1994 mast and lift-cylinder changes and the February 1998 axle, drive-unit, and brake changes. Separate procedures address master cylinders from April 2000 and lift brackets from June 2000, including configurations with and without side rollers.

Controller chapters separate non-U.S. specifications at September 1998 and UL/U.S./Canada specifications at February 1999. The frame numbers in the model box identify the MOSFET changeover; earlier SIT procedures are also included. These distinctions help mechanics choose the tests and component procedures that match the truck.

Standard material handling circuits are covered alongside the optional pump chopper, with separate testing for conventional power steering and EHPS.

Electrical Diagnosis and Controller Repair

Troubleshooting covers faults with and without a displayed error code, including no travel, poor acceleration, excessive switchback braking, and a pump motor that will not run. The diagnostic charts connect these symptoms to terminal measurements and component checks for separating wiring faults from controller or motor faults.

Analyzer functions include stored fault history with hour-meter readings, live sensor monitoring, contactor checks, and tests for intermittent open circuits and shorts.

The mask-function sections explain controller tuning, tire-diameter correction, and option settings after display-board replacement. Accelerator potentiometer, brake-switch, and material handling switch adjustments are documented separately.

Board-testing references identify the 09240-12240-71 check sub-harness and 09240-23400-71 IC clip for their respective controller versions. The controller repair notes warn that loose cable connections can damage control-panel components.

Battery, Mast, and Hydraulic Service

Battery coverage includes compartment dimensions and required battery weight, GS and YUASA electrolyte-level checks, specific-gravity testing, and overdischarge protection.

Fork inspection covers bending and tip misalignment. Chain elongation checks use the specified 09631-22000-71 wear scale.

The hydraulic chapters cover DGP4-16C gear pumps for 5FBE10/13/15 and DGP4-14C pumps for 5FBE18/20, plus TCP-031-C steering pump removal and installation. Step-by-step procedures address pump and oil control valve disassembly and reassembly.

Lift and tilt cylinder repair includes seal replacement, rod and bore inspection, and checks after installation. Tilt-cylinder reassembly notes explain how the piston rod’s threaded section can damage sealing parts.

Wiring Diagrams and Service References

U.S. and non-U.S. wiring diagrams are divided by production period. The CPU Board & DC/SD Board Connector Drawing identifies harness-side terminals, while the Simple Test Function Map organizes analyzer checks. The Hydraulic Circuit drawing and Oil Control Valve Sectional View support hydraulic diagnosis and valve repair.

Reference tables provide component-specific tightening torques, electrical test values, wear limits, fluid capacities, and adjustment specifications. Lubricant data distinguishes standard and refrigerator-specification trucks, including the February 1998 brake-fluid change for 45S models. Component weights, lifting information, and periodic maintenance schedules are included.

Work on electric forklifts and heavy lifting equipment requires the manual’s safety precautions for electrical isolation, stored capacitor energy, hydraulic pressure, and secure support.

Selected Battery Inspection Values

The battery inspection section specifies electrolyte specific gravity of 1.280 when fully charged and 1.150 when fully discharged, both referenced to 20°C. A temperature-correction equation accompanies the hydrometer inspection information.

For the battery-to-case insulation check, the specified resistance is at least 1 MΩ. These values illustrate the battery test data included alongside the inspection procedures.
