Toyota 5FB10, 5FB14, 5FB15, 5FB18, 5FB20, 5FB25, 5FB30 1994- Forklift Service Manual (OEM)

• Covers Toyota 5FB10, 5FB14, 5FB15, 5FB18, 5FB20, 5FB25, and 5FB30 electric forklifts, including the corresponding 30-prefix dustproof models, with MCS-II microcomputer control

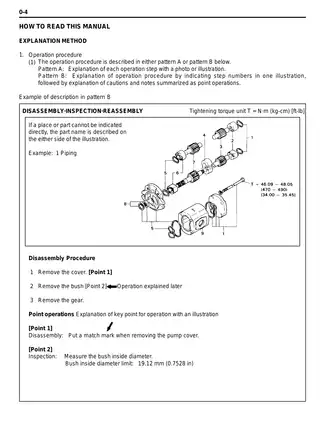

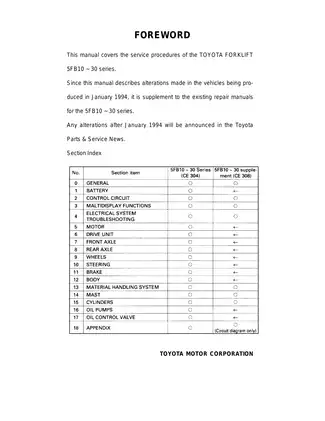

• Toyota factory supplement CE 308, documenting the production alterations introduced in January 1994 and intended for use with the existing 5FB10–30 repair manual CE 304
• 262-page PDF with a 40-entry multidisplay diagnostic error-code list, MCS-II analyzer functions, controller test data, connector drawings, connecting diagrams, and wiring information
• Covers both the electrical-control changes and the updated material-handling sections for V, SV, FV, and FSV mast systems, lift cylinders, tilt cylinders, chains, forks, flow regulator valves, and safety down valves

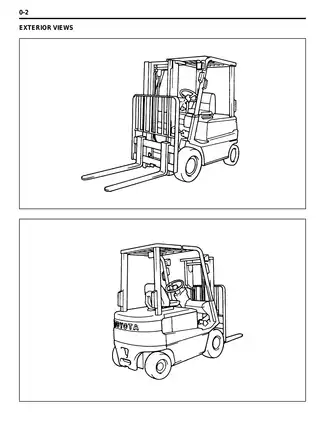

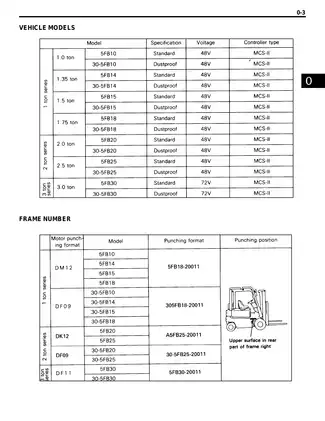

This factory supplement documents the January 1994 change level rather than making a blanket claim for every later 5FB-series production build. Toyota specifies that subsequent alterations are handled through Parts & Service News. The vehicle identification section separates standard and dustproof configurations and shows the electrical split clearly: 5FB10 through 5FB25 models use 48V systems, while the 5FB30 uses 72V.

A major part of the update is the revised MCS-II control panel. Toyota notes that the earlier MP contactor arrangement was changed and the MB power-supply contactor installed in the control panel. Specifications identify the associated TM and TMP main transistors, TG regenerative transistor, DF1/DF2/DF3 flywheel diodes, DG regenerative diode, DAD/DAP absorber diodes, CAD/CAP/CO capacitors, regenerative and absorber resistors, current sensors, and MF/MR/MG/MB contactors. This level of component identification matters when repair decisions involve the controller itself rather than a simple external wiring fault.

MCS-II Diagnosis and Electrical Testing

The multidisplay section covers self-diagnosis, analyzer operation, stored-error history, switch-input tests, and live test operation. The diagnostic list identifies faults such as MCS main-circuit overheat and overvoltage, CPU faults, accelerator and brake potentiometer errors, speed-sensor faults, regenerative and forward/reverse contactor faults, drive OCL abnormalities, and main material-handling circuit failures.

Analyzer coverage goes beyond reading a fault number. The manual documents 34 ESY simple-test functions, storage of the ten most recent diagnosis errors with their hour-meter readings, switch ON/OFF monitoring, momentary-interruption and short-circuit testing, and live monitoring of drive current, pump current, battery voltage, potentiometer signals, temperature, and traveling-speed sensor data. MCS-II tuning data also covers regenerative braking torque, material-handling chopper characteristics, maximum travel-speed limiting, pump power control, and lift/tilt power settings.

Controller-panel repair procedures include insulation-resistance testing, continuity checks, semiconductor checks, and connector-by-connector voltage/resistance measurement for the CPU and DC-CD boards. Toyota specifies 1 MΩ or more between the battery-plug controller wiring and the vehicle body before control-panel inspection. SST 09240-13200-71 and 09240-23400-71 are identified for CPU/DC-CD board measurements. Drive-circuit OCL specifications are also separated by capacity class: 380 ±19 A for the 1-ton series, 500 ±25 A for the 2-ton series, and 380 ±19 A for the 3-ton series.

Named electrical references include the Control Panel Internal Wiring Diagrams, CPU Board & DC-CD Board Connector Drawing, 1 Ton / 2 Ton Series Connecting Diagram, 3 Ton Series Connecting Diagram, and the final Wiring Diagram.

Mast, Cylinder, and Material-Handling Repair Coverage

The supplement also contains substantial mechanical repair material that is missing from an electrical-only description. Factory procedures cover V/SV/FV/FSV mast removal and disassembly, lift-bracket and mast-roller service, roller and mast-strip shim adjustment, chain inspection and tension adjustment, fork inspection, lift-cylinder rod shim correction for uneven lifting, lift- and tilt-cylinder overhaul, and flow-regulator and safety-down-valve service.

Several useful factory limits show the actual depth of this section. Mast roller side clearances are generally specified at 0–0.8 mm, side-roller clearance at 0–0.6 mm, and mast-strip clearance at 0.5–1.0 mm, with variant-specific values for FV and FSV assemblies. The hydraulic oil capacity is 16 L for the 1- and 2-ton series and 20 L for the 3-ton series. Hydraulic leakage testing specifies no more than 16 cc per minute at the lift port and 32 cc per minute total for the lift and tilt circuits. Lift-cylinder piston-rod bend is limited to 2.0 mm; the tilt-cylinder section gives a 70.35 mm bore limit, 29.92 mm piston-rod diameter limit, and 1.0 mm maximum rod bend.

The manual also identifies service tools such as SST 09631-22000-71 for chain elongation inspection, 09610-22000-71 for mast/lift-cylinder support work, 09810-20172-71 for mast-related pin service, 09620-10160-71 for tilt-cylinder work, and 09950-20017 for specified mast/roller operations.

There are several repair traps worth knowing before control-panel or mast work begins. Loose or incorrectly connected control-panel bars and harnesses can damage controller elements, while omitted silicone grease at specified locations can cause overheating. Installing SST 09240-23400-71 without first isolating the battery can short adjacent connector pins. On the mast, the side and number of lift-cylinder rod-end shims must be preserved during disassembly; losing that setup can reintroduce uneven cylinder stopping and mast shake.

This is not a complete replacement for the base 5FB10–30 repair manual. It is the January 1994 CE 308 supplement. Sections not revised by this publication—including major battery, motor, drive-unit, axle, steering, brake, body, and oil-pump/control-valve work—remain referenced to the existing manual. That distinction is important when deciding whether this supplement covers the specific repair planned.

Work described here involves 48V/72V traction-battery circuits, supported or hoisted mast assemblies, heavy components, and residual hydraulic pressure. Electrical isolation, secure support of the truck and mast, and release of stored hydraulic pressure are required before the applicable factory procedures are used.
